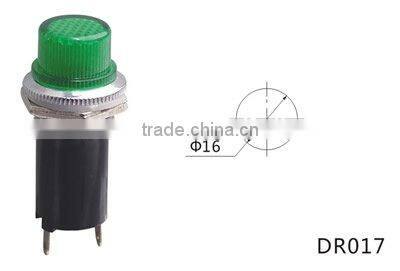

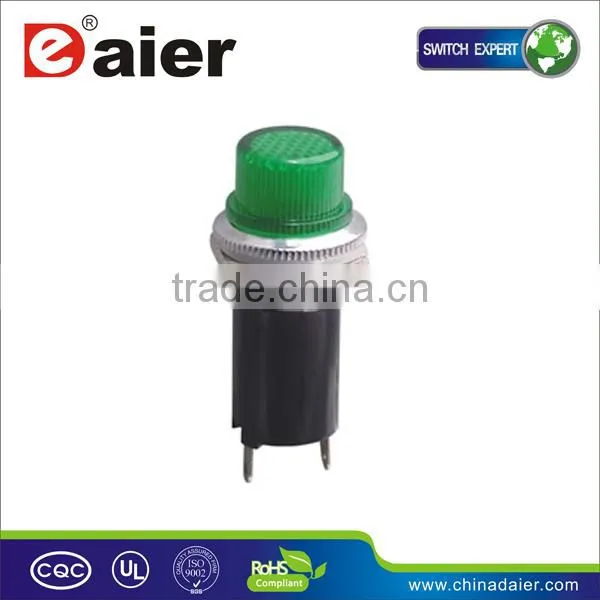

indication lamp pilot light 6.3V DR017

Specifications

indication lamp
1.High quality competitive price.
2.28 years' manufacture
3. CE,Rohs,UL,CQC
4.3v-380v

indication lamp pilot light 6.3V DR017

  indication lamp
1.High quality competitive price.
2.28 years' manufacture
3. CE,Rohs,UL,CQC
4.3v-380v

       1. Model:

               DR017  indicator light (pilot light)



        2. Features:

• Lens Material: PC;
• Lighting Source: Neon lamp, fluorescent lamp, filament lamp, LED;
• Color of lamps: R-red, Y-yellow, B-blue, G-green, O-orange, W-white;
• Volt.: 3V--380V;
• Color of Lens: Red, Orange, Blue, Green and transparent;
• Nature of supply: AC and DC;
• Rated Temp : T90;
• Life of continuous working: Typically over 30,000 hours. The end of life for a lamp is not usually a sudden failure;
• Certification: ISO9001, UL, VDENEC, CSA, TUV, CE, EMC, CQC, CCC,ROHS;
• Reasonable price and efficient services.

        3.    Main technical parameters

• Environmental Temperature: -25+55;
• Working under vibration frequency 2-80Hz,acceleration at 0.7g;
• Relative Air Humidity: ≤98%;
• Pollution rank is three grade and installation category is III;
• Protection Degree: Head IP65(OEM could be IP67);
• Voltage of working frequency: 2.5kV (AC valid value), 1min;
• Leakage Index: CT1≥100;
• Frequency: AC 50-60Hz

  Type	Equipment Indicator Lights
  Diameter	16mm
  Color	Green
  Input Voltage	220v
  Life	≥30,000h
  Brightness	≥60cd/Square Meters
  Lamp Body Material	Plastic
  Beam Angle	360°
  Colors	red green yellow white
  Certifications	Certifications ISO9001, CE, CQC, ROHS, etc.







  • Application







  They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
