Specifications
electric micro switch1. Rating:KW10-Z0P
2.1A,125/250VAC 3A ,125/250VAC
3. 30,000 cycles
4.Certification:CE,UL,CQC

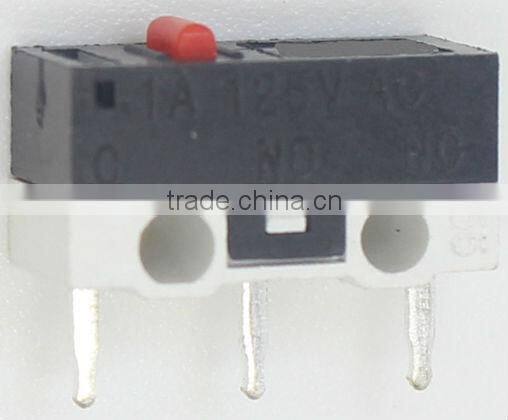

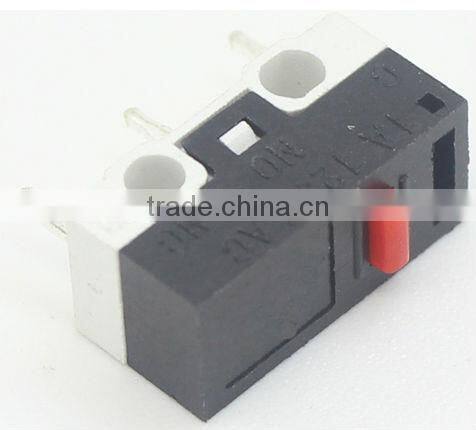

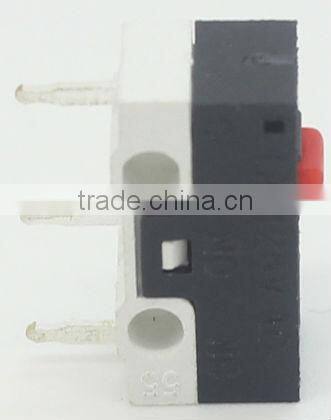

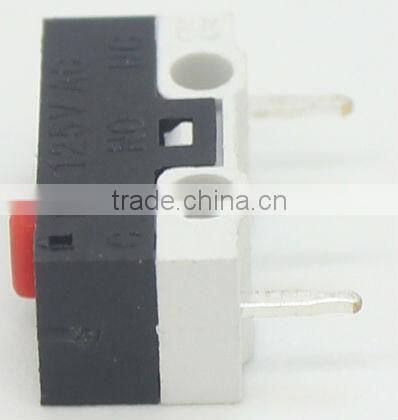

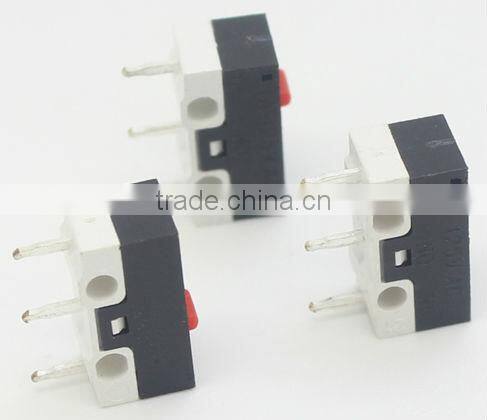

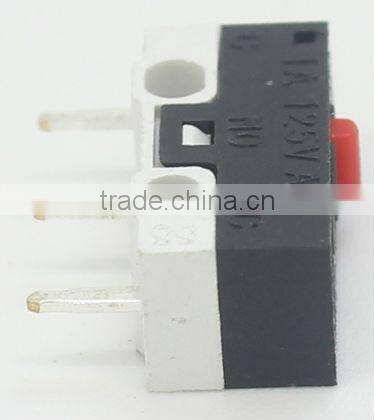

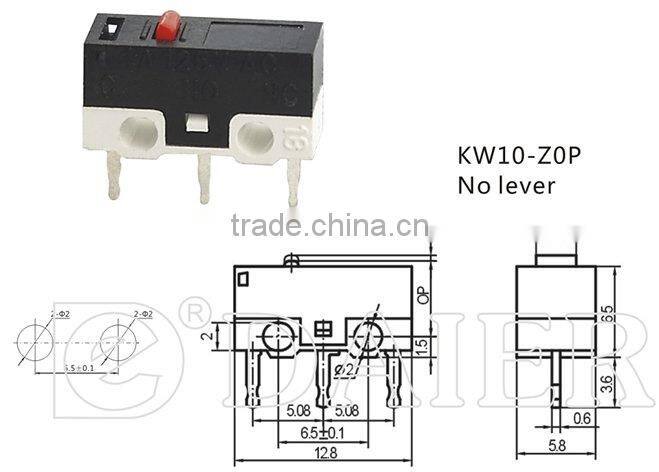

miniature electric micro switch with no lever pcb terminals,KW10-Z0P
electric micro switch
1. Rating:KW10-Z0P
2.1A,125/250VAC 3A ,125/250VAC
3. 30,000 cycles
4.Certification:CE,UL,CQC
The miniature micro switches comes with a vertical, left angle or right angle PC pin termination.
The miniature snap action switch comes with a vertical, left angle or right angle PC pin termination. The applications for the TS switch include security and detection devices, appliances, instrumentation, power tools and more.
- The Main Thchnology Performane
Item | Value | |
Operating Speed | 1mm~500mm(related with actuator forms) | |
Operating frequency | Mechanical 60cycles/min; Electrical 25cycles/min | |
Insulation resistance | ≥100MΩ(500VDC) | |
Contact resistance | OF≤0.75N:≤30mΩ OF≤0.75N:≤50 mΩ | |
Test voltage | Between terminals of the same polarity | AC 600V,50/60Hz,1min |
Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts | AC 1000V,50/60Hz,1min | |
Vibration resistance | 10~55Hz,1.5mm Double amplitude | |
Shock resistance | Malfunction:300/s² (approx.30)max | |
Life | Mechanical≥1,000,000cycles Electrical≥10,000cycles | |
Weight | Approx.0.6g( No Lever) | |
Safety approvals | CE,UL,CQC | |
Specification | |
Micro Switch | Specification |
Rating | 1A 125V AC |
Contact resistance | 30mΩ max |
Insulation resistance | 100MΩ min at250V DC |
Dielectric strength | AC 1000V for 1 min |
Lifespan | 30,000 Cycles |
Practical temperature range | -25 to 65 degrees Celsius |
[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification. | |
- Features of miniature micro switches
1. small size
2.low current
3.long mechanical and electrical life
lder terminals amd PCB terminal
- The action sensitive subminiature switch of miniature micro switch
1).Subminiature, large current. With tiny contact clearance, quick action and high sensitivity and small action travel characteristics.
2).Long life
3).Various terminal
4).Various forms of movable arm
5).Applied in household appliances, audio and video equipment, computer, office automation equipment and communication equipment, etc.
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.
