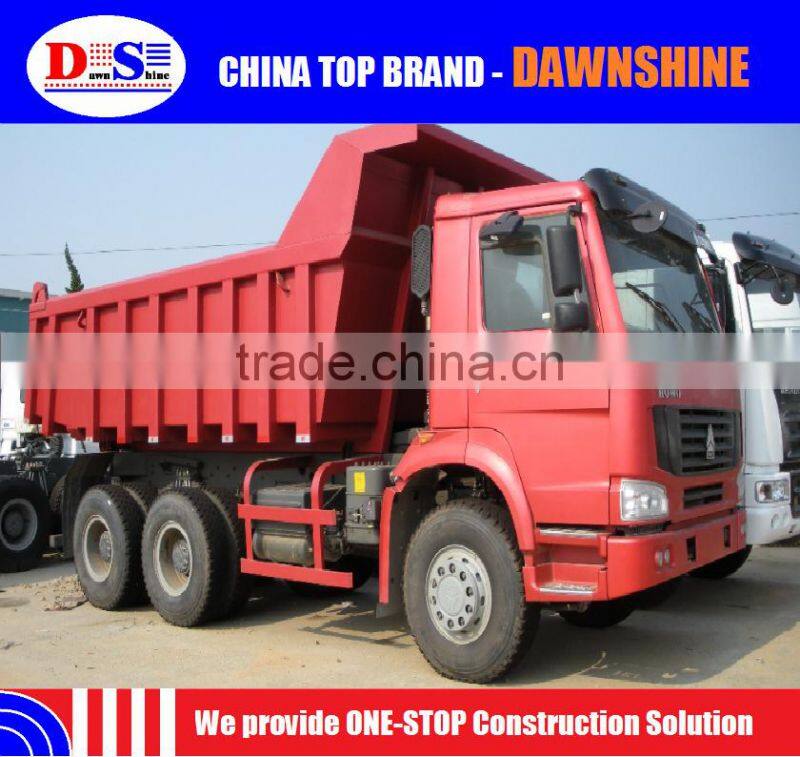

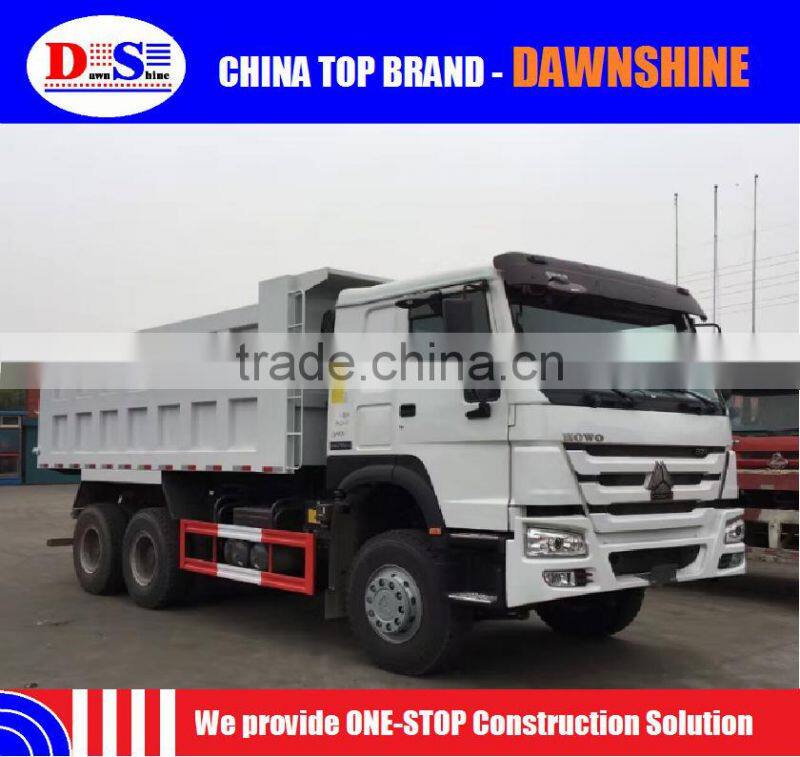

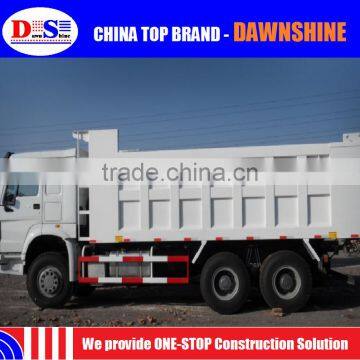

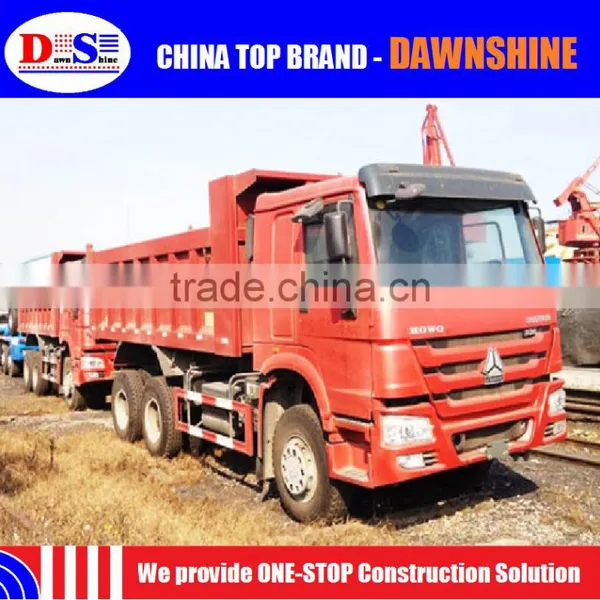

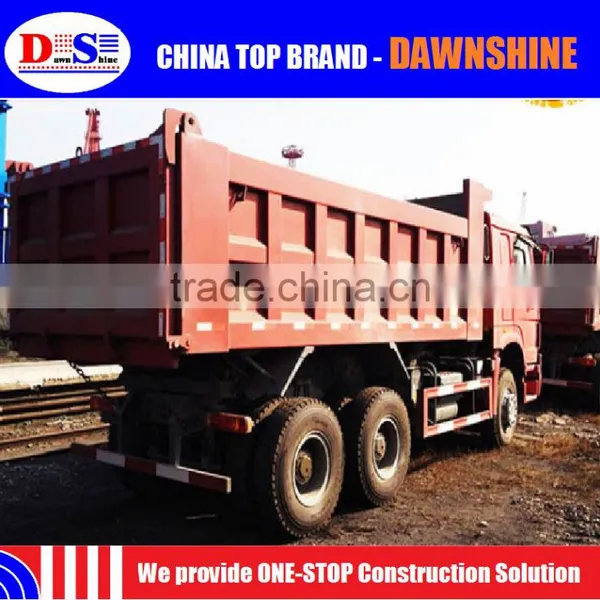

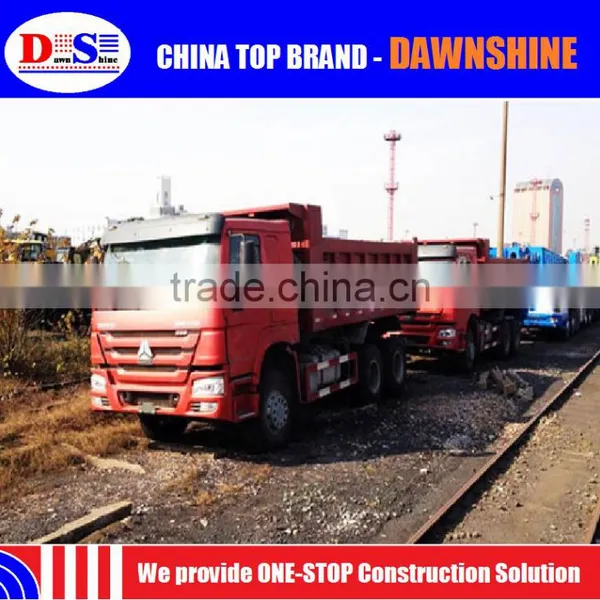

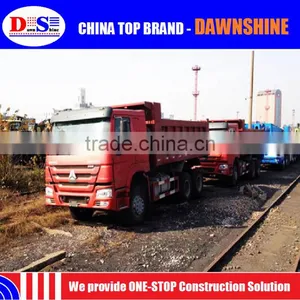

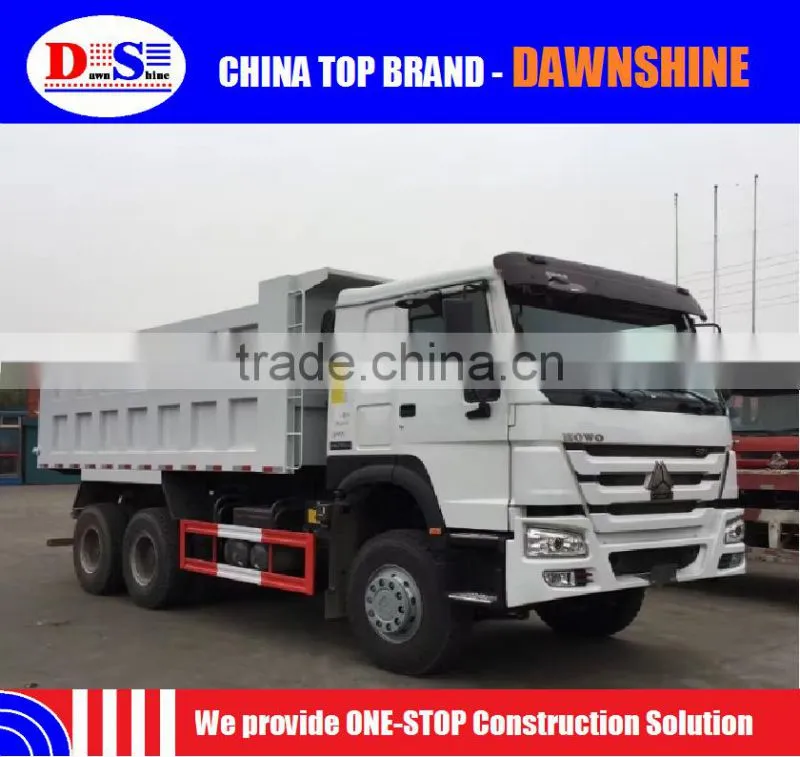

China Howo Dump Truck 20t
Truck Model |
ZZ3257N3647A(RHD is option) |
|
Truck Brand |
SINOTRUK –HOWO |
|
Dimension(Lx W xH)(unloaded) |
8214x2496x3386 |
|
Cargo body size (L*W*H, mm)(mm) |
5400x2300x1400 mm |
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm |
|
Lift type of Carriage |
Ventral lifting |
|
Approaching angle/Departure angle(°) |
19/26 |
|
Overhang(front/rear) (mm) |
1500/1739 |
|
Wheel base (mm) |
3625+1350 |
|
Max speed(km/h) |
75 |
|
Curb weight(kg) |
12290 |
|
Loading Weight(kg) |
30000 |
|
Fuel tanker capacity (L) |
300L with locking fuel cap |
|
Fuel consumption(L/100km) |
32 |
|
Cab |
HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
Clutch |
Single-plate dry clutch Φ420mm |
|
Engine(Steyr technology, made in China) |
|
WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling |
|
336HP |
|
|
EURO II |
|
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
Brake system |
Service brake |
Dual circuit compressed air brake |
Parking brake |
spring energy, compressed air operating on rear wheels |
|
Auxiliary brake |
Engine exhaust brake |
|
Steering system |
Model |
ZF8098 hydraulic steering with power assistance |
Front axle |
HF9 , Steering with double T-cross section beamLoading capacity:9000KG |
|
Rear axle |
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels |
|
Color |
Optional |
|
Tire |
12.00-20 11 pieces |
|
Electrical system |
Operating voltage |
24V,negative grounded |
Starter |
24V,7.35KW |
|
Alternator |
28V,1500W |
|
Batteries |
2*12V.165Ah |
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | ||
Cab |
HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
