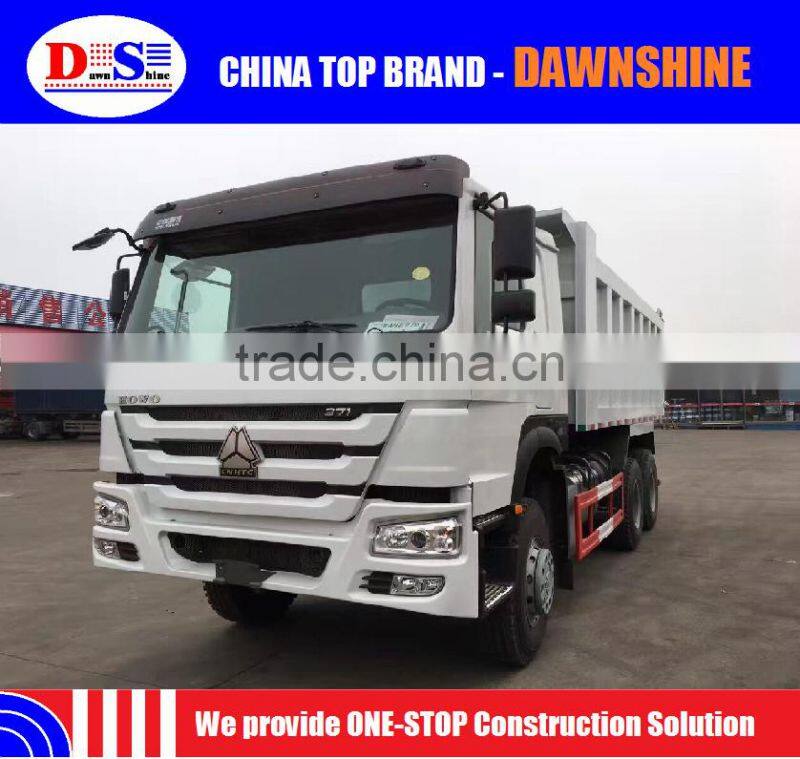

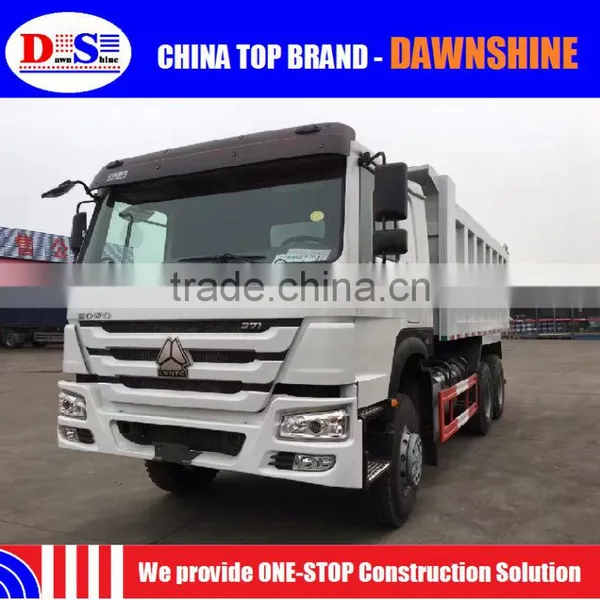

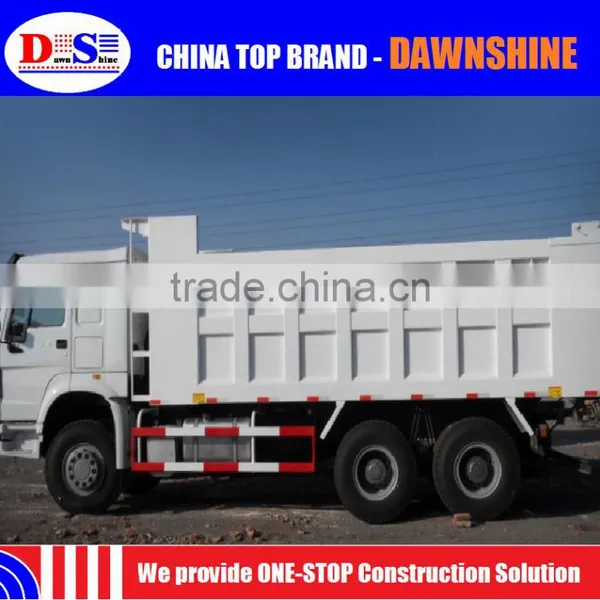

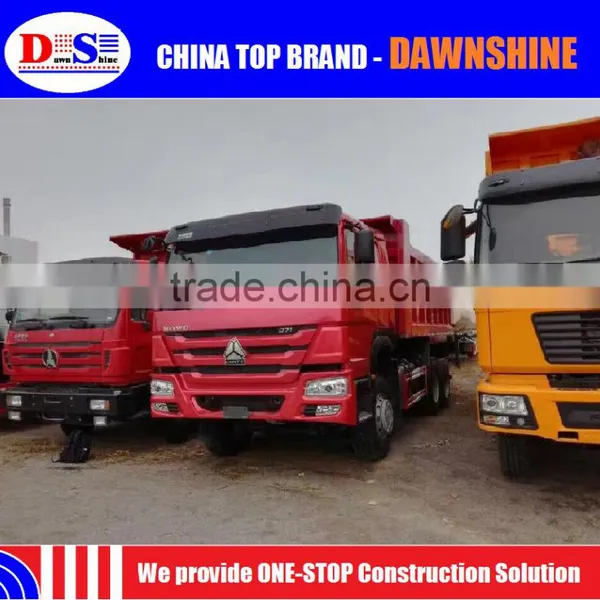

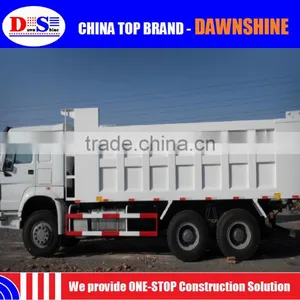

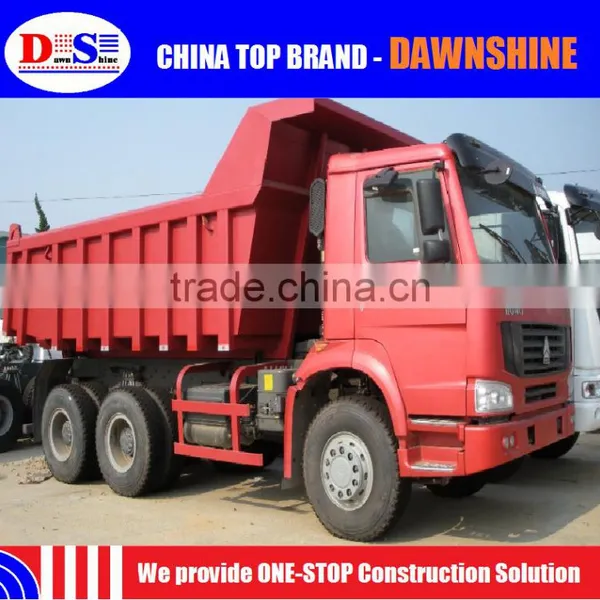

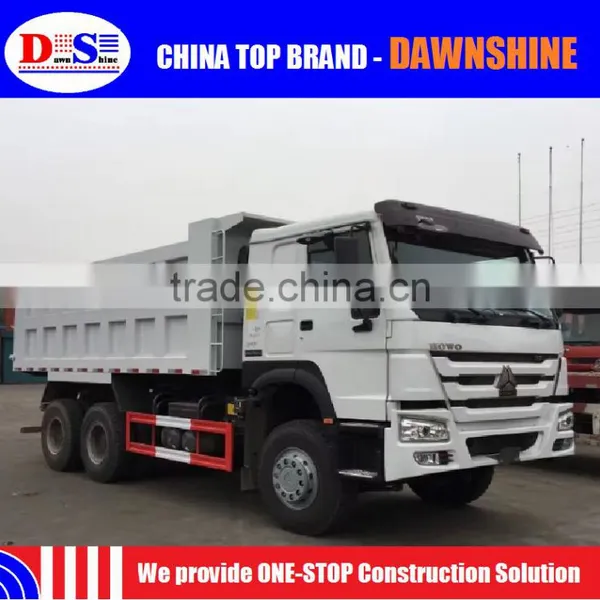

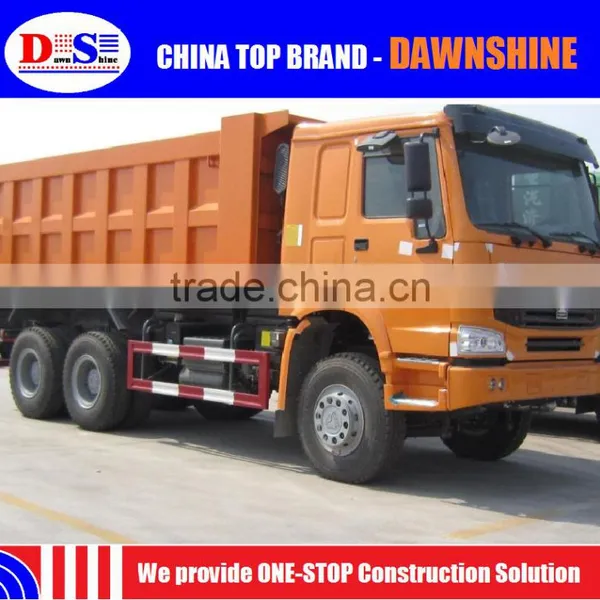

6x4 336hp Sinotruk HOWO Dump Truck 25ton
Truck Model |
ZZ3257N3647A(LHD) |
|||
Truck Brand |
SINOTRUK –HOWO |
|||
Dimension(Lx W xH)(unloaded) |
8214x2496x3386 |
|||
Cargo body size (L*W*H, mm)(mm) |
5400x2300x1400 mm |
|||
Cargo body thickness(mm) |
bottom:8mm, side:6mm |
|||
Lift type of Carriage |
Ventral lifting |
|||
Approaching angle/Departure angle(°) |
19/26 |
|||
Overhang(front/rear) (mm) |
1500/1739 |
|||
Wheel base (mm) |
3625+1350 |
|||
Max speed(km/h) |
75 |
|||
Curb weight(kg) |
12290 |
|||
Loading Weight(kg) |
30000 |
|||
Fuel tanker capacity (L) |
300L with locking fuel cap |
|||
Fuel consumption(L/100km) |
32 |
|||
Cab |
HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|||
Clutch |
Single-plate dry clutch Φ420mm |
|||
Engine(Steyr technology, made in China) |
|
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling |
||
|
371HP,247/2200 |
|||
|
EURO II |
|||
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
||
Brake system |
Service brake |
Dual circuit compressed air brake |
||
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
Auxiliary brake |
Engine exhaust brake |
|||
Steering system |
Model |
ZF8098 hydraulic steering with power assistance |
||
Front axle |
HF9 , Steering with double T-cross section beamLoading capacity:9000KG |
|||
Rear axle |
HC16, Casting axle housing, central double reduction with differential locks between axles and wheels |
|||
Color |
Optional |
|||
Tire |
12.00-20 11 pieces |
|||
Electrical system |
Operating voltage |
24V,negative grounded |
||
Starter |
24V,7.35KW |
|||
Alternator |
28V,1500W |
|||
Batteries |
2*12V.165Ah |
|||
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | ||||
Cab |
HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|||
With registered capapital of $1.6 Million under DAWNSHINE (H.K.), Qingdao Dawnshine Import & Export Co. Ltd is aiming to be your 1st choice of China partner for industrial solutions.
All the top brands from China is our main leads to introduce in your complete industrial proposal. We give the best cost-performance ratio solution to meet your industrial need with strongest manufacturing resources and highest technology support standing around. China is no longer low-cost, low-tech age, nowdays a group of foundational high-tech and manufacturing innovations has brought obvious break-thoughes to China industrial promotion, to ensure us having the confidence to compete worldwide.
We export Construction Machinery & Spare Parts from China.
