Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > Gas Insulated Switchgear - Power Plant HV Switchgear

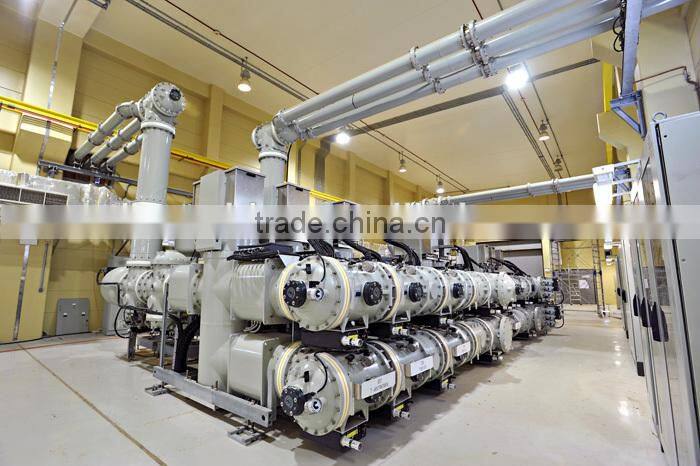

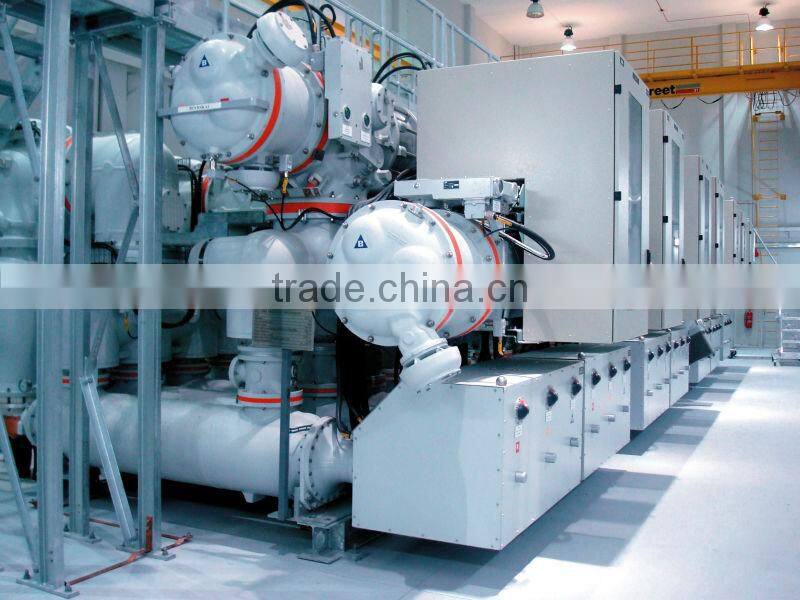

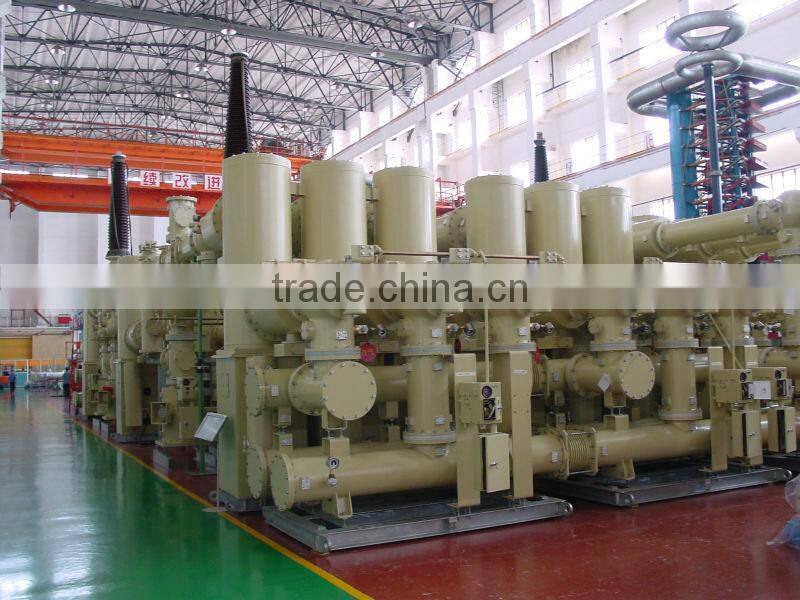

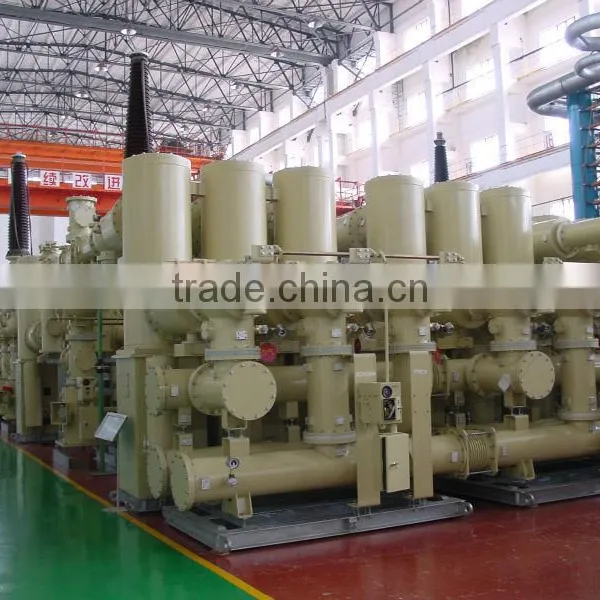

Gas Insulated Switchgear - Power Plant HV Switchgear
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
BBE
Model Number:
ZF4B-126
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Power Plant Equipment For Sale - ESP Dust Collector, Boiler, Turbine, Generator, Condensor, Air Fan, Pump, Heat ExchangerUS$ 1,000 - 1,000,000MOQ: 1 Set -
Power Plant Equipment and Spare PartsUS$ 1,000 - 1,000,000MOQ: 1 Pack
-
Vibrating Feeder 20 to 450 Ton per Hour Feeding Capacity Good Price for SaleUS$ 5,000 - 30,000MOQ: 1 Set
-
Apron Feeder Vibration Type for Crusher Equipment for SaleUS$ 10,000 - 50,000MOQ: 1 Unit
-
Roller Crusher 12t/h to 350t/h Capacity China Manufacturer for SaleUS$ 10,000 - 50,000MOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
BBE
Model Number
ZF4B-126
Specifications
Power Plant HV Switchgear1. Used for power plant
2. HV 126/145 kv
3. Gas Insulated Switchgear
Power Plant HV Switchgear
General Descriptions
Z F4B-126 is type of three busbars in one tank,the bay width is 800mm.The bay installation dimension is 1000(width)
*5000(length) *3000(height). It has the characteristic:high insulation level,big allowance of insulation,and it is the first
product that the full capacity breaking current reaches to 50KA.
Technical Parameters
| Type | ZF4B-126 |
| Rated voltage (kV) | 126/145 |
| Rated current (A) | 1250~3150 |
| Rated short circuit breaking current (kA) | 40 |
| Rated short circuit making current (kA) | 100 |
| Mechanical life (times) | 10000 |
| Bay width (mm) | 800 |
| Operating device | With spring operation device |
| Note | Three phases in one tank |
