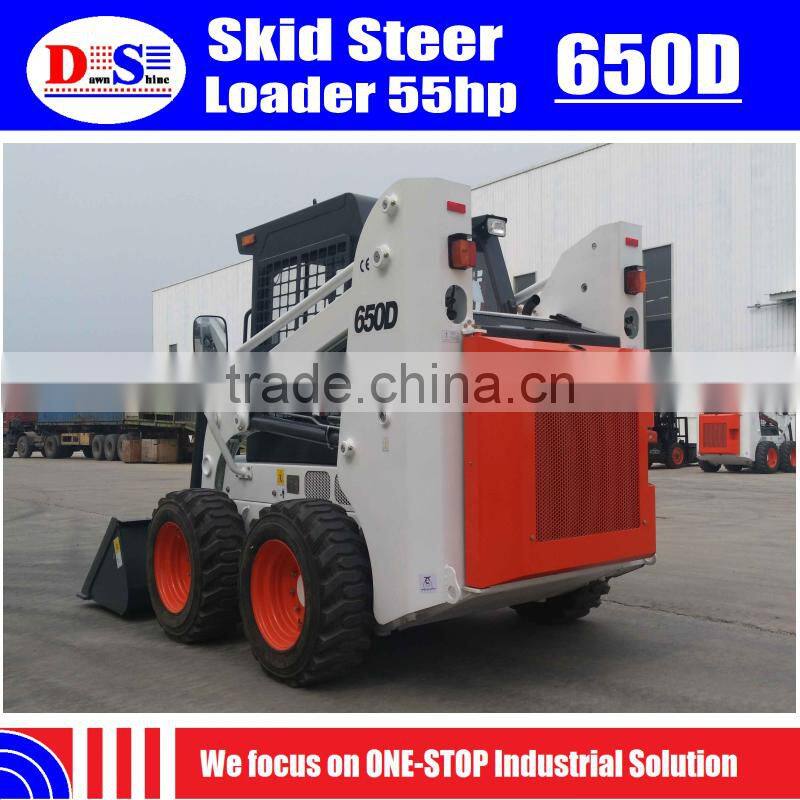

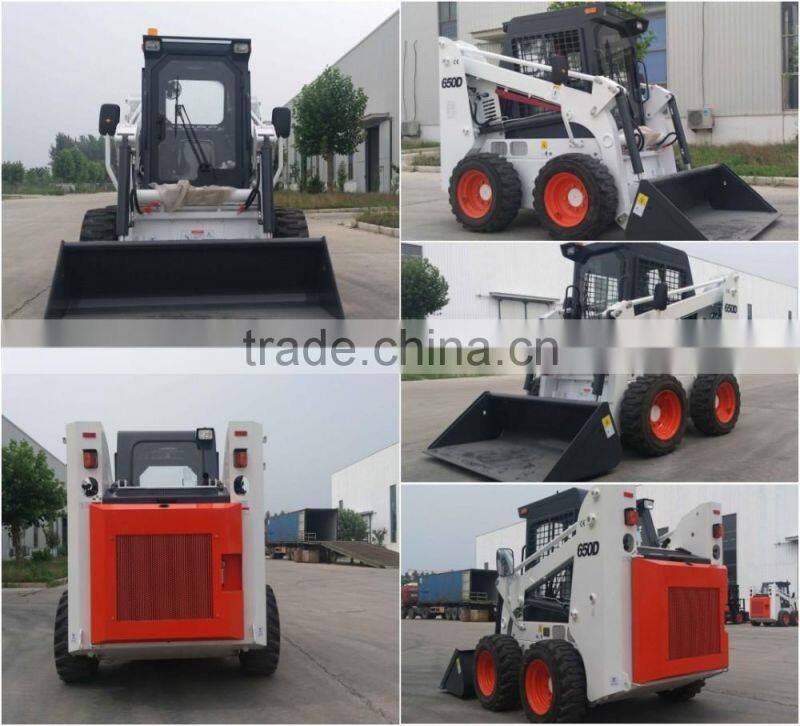

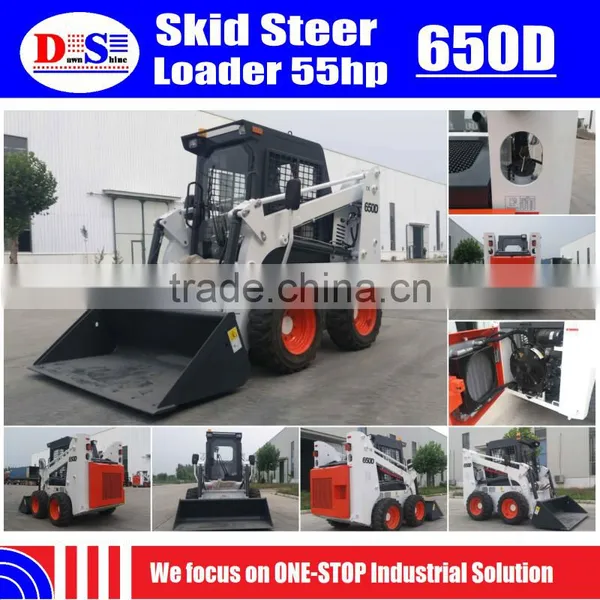

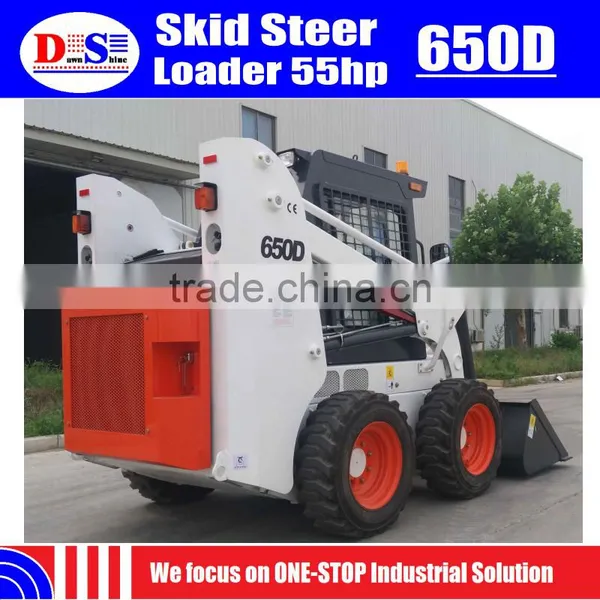

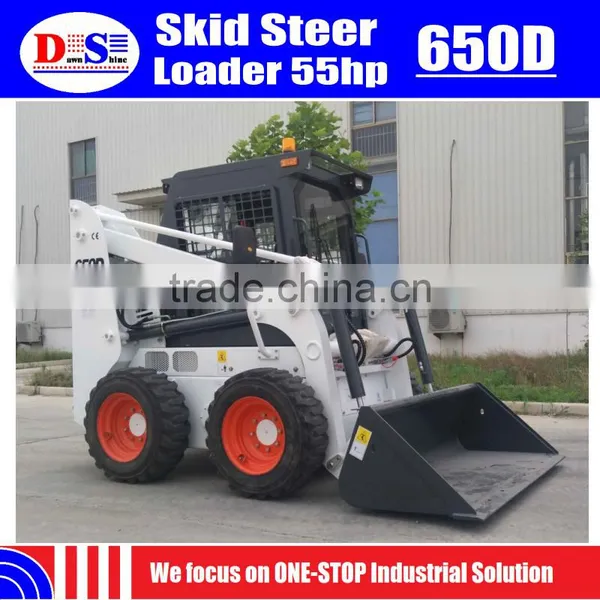

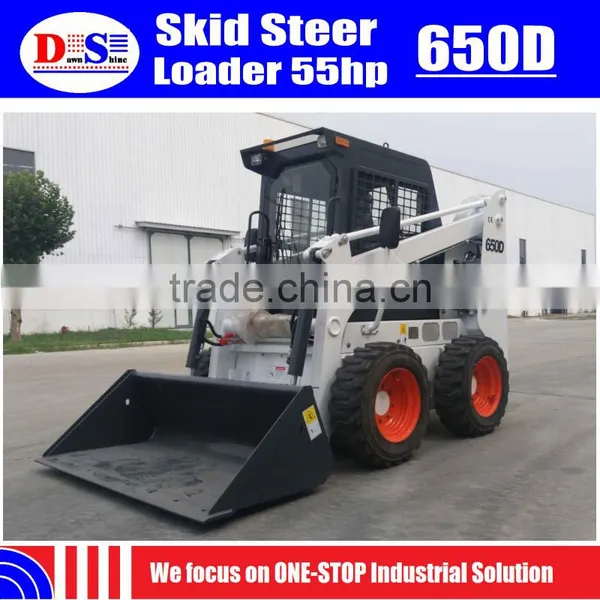

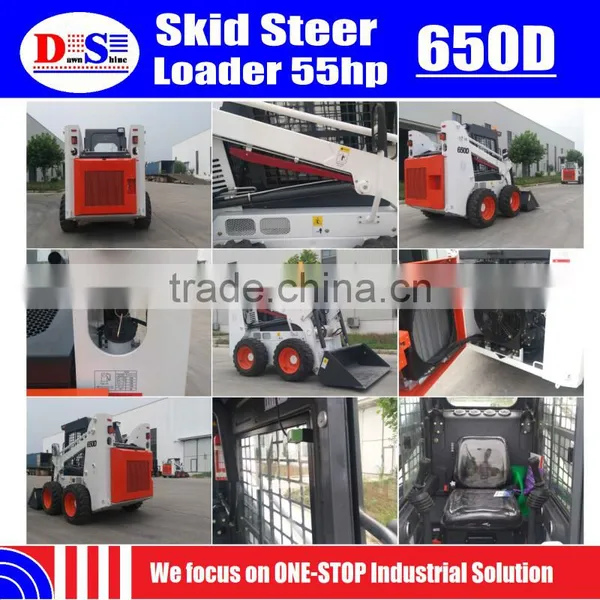

Cheap Skid Steer Loader Price 650kg Mini Skid Loader 55hp New WECAN Skid Steer Loader
Skid Steer Loader
Cheap Skid Steer Loader Price 650kg Mini Skid Loader 55hp New WECAN Skid Steer Loader
|
♦Good performance with competitive price. ♦Turn within its own length. ♦Excellent reach and lift height for truck loading (radial direction). ♦More than 20 series attachments for option: pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on. ♦Attachment can be used with bobcat type skid steer loader. ♦World famous hydraulic system from America (Sauer pump and hydraulic motor). ♦Famous brand engine with EPA or EURO II or III from China and Japan. ♦Multifunctional, maneuverability and reliability. |
Item |
650D |
Major |
650D |
Engine model |
C490BPG |
Overall operating height (mm) |
3850 |
Bore×stroke (mm) |
90×105 |
Height to bucket hinge pin (mm) |
3225 |
Rated power (kw) |
40 |
Height to top of cab (mm) |
2070 |
Rotating speed (rpm) |
2650 |
Height to bottom of level bucket(mm) |
3065 |
Number of cylinders |
4 |
Overall length without bucket (mm) |
2538 |
Max. Torque (n.m) |
156 |
Overall length with bucket (mm) |
3345 |
Displacement (L) |
2.67 |
Dumping angle at maximum height (°) |
42 |
Max. Speed (km) |
12 |
Dumping height (mm) |
2445 |
Vacuum tire |
10-16.5 |
Dumping reach (mm) |
585 |
Operating load (kg) |
650 |
Rollback of bucket on ground (°) |
31 |
Max. Loading (kg) |
1200 |
Rollback of bucket at full height (°) |
86 |
Lifting |
Radial |
Wheelbase (mm) |
991 |
Bucket lifting force (kN) |
15 |
Ground clearance (mm) |
210 |
Arm lifting force (kN) |
13 |
Angle of departure (°) |
30 |
Total cycling time(s) |
10.2 |
Turning radius front without bucket (mm) |
1380 |
Bucket capacity (m³) |
0.47 |
Front turning radius (mm) |
2027 |
Pressure of working system (bar) |
160 |
Rear turning radius (mm) |
1527 |
Rated flux(L/min) |
60 |
Rear axle to bumper (mm) |
981 |
High flow flux (L/min) (optional) |
--- |
Tread width, centerline to centerline (mm) |
1465 |
Fuel tank capacity(L) |
79 |
Width between outside of two wheels (mm) |
1730 |
Self-weight with bucket (kg) |
2850 |
Bucket width (mm) |
1800 |
| More than 20 series attachments for option: pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on. |
