Skid Loader

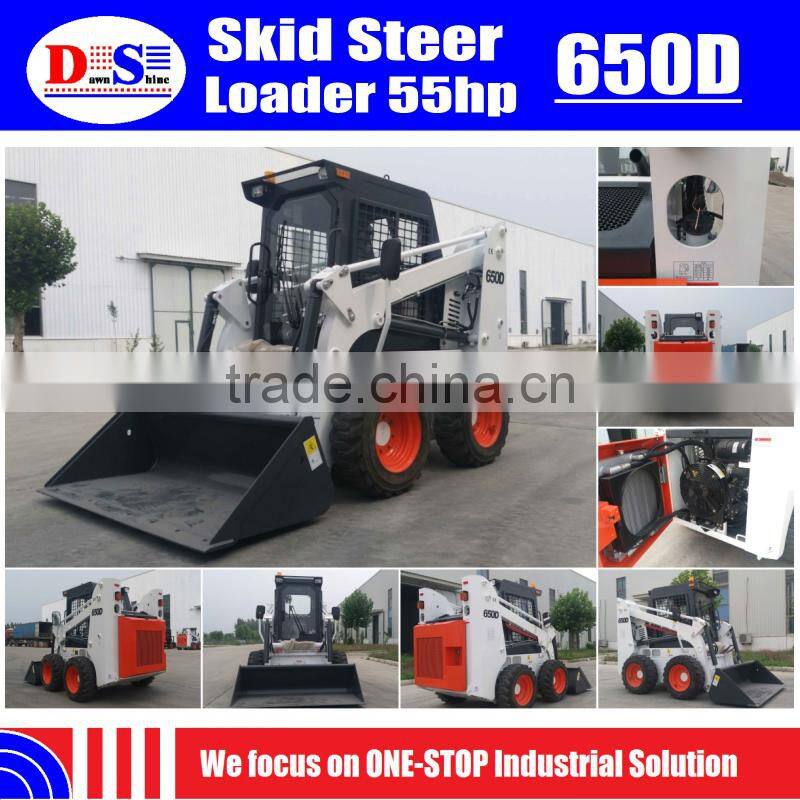

650kg Skid Steer Loader with Price Sauer Pump Mini Loader Skid Steer Skid Loader
♦Good performance with competitive price.
♦Turn within its own length.
♦Excellent reach and lift height for truck loading (radial direction).
♦More than 20 series attachments for option: pallet fork, hydraulic hammer, backhoe, sweeper, angle broom, 4 in1 bucket, auger, trencher, tooth bucket and so on.
♦Attachment can be used with bobcat type skid steer loader.
♦World famous hydraulic system from America (Sauer pump and hydraulic motor).
♦Famous brand engine with EPA or EURO II or III from China and Japan.
♦Multifunctional, maneuverability and reliability.
Item |
650D |
Major |
650D |
Engine model |
C490BPG |
Overall operating height (mm) |
3850 |
Bore×stroke (mm) |
90×105 |
Height to bucket hinge pin (mm) |
3225 |
Rated power (kw) |
40 |
Height to top of cab (mm) |
2070 |
Rotating speed (rpm) |
2650 |
Height to bottom of level bucket(mm) |
3065 |
Number of cylinders |
4 |
Overall length without bucket (mm) |
2538 |
Max. Torque (n.m) |
156 |
Overall length with bucket (mm) |
3345 |
Displacement (L) |
2.67 |
Dumping angle at maximum height (°) |
42 |
Max. Speed (km) |
12 |
Dumping height (mm) |
2445 |
Vacuum tire |
10-16.5 |
Dumping reach (mm) |
585 |
Operating load (kg) |
650 |
Rollback of bucket on ground (°) |
31 |
Max. Loading (kg) |
1200 |
Rollback of bucket at full height (°) |
86 |
Lifting |
Radial |
Wheelbase (mm) |
991 |
Bucket lifting force (kN) |
15 |
Ground clearance (mm) |
210 |
Arm lifting force (kN) |
13 |
Angle of departure (°) |
30 |
Total cycling time(s) |
10.2 |
Turning radius front without bucket (mm) |
1380 |
Bucket capacity (m³) |
0.47 |
Front turning radius (mm) |
2027 |
Pressure of working system (bar) |
160 |
Rear turning radius (mm) |
1527 |
Rated flux(L/min) |
60 |
Rear axle to bumper (mm) |
981 |
High flow flux (L/min) (optional) |
--- |
Tread width, centerline to centerline (mm) |
1465 |
Fuel tank capacity(L) |
79 |
Width between outside of two wheels (mm) |
1730 |
Self-weight with bucket (kg) |
2850 |
Bucket width (mm) |
1800 |
All kinds of attaments for skid steer loader we can offer.
