Home > Transportation > Forklifts & Parts > Forklift > 3 Ton Chinese Diesel Xinchai 4D27G31 Engine LIUGONG CPCD30 Small Forklift for Sale

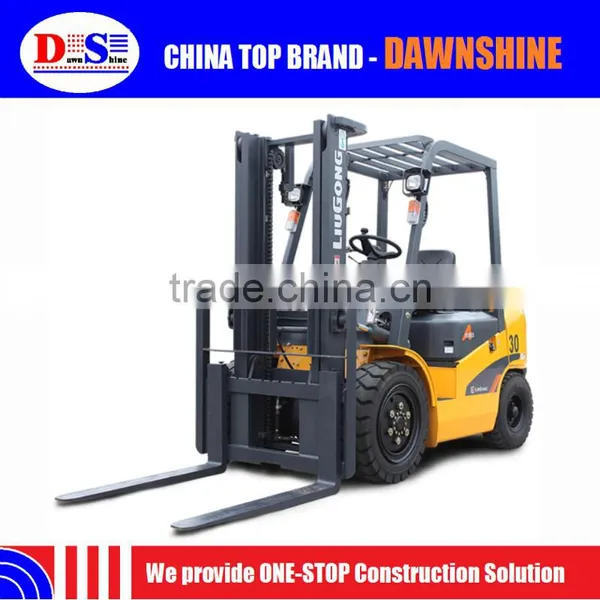

3 Ton Chinese Diesel Xinchai 4D27G31 Engine LIUGONG CPCD30 Small Forklift for Sale
US$ 7,800 - 8,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangxi, China
Brand Name:
LIUGONG
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai / tinjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
650F With Competitive Price Mini Skid Steer Loader 650kg Capacity for SaleUS$ 12,500 - 13,500MOQ: 1 Set -
Price WECAN 650F Skid Steer LoaderUS$ 13,100 - 13,400MOQ: 1 Set
-
Chinese Skid Steer Loader WECAN 650F With Sauer Pump Mini Skid Loader for SaleUS$ 13,100 - 13,400MOQ: 1 Set
-
Chinese Landfill Compactor Changlin 26 Tons LLC226 Compactor Garbage Truck PriceUS$ 110,000 - 130,000MOQ: 1 Set
-
New Landfill Compactor Changlin LLC223 Waste Compactor Trucks 23 Tons Garbage Compactor TruckUS$ 100,000 - 120,000MOQ: 1 Set
Condition
New
Place of Origin
Guangxi, China
Brand Name
LIUGONG
Model Number
CPCD30
Type
Powered Pallet Truck
Power Souce
Diesel Engine
Rated Loading Capacity
3000kg
Max. Lifting Height
3000mm
Min. Lifting Height
135mm
Fork Length
1070mm
Fork Width
122mm
Overall Dimensions
2705*1225*2170mm
Certification
CE CCC ISO
After-sales Service Provided
Engineers available to service machinery overseas
Forklift for Sale
3 ton Chinese Diesel Xinchai 4D27G31 Engine LIUGONG CPCD30 Small Forklift for Sale
Product Description
Specifications
| General | Model | CPC30A1 | CPCD30A1 | ||
| Power Type | Diesel | Diesel | |||
| Base Capacity | @ rated load center | kg | 3,000 | 3,000 | |
| Load Center | mm | 500 | 500 | ||
| Max. Fork Height | with std 2-stage mast | mm | 3,000 | 3,000 | |
| Freelift | with std 2-stage mast | mm | 145 | 145 | |
| Mast Tilt, Fwd/Back | with std 2-stage mast | deg | 6/12 | 6/12 | |
| Transmisson Way | Manual | Hydraulic | |||
| Travel Speed(II/III) | loaded / unloaded | Km/h | 8/19 | 8/19 | |
| Max. Gradeability | loaded / unloaded | % | 20/20 | 18 / 20 | |
| Max. Drawing Force | k.N | 20 | 16.8 | ||
| Turning Radius | minimum outside | mm | 2,400 | 2,400 | |
| Dimensions | Length to Fork Face | with std 2-stage mast | mm | 2,705 | 2,705 |
| Overall Width | mm | 1,225 | 1,225 | ||
| Height, Upright Lowered | with std 2-stage mast | mm | 2,080 | 2,080 | |
| Height, Upright Extended | with std 2-stage mast | mm | 4,146 | 4,146 | |
| Overhead Guard Height | mm | 2,170 | 2,170 | ||
| Gound Clearance | minimum loaded | mm | 135 | 135 | |
| Wheels | Fork Dimensions | Lx W x T | mm | 1070x122x45 | 1070x122x45 |
| Wheelbase | mm | 1,700 | 1,700 | ||
| Weight | Tire Type | Pneumatic | Pneumatic | ||
| Service Weight | unloaded | kg | 4170 | 4,230 | |
| Axle Load | loaded / unloaded, front | kg | 6,350/1,620 | 6,370 / 1,660 | |
| loaded / unloaded, rear | kg | 820/2,550 | 860 / 2,570 | ||
| Tires | Tread Width | front / rear | mm | 1,000 / 980 | 1,000 / 980 |
| Wheels | front / rear | 2 / 2 | 2 / 2 | ||
| Tire Size | front | 28×9-15-14PR | 28×9-15-14PR | ||
| rear | 6.50-10-10PR | 6.50-10-10PR | |||
| Brakes | service | Foot / Hyd | Foot / Hyd | ||
| parking | Hand / Mech | Hand / Mech | |||
| Engine | Model | Xinchai 4D27G31 | Xinchai 4D27G31 | ||
| Rated Power | kW/rpm | 36.8 / 2,500 | 36.8 / 2,500 | ||
| Max. Torque | N • m/rpm | 156 / 1,800-2000 | 156 / 1,800-2000 | ||
| Cylinders | 4 | 4 |

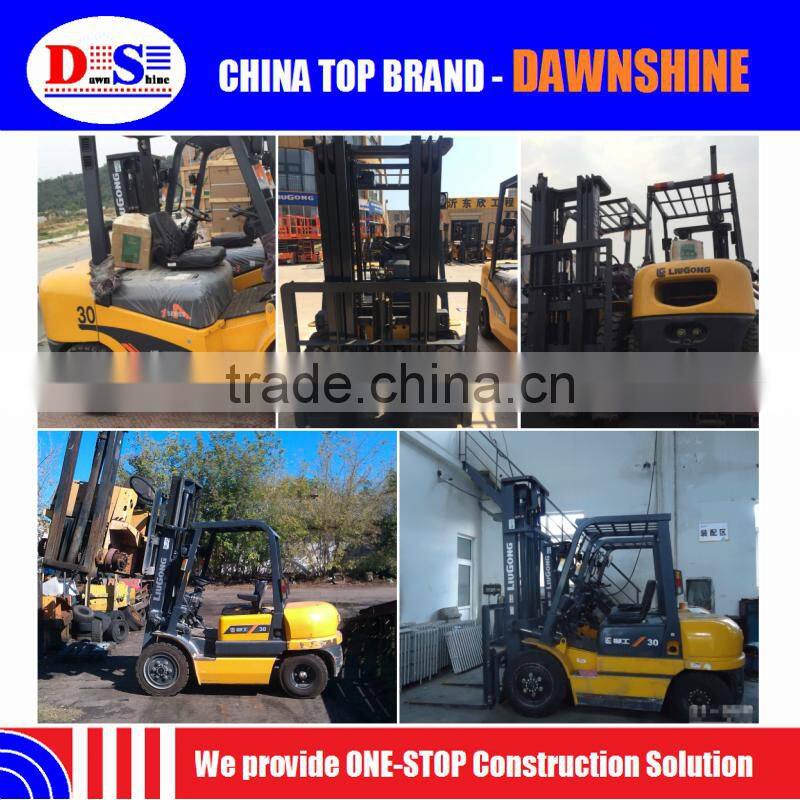

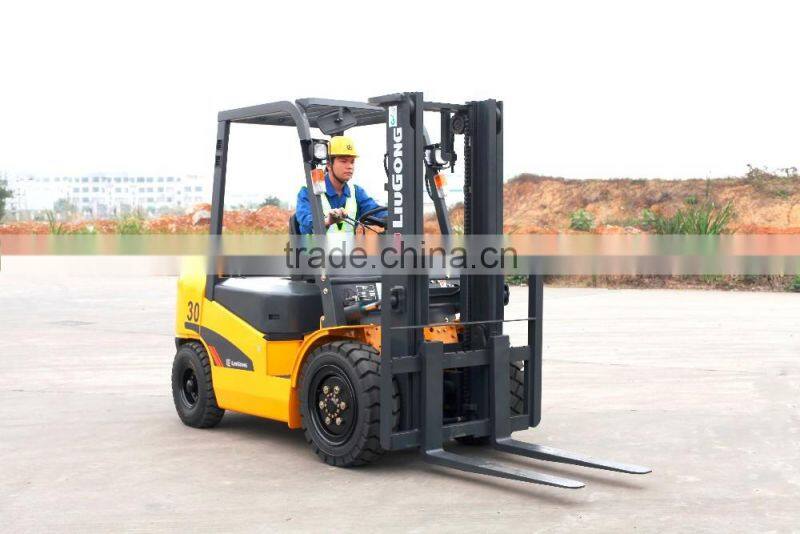

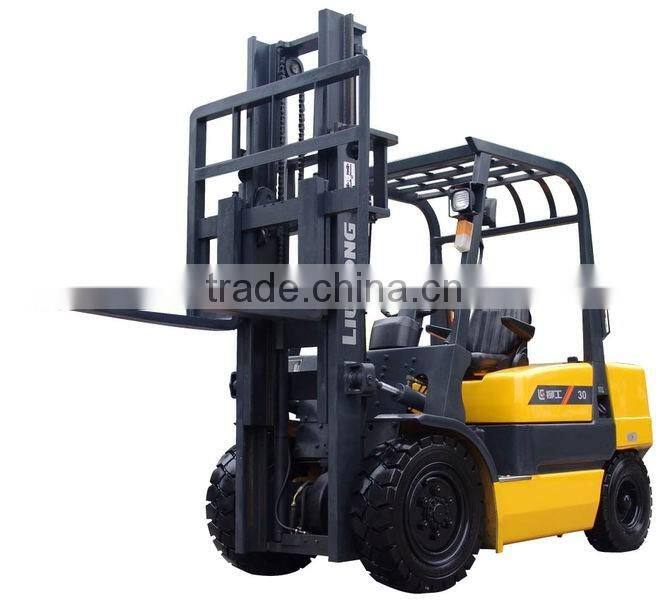

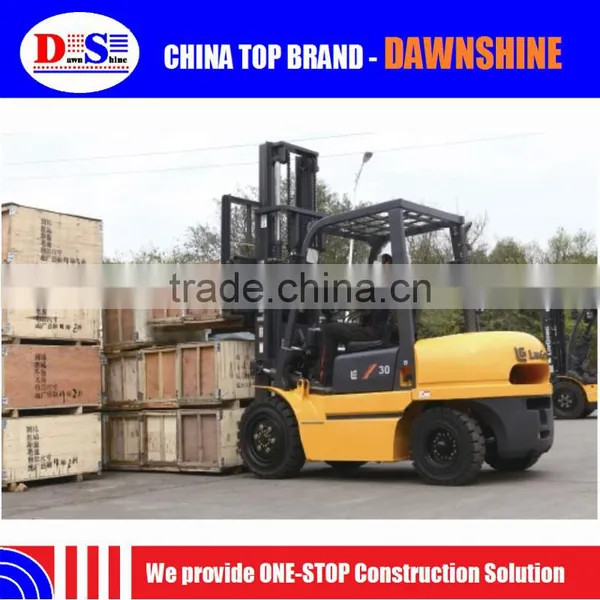

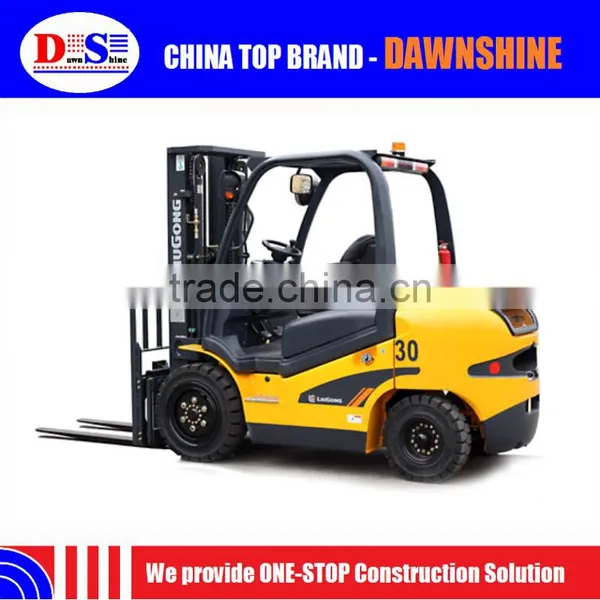

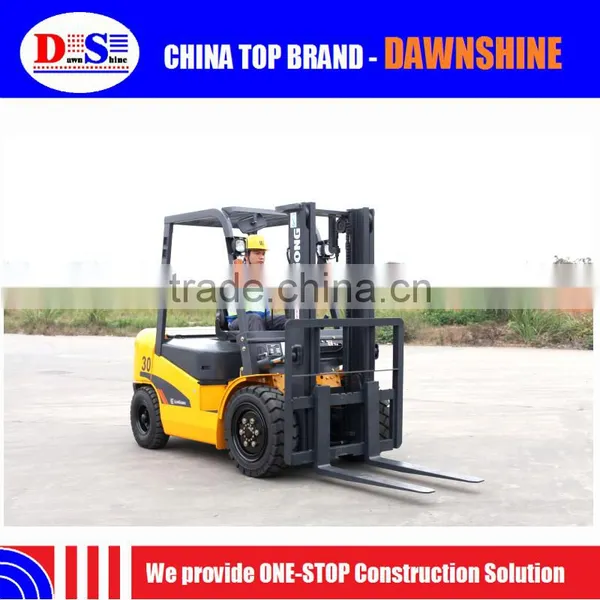

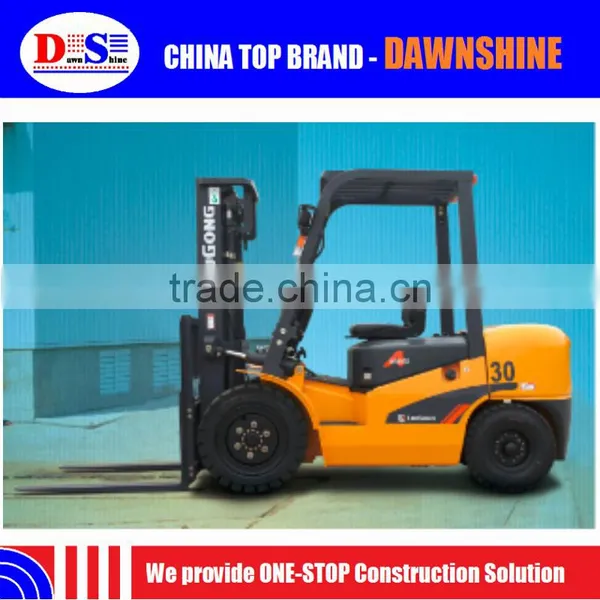

Detail Pictures

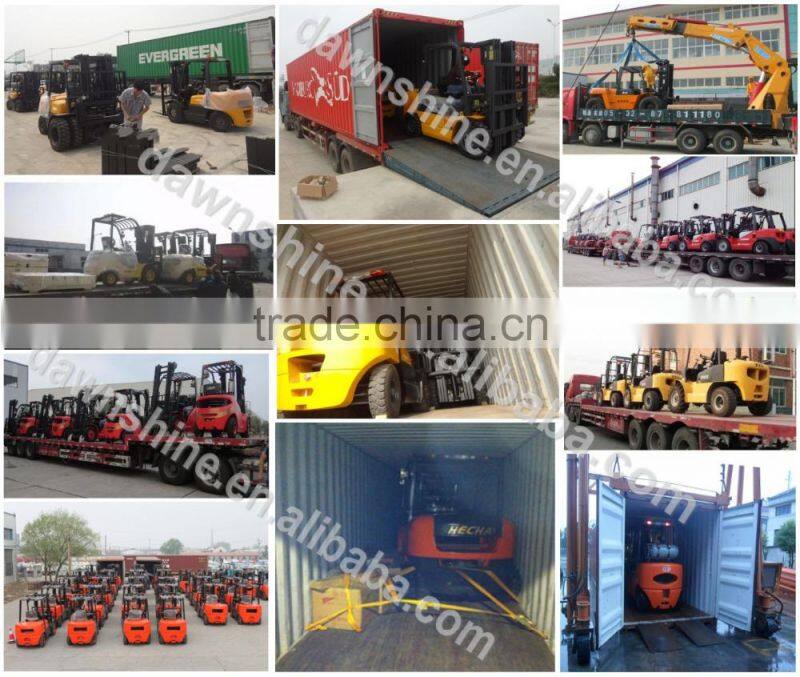

Packaging & Shipping
Contact Information
Laven Wang
Qingdao Dawnshine Import & Export Co., Ltd
http://dawnshine.en.china.cn
at
CP: 0086 - 185 5329 2950
Whatsapp: 0086 - 185 5329 2950
Skype: lavenwang003
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Trading Company
Year Established
2014
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
