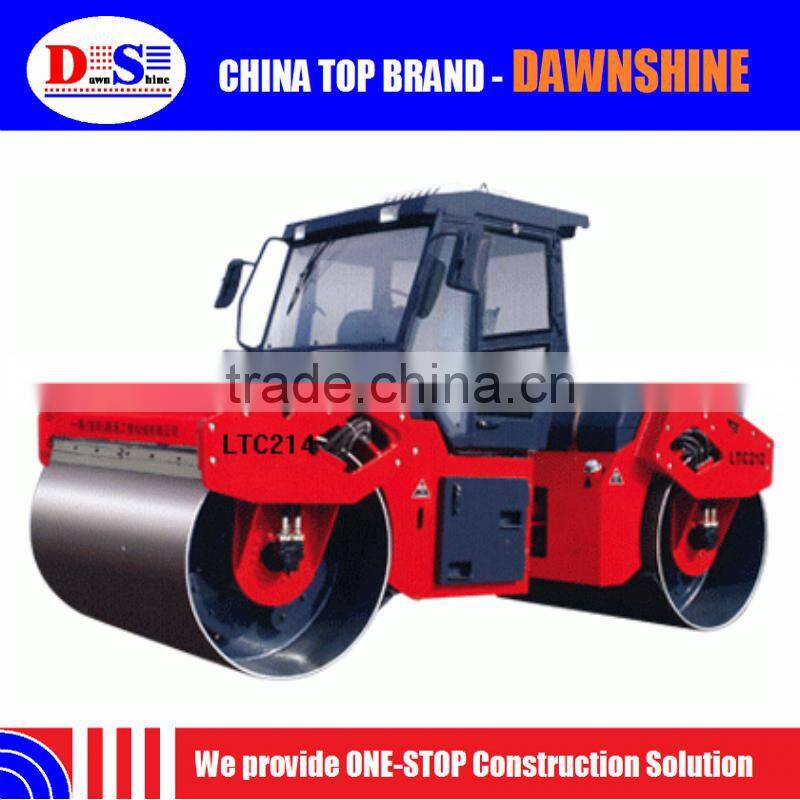

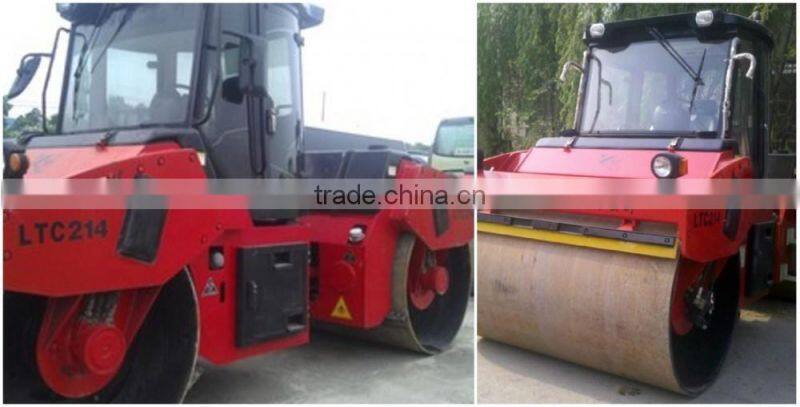

LTC214 LUTONG 14 tons Small Hydraulic Double Drum Vibratory Road Roller Compactor
Main Features 1.Full hydraulic two wheel drive and vibration. 2.Double frequency double viration system. 3.Hydrostatic center articulated steering,patented crab mechanism. 4.Cabin with air conditooner,comfortable and spacious,the flexible steering seat facilicates the operation. 5.The driver's cabin can be turned on one side as a whole, to faciliatate maintenance. 6.For-type frame, good hold0-down property. 7.Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER fo German manufacturesr REXROTH. |
| Model | LTC214 | |
| Operating mass | kg | 14000 |
| Font axle load | kg | 7000 |
| Rear axle load | kg | 7000 |
| Stactic linear load | N/cm | 333 |
| Form of frame | fork-type | |
| Crabwise movement distance | mm | ±170 |
| Water tank capacity | L | 2x600 |
| Fuel tank capacity | L | 174 |
| Hydraulic tank capacity | L | 75 |
| Vibration fraquency | ||
| High ampl | mm | 0.8 |
| Low ampl | mm | 0.4 |
| Vibration fraquency | ||
| High ampl | hz | 40 |
| Low ampl | hz | 46 |
| Centrifugal force | ||
| High ampl | kN | 160x2 |
| Low ampl | kN | 90x2 |
| Travel speed | km/h | 0-12.7 |
| Turning radius | mm | 7000 |
| Grade ability | % | 30 |
| Steering angle | ±35 | |
| Drum diameter | mm | 1350 |
| Drum width | mm | 2100 |
| Drum rim thickness | mm | 20 |
| Transverse swing angle of the vibrating wheel | ±8 | |
| Type of water spray | pressure | |
| Wheel base | mm | 3717 |
| Overall length | mm | 5060 |
| Overall width | mm | 2250 |
| Overall hieght | mm | 3300 |
| Ground clearance | mm | 324 |
| Diesel model | cummins | 6BT5.9 |
| Diesel power | kW | 110 |
| Diesel speed | r/min | 2300 |
