Home > Products > Construction Machinery > 12 ton Compactor Vibratory Roller - Full Hydraulic Double Drive Road Roller SHANTUI SR12-5

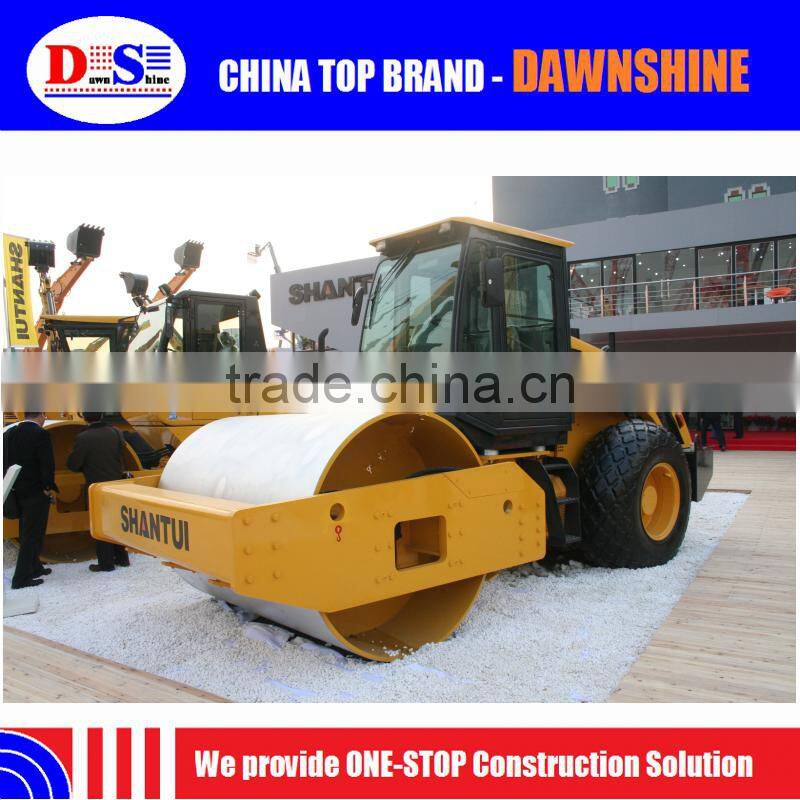

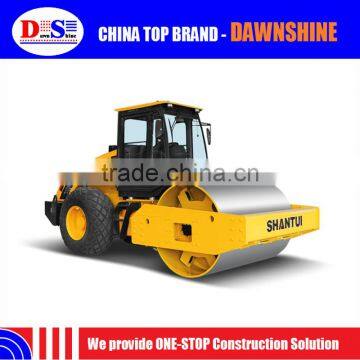

12 ton Compactor Vibratory Roller - Full Hydraulic Double Drive Road Roller SHANTUI SR12-5
- 300 Set / Sets per Month
- China Main Port
- T/T L/C D/P D/A
- China hydraulic vibrating road roller compactor machine
- Volvo Vibration Roller DD146HF
- Many small rollers sell cheap and durable second-hand vibrating rollers
- Cheap and fine used XCMG Dynapac, Ingeresoll, BOMAG, HAMM rollers for sale
- Used Shantui, Dynapac, Ingeresoll, HAMM, KOTAI, BOMAG rollers with good performance for sale
- The used XCMG, SANY, Changlin, Shantui, rollers with excellent control performance is for sale
Product Details
Condition: | New | Type: | Single Drum Roller | Static Linear Pressure: | 325N/cm |
Travel Speed: | 0-9.9km/h | Grade Ability: | 48% | Place of Origin: | Shandong, China |
Brand Name: | SHANTUI | Model Number: | SR12-5 | Power(W): | 105kw |
Dimension(L*W*H): | 6021*2402*3127mm | Weight: | 12300kg | Certification: | ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
SHANTUI SR12-5
12 ton Compactor Vibratory Roller - Full Hydraulic Double Driving Road Roller
SR12-5/SR12P-5 full-hydraulic single-drum vibratory road roller features strong power drive system and vibration system. The unique traveling and vibration hydraulic system and the 8-point central pressure measurement device make your operations simpler and more efficient. This machine can be used for the compacting of infrastructure projects and is suitable for the high-density compacting of the non-clayed materials as well as the clayed and semi-clayed materials. |
1. Featuring prominent performances, high reliability, good fuel economy, and strong power, Weichai WP6G140E22 engine maintains the machine under best compacting status to guarantee the construction quality. 2. Shantui’s patented new vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibra 3. The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system. 4. The single gearshift joystick can effectively improve the working efficiency of the operator and relieve the fatigue. 5. The imported comfortable and firm seat is equipped with the retractable seat belt and rubber shock-absorbing design to remarkably reduce the working strength. 6. The double traveling drive system provides power to the front drum and rear axle to achieve outstanding control performance and traction force for the whole machine. |
Length × width × height (mm) | 6021×2402×3127 6021×2362×3127 | Total weight (kg) | 12300/13450 |
Front wheel weight (kg) | 7100/8250 | Theoretical gradeability (%) | 48 |
Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 325/378 |
High vibration amplitude | 1.8/1.4 | Low vibration amplitude | 1.0/0.78 |
Vibration frequency (high/low) (Hz) | 33/30 | Centrifugal force (high/low) (kN) | 270/180 |
Engine model | Weichai WP6G140E22 | Rated power | 105 |
Number/height of padfoot (mm) | 154/95 |
