NCS3000 SERIES OF TORQUE TESTING SYSTEMNCS3000 SERIES OF TORQUE TESTING SYSTEM
NCS3000 series of torque testing system is a high sophisticated machine. It mainly used for testing all kinds of torque wrenches, include mechanical torque wrenches, digital torque wrenches, dail indication torque wrenches, torque screwdriver etc..

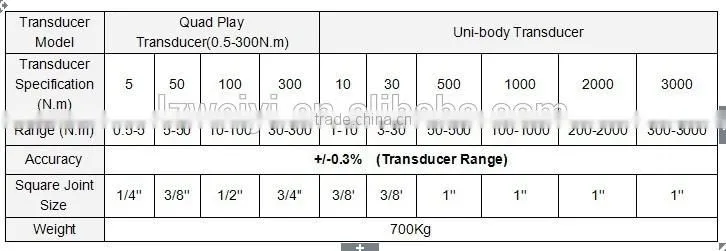

The main body consists of several transducers, ranges from 0.5 to 3000 N.m, and the accuracy is 0.3% level. Each transducer has a special restore chip to realize the automatically recognize. The whole system is made up of industry control computer, LCD touch screen, Servo System, data acquisition module and load mechanism.
The precise torque value data acquisition function can easily realize the automatic loading of torque wrenches. Meanwhile, the LCD touch screen, which is combined with operation and display, can achieve measuring data processing and data retrieval, also has the functions of data storage, statistics analysis, printing report and real-time rendering torque curves.
