Introduction

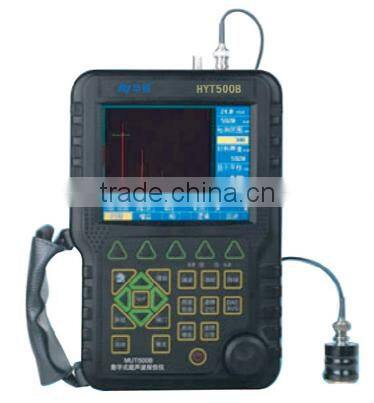

The HYT500B is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port.

The instrument incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials.

The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.

Features of the Instrument

The instrument extends the performance and range of applications that are capable of being satisfied by a portable instrument. The quality, portability, durability, and dependability that you have come to expect from the popular Huayin HY Series of instruments remain.

Display

Hi-resolution (320×240 pixels) multi-color TFT LCD with 4 user-selectable brightness control provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness.

The hi-resolution multi-color TFT LCD display with fast 60 Hz update gives an “analog look” to the waveform providing detailed information that is critical in many applications including nuclear power plant inspections.

Range

Up to 9999 mm in steel. suitable for use on large work pieces and in high-resolution measurements.

Pulser

Pulse Energy selectable among Low, Medium and High.

Pulse Width tunable from 0.1µs to 0.5 µs to match the probes with different frequency.

Pulse Repetition Frequency adjustable from 10 Hz to 1 KHz in 1 Hz increments.

Damping selectable among 100Ω,200Ωand 400Ωfor optimum probe performance

Test Modes include Pulse echo, dual and thru-transmission

Receiver

Sampling: 10 digit AD Converter at the sampling speed of 160 MHz

Rectification: Positive Halfwave, Negative Halfwave, Fullwave and RF

Analog Bandwidth: 0.5MHz to 15MHz capability with selectable frequency ranges (automatically set by the instrument) to match probe for optimum performance.

Gain: 0 dB to 110 dB adjustable in selectable steps 0.1 dB, 2 dB, 6 dB, and locked.

Gates

Two fully independent gates offer a range of measurement options for signal height or distance using peak triggering.

The echo-to-echo mode allows accurate gate positioning for signals which are extremely close together.

Gate Start: Variable over entire displayed range

Gate Width: Variable from Gate Start to end of displayed range

Gate Height: Variable from 0 to 99% Full Screen Height

Alarms: Threshold positive/negative

Memory

Memory of 100 channel files to store calibration set-ups

Memory of 1000 wave files to store A-Scan patterns and instrument settings.

All the files can be stored, recalled and cleared.

Functions

lSemiautomatic two point calibration: Automated calibration of transducer zero offset and/or material velocity

lFlaw Locating: Live display Sound-path, Projection (surface distance), Depth, Amplitude,

lFlaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection.

lDigital Readout and Trig. Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Peam path, Surface Distance and Depth are directly displayed when angle probe is in use.

lBoth the DAC and the AVG method of amplitude evaluation are available.

lCurved Surface Correction feature

lCrack Height Measure function

lWeld figure feature

lMagnify gate: spreading of the gate range over the entire screen width

lVideo Recording and play

lAuto-gain function

lEnvelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display

lPeak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.

lA Scan Freeze: Display freeze holds waveform and sound path data

lB Scan display feature

Real Time Clock

The instrument clock keeps running tracking the time.

Communication

High speed USB2.0 port.

The optional DataPro software helps manage and format stored inspection data for high-speed transfer to the PC. Data can be printed or easily copied and pasted into word processing files and spreadsheets for further reporting needs. New features include live screen capture mode and database tracking.

Battery

Internal rechargeable Li-ion battery pack rated 7.2V at 8800 mAh

8 hours nominal operating time depending on display brightness

8-10 hours typical recharge time

Knob

Operating adjustments are easily and quickly made using the rotary knob.

Specifications

lRange:  0 to 9999 mm, at steel velocity

lMaterial Velocity: 1000 to 9999m/s

lDisplay Delay: -20 to 3400 µs

lProbe Delay/Zero Offset : 0 to 99.99µs

lSensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.

lTest Modes: Pulse echo, dual element and thru-transmission

lPulser: Tunable Square Wave Pulser

lPulse Repetition Frequency ranges from 10 Hz to 1000 Hz

lPulse Energy: Low, Medium and High

lDamping: 100, 200, 400 ohms

lBandwidth (amplifier bandpass ): 0.5 to 15 MHz

lGate Monitors: Two independent gates controllable over entire sweep range

lRectification: Positive halfwave, negative halfwave, fullwave, RF

lSystem Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.

lReject (suppression): 0 to 80% full screen height

lUnits: Inch or millimeter

lTransducer Connections: BNC or LEMO

lPower Requirements: AC Mains 100-240 VAC, 50-60 Hz

lDimensions: 263H×170W×61D mm

lOperating Temperature: -10℃to 50℃

lStorage Temperature: -30℃to 50℃

Base Instrument Package

Portable Ultrasonic Flaw Detector with multi-color TFT LCDDisplay

Straight Beam Transducer (4 MHz, Φ10)

Angle Beam Transducer (4 MHz, 8 mm×9mm, 60°)

Interconnect Cable for the transducer (Q9-C5,or optional C9- C5)

Rechargeable Li-Ion Battery Package, 8.8 amp hour

Power supply/charger unit

Supporting pillar

Operating Manual in English

Datapro Software for HY series Instrument

USB Cable
