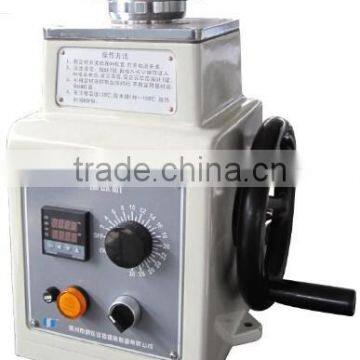

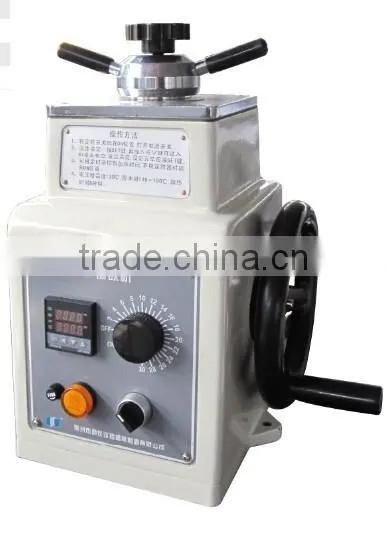

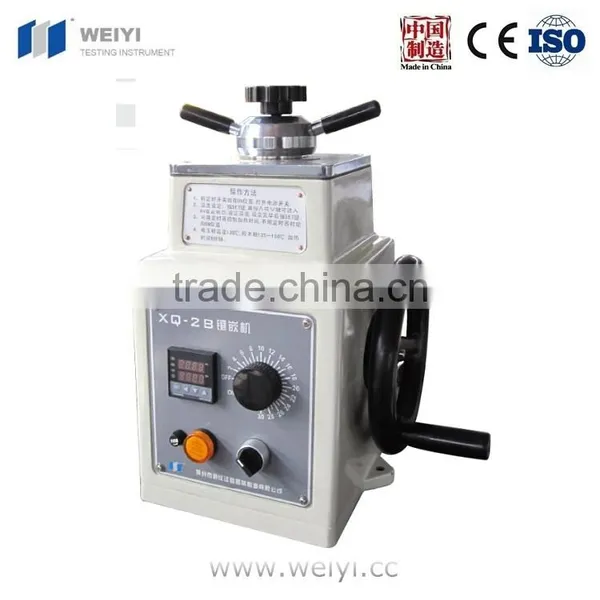

Help CenterModel XQ-2B Mounting Machine for Metallographic Specimen
Related Products
-
Automatic Mounting Press Machine ZXQ-1, Laizhou WeiyiUS$ 9 - 3,999MOQ: 1 Set -
BXQ Semi-automatic Inlaying MachineUS$ 999 - 9,999MOQ: 1 Set
-
Metallographic Specimen Mounting Press MachineUS$ 9 - 4,999MOQ: 2 Sets
-
ZXQ-1 Automatic Mounting Press MachineUS$ 399 - 3,999MOQ: 1 Set
-
Metallographic Specimen Mounting MachineUS$ 9 - 999MOQ: 2 Sets
APPLICATION
This machine is designed for purpose of the last process before polishing. It is setting up those small, difficult-to-hold or irregular specimens for metallographical test. It can facilitate polishing and watch properly the ideal material structure and measure the hardness of the material by hardness tester. The inserts for this machine are limited to thermosetting materials only .The punching temperature of different thermosetting materials can be adjusted depending upon the features of materials .
The inserts are available from the sales agency of our company .
Table 1
Thermosetting materials | Diameter of specimen | Volume of inserted powder | Heating temperature | Temperature holding time | Time for cooling |
Urea formal degde moulding powder | φ22 | 10ml | 130℃ | 10min | 15min |
φ30 | 20ml | 130℃ | 10min | 15min | |
φ45 | 35ml | 130℃ | 10min | 15min | |
Insulating moulding powder (black) | φ22 | 10ml | 135-150℃ | 8min | 15min |
φ30 | 20ml | 135-150℃ | 8min | 15min | |
φ45 | 35ml | 135-150℃ | 8min | 15min |
MAIN TECHMICAL PARAMETERS
Punch diameter of specimen:φ22,φ30,φ45
Specifications of heater:220V 650W
Overall dimensions: 400×290×400mm
Weight:33kg
Model: MoPao 3S MP-1B MP-2B BG-32 MPJ-1A
Enter to Related website on Alibaba by Clicking product photo
Model: Q-80Z DTQ-5 LDQ-350A IQIEGE 60S GTQ-5000B
Enter to Related website on Alibaba by Clicking product photo
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
