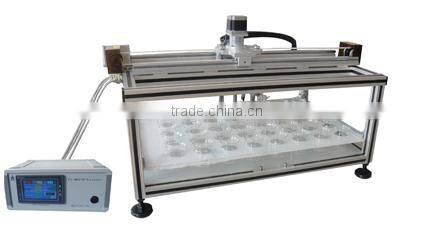

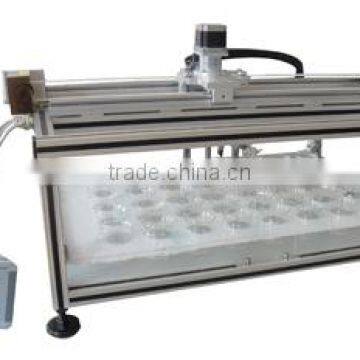

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater thumbnail-1
PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater photo-1
US$ 99 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other
Place of Origin Shandong, China
Brand Name WEIYI
Model Number PTL-MM02-8P
Certification CE
Warranty one year
After-sales Service Provided No overseas service provided





Product Description











PTL-MM02-8P is a multi position precision dip coater, whcih can coat 5 pcs sample in one row at each time, and dip each row  of sample upto 8 position as program to achieve multi-sample coating upto 40 pcs at each time.   It is excellent tool to find optimized coating composition and make multi-layer coating.

SPECIFICATIONS:

Working Voltage

110/220V AC switchable, 50/60 Hz

Max. Power Consumption

100W

Max Stroke length

65 mm

Maximum sample load

100 g
Smaple Clamp & Sample Size

  • Sample clamp: 40 pcs included

  • Standard sample size: 65mm L x 25mm W x 1 - 2.5 mm

Control Unit

  • All parameters are controlled by PLC via  Color Touch Screen  6"(L) x 4"(W)

  • Control unit is separated from dip coating divice to allow remote operation

Insertion Speed
1 - 200 mm/minute programmable by Touch Screen PLC

Pulling Speed
1 - 200 mm/minute programmable by Touch Screen PLC

Horizontal Moving Speed

 50 ~ 500 mm/minute adjustable

Speed Stability
+/- 0.05%
Immersion Container

  • 40 pcs pryglass breaker ( 100 ml) included with breaker holder

  • Breaker size:   50mm dia. x 70 mm H   ( 100 mL  capacity )
Optional

  • 800W water bath with temperature controller is available at extra cost ( please see picture right )

  • You may put the dip-coater unin can be placed on flave-box



Product Dimensions & Weight

  • 850×500×520, mm ( with frame)

  • 20 kg
Compliance CE Certified
Warranty One Year limited warranty with lifetime support
Operation Manual & Video
Application Notes

  • In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)

  • Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating
Net Weight 18 kg (39.6 lbs)
Shipping Weight 45 kg (100 lbs)







More Lab Equipment

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater

Model: MoPao 3S                      MP-1B                      MP-2B                     BG-32                    MPJ-1A

Enter to Related website on Alibaba by Clicking model details

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater

Model:  Q-80Z                       DTQ-5                      LDQ-350A                   IQIEGE 60S               GTQ-5000B

Enter to Related website on Alibaba by Clicking model details

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater

Model: ZXQ-5                        ZXQ-1                       XQ-2B

Enter to Related website on Alibaba by Clicking model details

Packaging & Shipping

PTL-MM02-8P 5 x 8 Position PLC Controlled Precision Dip Coater

Company Information

Brief Introduction

Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .

In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
