Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P

Name: Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P
Brand: WEIYI
SKU: 140785438
Availability: InStock

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P thumbnail-1

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P thumbnail-2

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P thumbnail-3

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P thumbnail-4

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P thumbnail-5

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P photo-1

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P photo-2

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P photo-3

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P photo-4

Anti-Corrosion Spin Coater ( 8000 RPM .) With Complete Accessories - VTC-200P photo-5

US$ 99 - 4,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

WEIYI

Model Number:

VTC-200P

Contact Supplier Request Quote Chat Now

Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name WEIYI

Model Number VTC-200P

Condition New

After-sales Service Provided No overseas service provided

Product Description

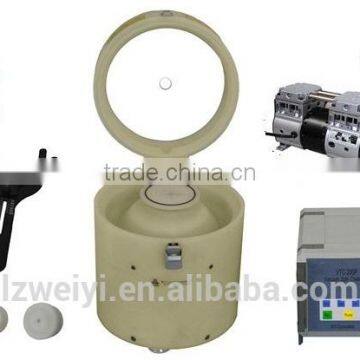

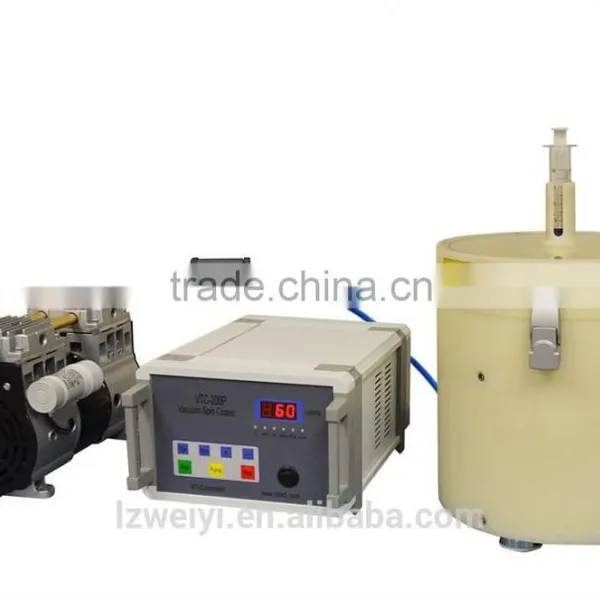

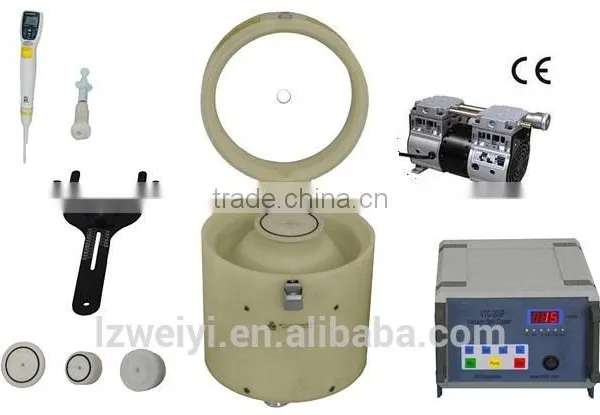

VTC-200P is Anti Corrosion Spin Coater made of Polypropylene (PP) material , which can be used for strong acide or alkali solution. Four vacuum chucks are included for coating wafer from 10 mm to 6". Digital control box is seprated fron spin coater which allow you operate in remote location.. The spinning speed is variable from 500-8000 rpm with two programmable segments. The package comes included with oilless vacuum pump and 20ml syringe for immediate use.

SPECIFICATIONS:

Structure	Case and spin disk made of Polypropylene (PP) to resist most of corrosive solutions Digital control box is separated fron spin coater. One filter is included in standard package. It is used to connect the pump and coater for preventing waste water from flowing into the pump One oil-less vacuum pump is included in the standard package, please click here for specification details.
Vacuum Chuck	4 sets of PP anti-corrosive vacuum chucks with different sizes ( Φ21mm,Φ38mm,Φ60mm,Φ100mm ), which can hold substrate from 10mm dia to 6" dia. 1 piece of adhesive tape (6'' W x 24'' L) is included for coating irregularly shaped substrates (e.g. Place the irregular substrate on the adhesive tape, then the vacuum chuck will hold the tape by suction) Ome wrench is included for replacing spin disk at the easy. ( see pic.3) Mini suction cups are available for small wafer with less 1"dia.. or substrate with regular ( 5x5, or 10x10mm)or irregular shape. Please click here to order. at extra cost.
Spin Speed	Digital control panel with two programmable segments of different spin times and speeds 500 - 8000 RPM adjustable spining speed at each segement
Liquid Injecting	20mL syringe is included to contain the coating material. (see the first picture below) The syringe holder height can be adjusted and rotated freely along the support rod. Optional: You may choose Precision Electronic Single Channel Pipette: 20 - 200uL for more accurate coating Using plasma-cleaner to treat substrate surface before coating can improve film quality
Input Power	AC 110V/220V selectable There is a built in power socket on the right side of the VTC-100A spin coater. It is used to supply power for the vacuum pump. The output voltage of this power supply depends on the input voltage of the spin coater's main circuit. (e.g. if the spin coater is plugged into the AC 110V power socket, then the built in power socket will supply AC 110V)
Motor Power	200W

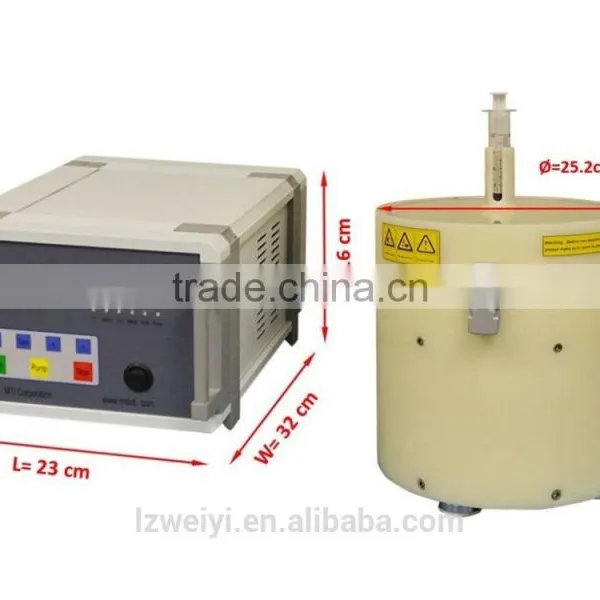

Product Dimensions	13''(L) x 10''(W) x 8.5''(H)
Net Weight	25 kg
Compliance	CE Certified
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty

Application Notes	Please click here to review an article on "Spin Coater Theory and Processing" In order to achive better coating quality, please consider cleaning substrates by plasma cleaner before coating The EQ-OFDP-2 is a tiny silent powerful diaphragm pump, which is made in Germany and provides an excellent vacuum performance, now it's only $1455 for you to have this pump.
Shipping Dimensions	40"(L) x 30"(W) x 30"(H)
Shipping Weight	46 kg (100 lbs)
