Product Details
| Place of Origin: | Shandong, China | Brand Name: | WEIYI | Model Number: | GTQ-5000B |
| After-sales Service Provided: | Overseas service center available |
Product Description

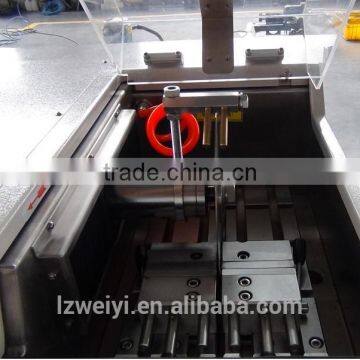

GTQ-5000B metallographic precision cutting machine
Application
GTQ-5000B Precision cutting machine is suitable for metal, electronic components, ceramic materials, crystals, carbide, rock samples, ore samples, concrete, organic materials, biological materials (teeth, bone) and other materials for precise cutting without distortion .
The device can be a continuous sheet cutting; positioning accuracy is high; speed range large; cutting ability; built-in cooling system; can be pre-set feed speed; menu-driven control; liquid crystal display; There are two locations you can clamp; nine kinds of Fixed cutting method, the user can freely define one kinds of cutting methods; enclosed cutting chamber with safety switch. Is the industrial and mining enterprises, research institutes, high-quality sample preparation is one of the ideal equipments.
Technical Parameters
| Model | GTQ-5000B |
| Feed speed | 0.01-3mm/s |
| Wheel speed | 500-5000r/min |
| MAX cutting diameter | Φ60mm |
| Input voltage | 220V 50HZ |
| Maximum stroke | Y 200mm |
| Cutting wheel size | Φ200mm x1mm x32mm |
| Motor: | 1.5KW |
| Dimension | 820mm x735mm x435mm |
| Net weight | 180kg |
