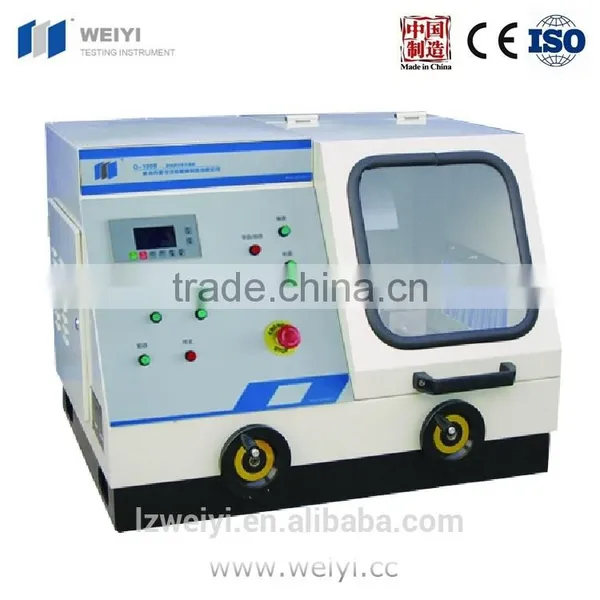

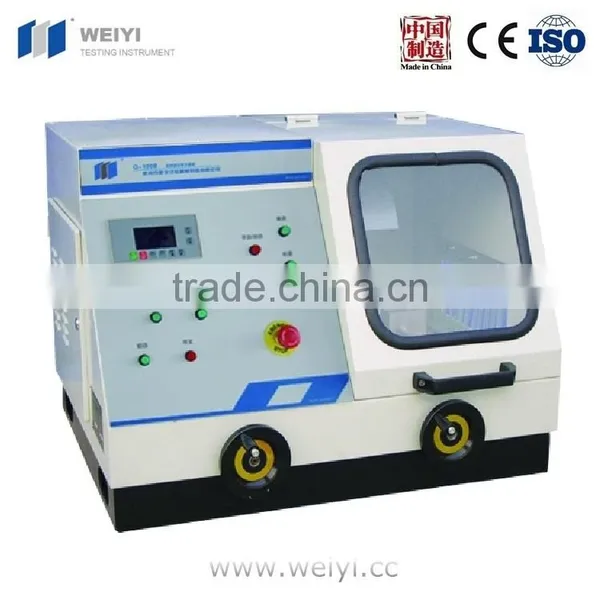

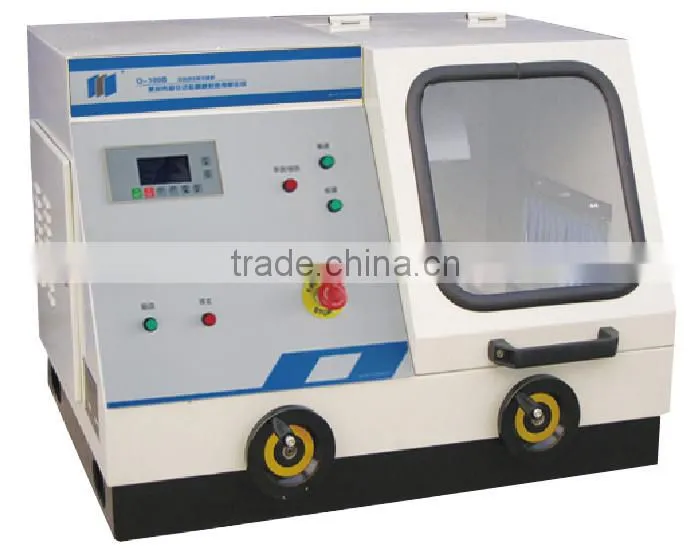

Q-80Z manual & automatic sample cutter machine

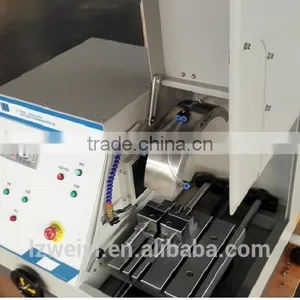

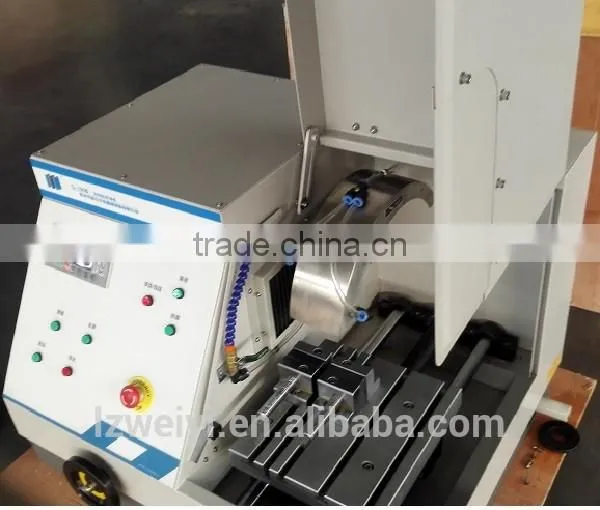

The model Q-80Z cutting machine is composed of main machine, electric control box, cutting room, motor, cooling system, cutting grinding wheel and other parts. The cutting machine can not only cut diameter of 100mm within the circular workpiece, but also can cut rectangular specimens within the cutting of hight 70mm, depth 100mm. The machine cool the sample through a cooling system to prevent overheating and burning during the cutting process. The machine can also set the cutting speed in accordance with the different specimen so as to improve the quality of cutting samples. The machine has the manual cutting and automatic cutting. It is more convenient for user to use because of the large cutting chamber and meanwhile it is s one of the sample preparation equipment of colleges and universities, factories and enterprises for metallographic test.
Technical parameter:
| Model | Q-80Z |
| Input voltage | 380V 50HZ |
| Wheel speed | 2100r/min |
| Cutting wheel size | Φ350mm x2.5mm x32mm |
| MAX cutting diameter | Φ80mm |
| Max moving travel | 125mm |
| Max working table travel | 275mm |
| Motor: | 2.5KW |
| Feed speed | 1-10mm/min |
| Working table size | 310mm x280mm |
| Dimension | 835mm x850mm x620mm |
| Machine net weight | 180kg |
| Tank net weight | 25kg |
Model: MoPao 3S MP-1B MP-2B BG-32 MPJ-1A
Enter to Related website on Alibaba by Clicking product photo
Model: ZXQ-5 ZXQ-1 XQ-2B
Enter to Related website on Alibaba by Clicking product photo

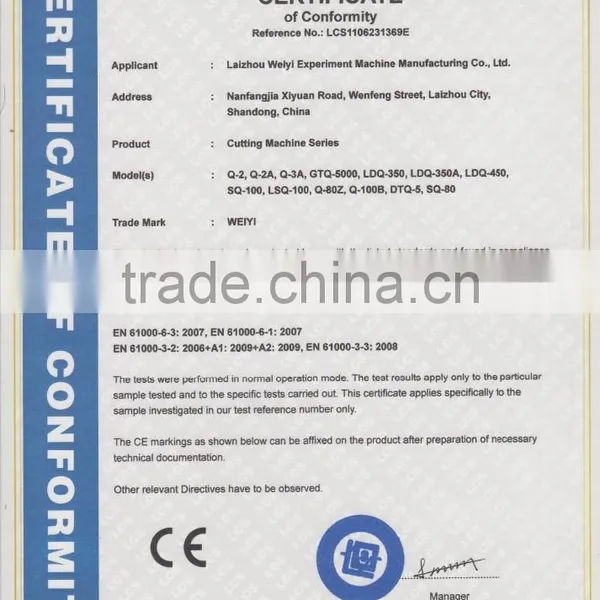

In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
