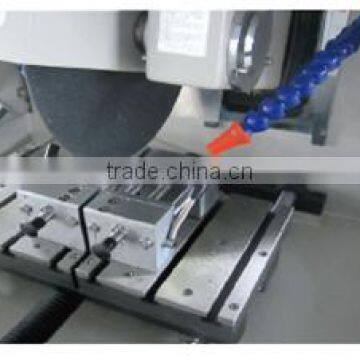

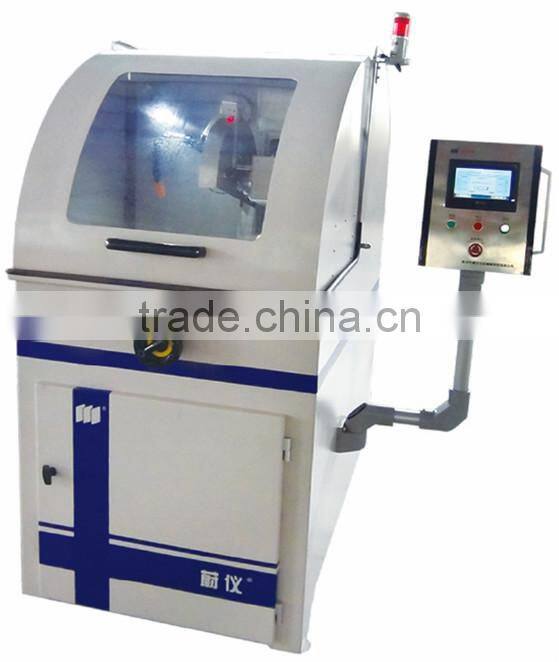

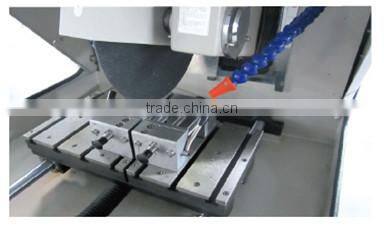

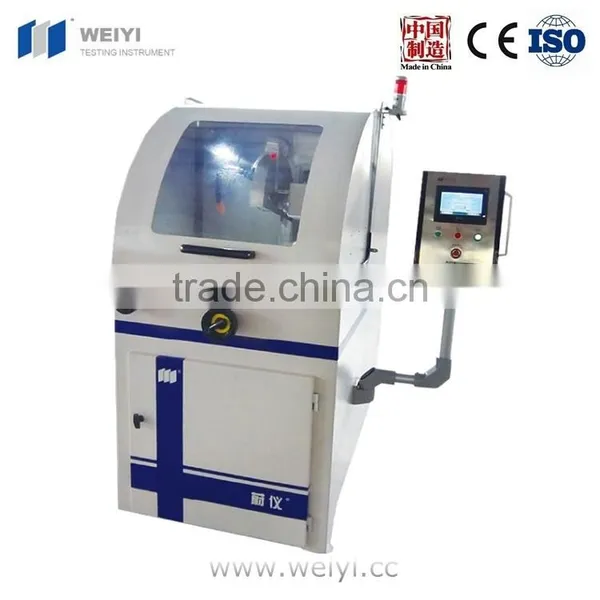

Help CenterLDQ-350A Sample Cutter Machine
Related Products
-
LDQ-350A Automatic Crew Cutting MachineUS$ 999 - 19,999MOQ: 1 Set -
LDQ-350A Electronic Components Enhanced Precision Metallographic Sample Cutting MachineUS$ 999 - 19,999MOQ: 1 Set
-
LDQ-350A High Speed High Precision Metallographic Sample Cutting Machine Metal Cutting MachineUS$ 999 - 19,999MOQ: 1 Set
-
LDQ-350A Sample Cutter for MetalUS$ 999 - 19,999MOQ: 1 Set
-
SQ-100 Metallographic Sample Cutter MachineUS$ 399 - 2,999MOQ: 1 Unit
Application
This machine is a kind of large automatic/manual metallographic cutting machine,which adopts Siemens PLC, high reliability,and strong controlling ability.The machine has touch-screen in the human-computer interaction aspects and has high precision stepper motor.The machine is suitable for cutting various metal,non-metallic materials,in order to observe the material metallographic,core organization.It is one of the important equipment in the labs.
Technical Parameters
| Model | LDQ-350A |
| Cutting pattern | chop-cutting,pulse cutting |
| Maximum movement distance in Y axis | 200mm |
| Feed speed in Y axis | 0.001-1mm/s |
| MAX cutting diameter | Φ110mm |
| Motor: | 5KW |
| Input voltage | 380V 50HZ |
| Dimension | 1420mm x1040mm x1680mm |
| Net weight | 500kg |
Model: MoPao 3S MP-1B MP-2B BG-32 MPJ-1A
Enter to Related website on Alibaba by Clicking product photo
Model: ZXQ-5 ZXQ-1 XQ-2B
Enter to Related website on Alibaba by Clicking product photo
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
Contact Information
Contact Person: Ichuka Lang
Skype: ichuka.lang
We Chat: yixiuka001
Mobile: 86 186 6005 6893/133 2515 5105
126 Email: yixiuka001(@126.com)
Send Inquiry to This Supplier
