SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing

SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing thumbnail-1
SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing thumbnail-2
SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing thumbnail-3
SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing thumbnail-4
SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing photo-1
SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing photo-2
SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing photo-3
SYJ-150 Low Speed Diamond Saw for the Experimental Sample Testing photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Applicable Material:
Crytal, Glass, Metal, plastic, Rubber, Stone
Cutting Thickness:
0-15mm
Cutting Speed:
20--600RPM stepless speed adjust
Contact Supplier Request Quote Chat Now
Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Applicable Material Crytal, Glass, Metal, plastic, Rubber, Stone
Cutting Thickness 0-15mm
Cutting Speed 20--600RPM stepless speed adjust
CNC or Not No
Place of Origin Shandong, China
Brand Name weiyi
Model Number SYJ-150 Low Speed Diamond Saw
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

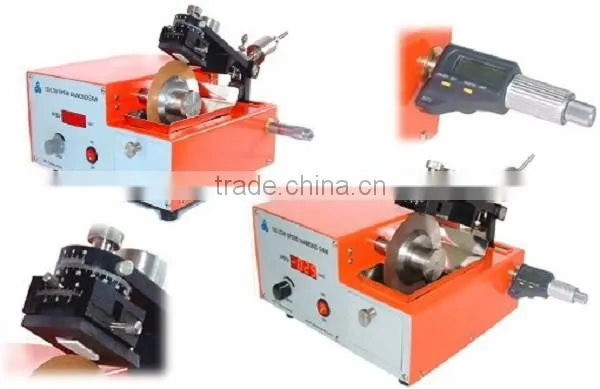

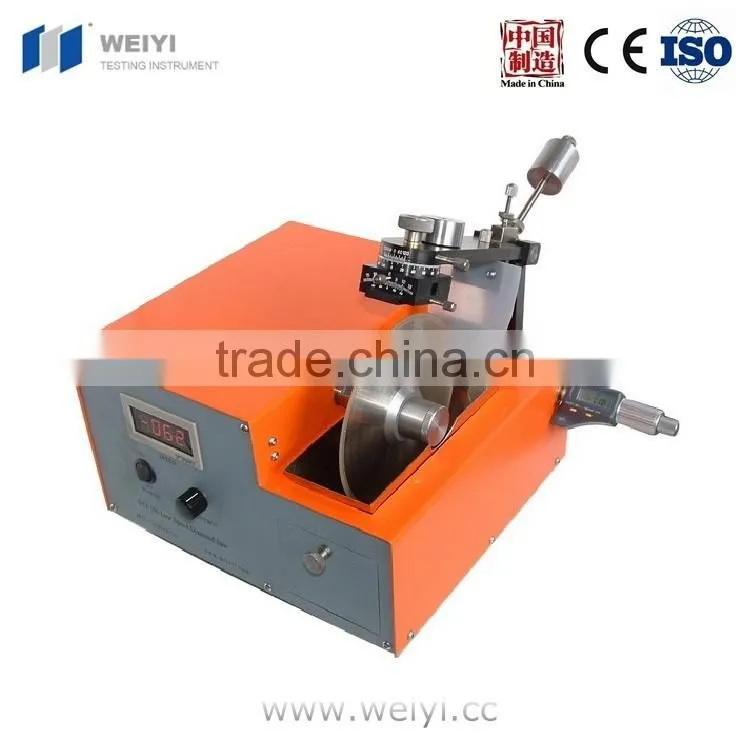

SYJ-150 Low Speed Diamond Saw for the experimental sample testingSYJ-150 Low Speed Diamond Saw for the experimental sample testing

Detail





Model:

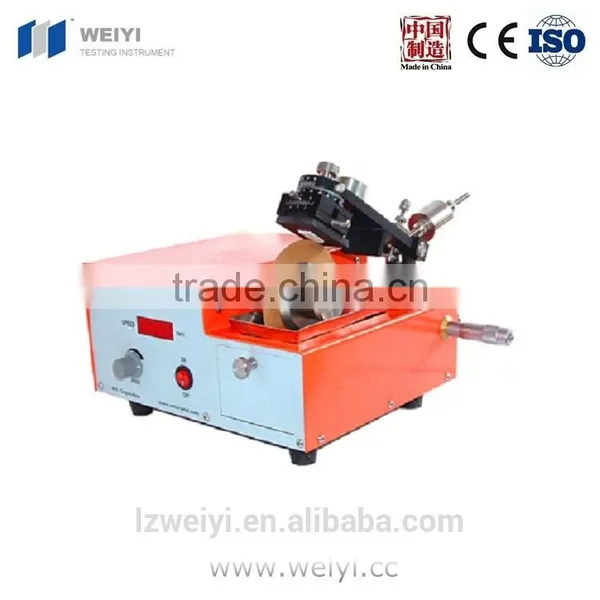

SYJ-150 Low Speed Diamond Saw

Brief Introduction:

SYJ-150 Low Speed Diamond Saw is CE certified, used to precision cut the material samples for researching. Such as crystal, ceramic, glass, rock, mineral, refractory materials, PCB board, metal, building materials, plastic samples etc.



Main

Feature:

Used for precision cutting the material samples, high torque, running steady, can cut the thickness of various materials(0.1mm). Suitable for samples' follow-up thinning, polishing and various operation.

Technical

  Parameter:

1. Speed range:20-600RPM stepless speed adjust

2. Voltage:AC 110V/220V
3. Position accuracy:0.01mm(Mechanical and digital display, digital display should be purchased in selection)
4. Two dimension, angle adjustable:spinning 360°
5. Travel distance:50mm(Fine adjustment travel distance 25mm)
6. Max dia. wafer blade:100mm(4 inch)
7. Automatic shut off:allowed unattended
8. Digital display axis RPM

Specification:

Size:360×260×260mm  Weight:17.5kg

Standard Accessories:

1

Adjustment sample holder

1set

2

Mini-vise





1 pc



3

O-ring of driving Motor

2 pcs



4

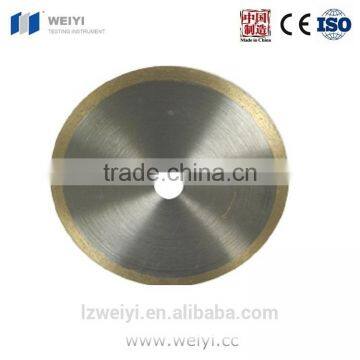

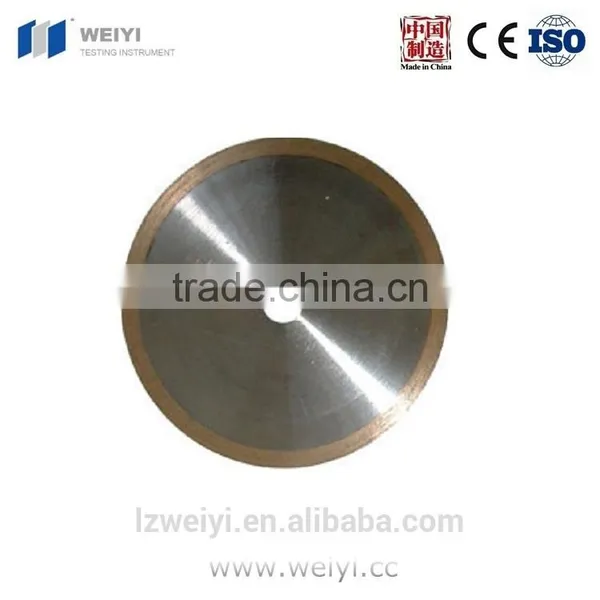

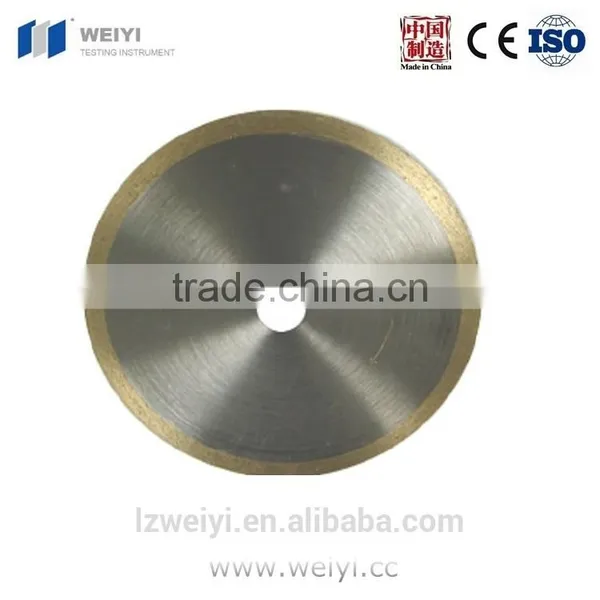

Full sintered diamond blade(Φ100mm×12.7mm×0.35mm)

1 pc



5

 Electroplating diamond blade(Φ100mm×12.7mm×0.4mm)

2 pcs



6

Sic blade(Φ100mm×12.7mm×0.4mm)

10 pcs



7

Al2O3 blade(Φ100mm×12.7mm×0.4mm)

10 pcs

8

Resin ceramic block(50mm×50mm×12mm)

2 pcs

9

Aluminum plate (25mm×50mm×7mm)

2 pcs

10

High quality wax bulks for samples bounding

2 pcs

11

Blade clamps(Φ62mm, Φ46mm, Φ35mm)

3 set



Optional Accessories :

1. Sintered diamond Blade:Φ100mm×12.7mm×0.33mm
2. Electroplating diamond blade:Φ100mm×12.7mm×0.4mm
3. Sic blade:Φ100mm×12.7mm×0.4mm
4. Al2O3 blade:Φ100mm×12.7mm×0.4mm
