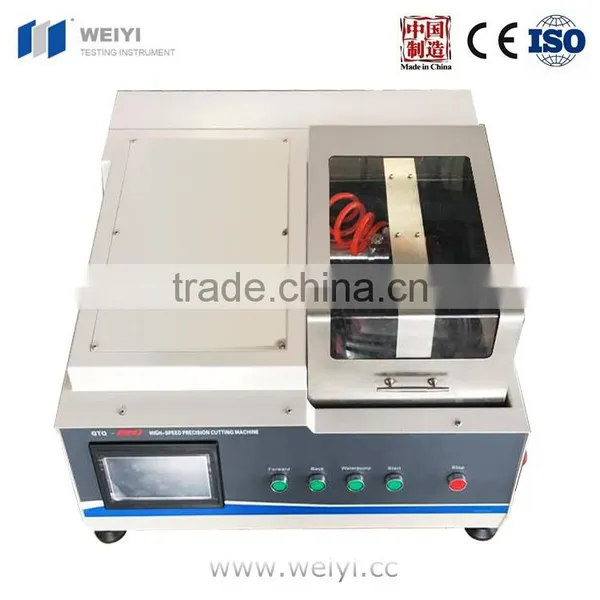

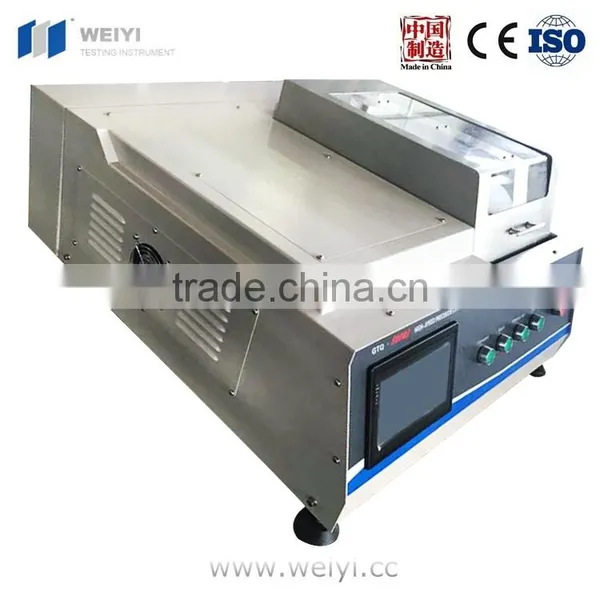

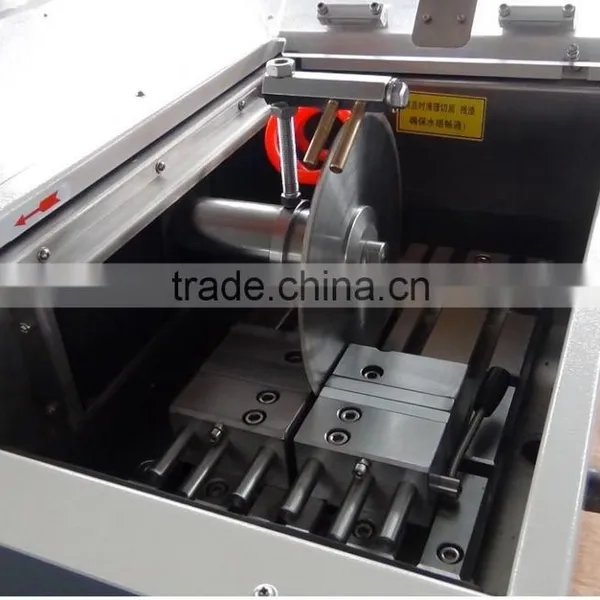

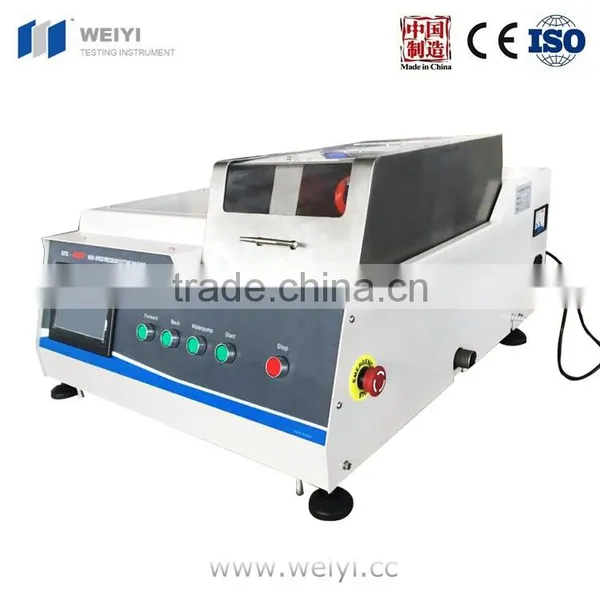

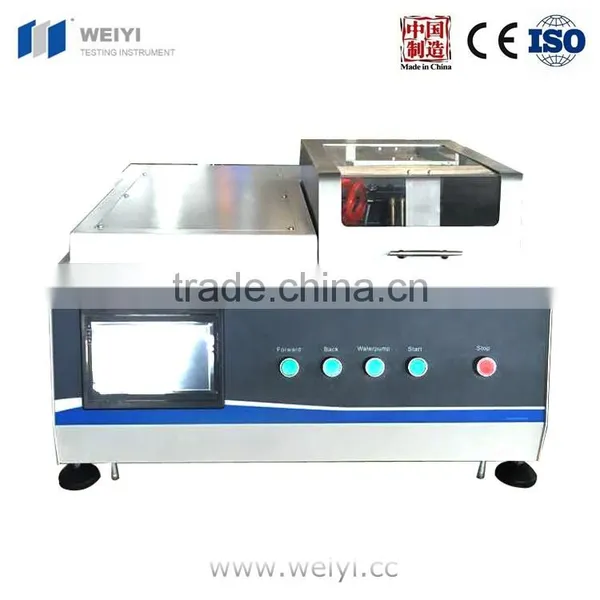

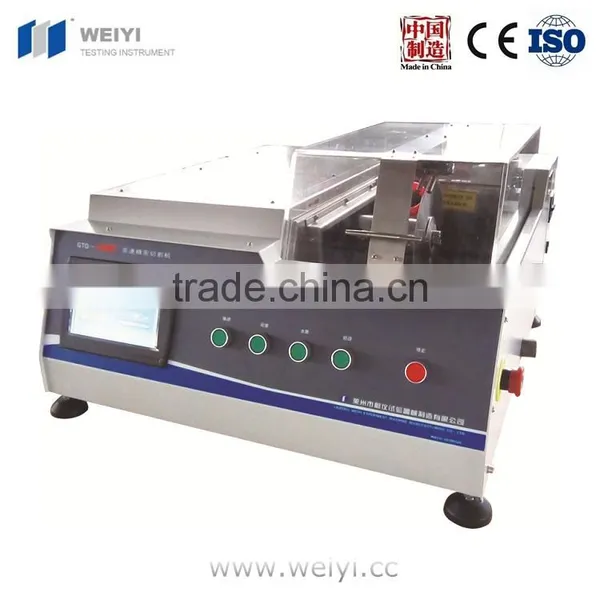

GTQ-5000B metallographic precision cutting machine
Application
GTQ-5000B Precision cutting machine is suitable for metal, electronic components, ceramic materials, crystals, carbide, rock samples, ore samples, concrete, organic materials, biological materials (teeth, bone) and other materials for precise cutting without distortion .
The device can be a continuous sheet cutting; positioning accuracy is high; speed range large; cutting ability; built-in cooling system; can be pre-set feed speed; menu-driven control; liquid crystal display; There are two locations you can clamp; nine kinds of Fixed cutting method, the user can freely define one kinds of cutting methods; enclosed cutting chamber with safety switch. Is the industrial and mining enterprises, research institutes, high-quality sample preparation is one of the ideal equipments.
Technical Parameters
| Model | GTQ-5000B |
| Feed speed | 0.01-3mm/s |
| Wheel speed | 500-5000r/min |
| MAX cutting diameter | Φ60mm |
| Input voltage | 220V 50HZ |
| Maximum stroke | Y 200mm |
| Cutting wheel size | Φ200mm x1mm x32mm |
| Motor: | 1.5KW |
| Dimension | 820mm x735mm x435mm |
| Net weight | 180kg |
Model: MoPao 3S MP-1B MP-2B BG-32 MPJ-1A
Enter to Related website on Alibaba by Clicking product photo
Model: ZXQ-5 ZXQ-1 XQ-2B
Enter to Related website on Alibaba by Clicking product photo
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.
Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
