China 6*4 3axle dump trucks 20 ton truck for sale

1 Cabinet material: edge 4mm bottom 5mm China wuhan steel quality carbon steel. Durable and be resistant against the rock’s smash. The main parts adopt the imported steel sheet, which promises the strength of the whole carriage is 3.2 times as strong as the common ones.

2. Light weight: The weight of the mine rimula dump truck is 1.6-2.5 tons lighter than the common dump trucks, which saves the cost of the diesel fuel $4000 every year.

3. Low gravity: More stable and effectively reduce the abrasion of the tires.

4. Unique structure: The main part of the carriage is pressed out of one entire sheet in one time. Therefore, the welded rips are greatly reduced so that the strength improved a lot.

5. Special hydraulic system: Marvelous appearance and the fast lifting/lowing function.

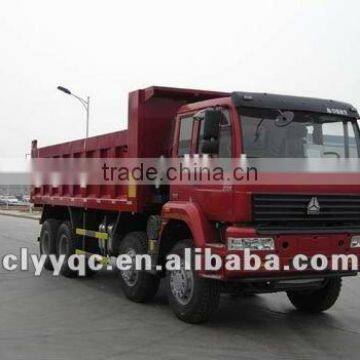

SINOTRUCK Dump truck

HOWO

Chassis model

ZZ3257N3647C

Max. running speed(km/h)

90

Drive System

6×4

Kerb weight(kg)

13060

Total mass(kg)

25000

Overall dimension(mm)

8400*2500*3300

Cargeo body dimensions (mm)

Length

5600

Width

2300

Height

 1500

Bottom

8

Side

6

Capability (CBM)

19.32

Wheel base (mm)

3625+1350,3600+1400

Overhang (mm)  (F/R)

1500/2240,1500/2215

Track width (mm)  (F/R)

 1939 / 1830

Engine

WD615.95E Diesel engine Euro3

Rated output  horsepower

336 hp

Gearbox

HW15710

Steering

ZF 8089

Cab

HOWO Cabin with A/C & single sleeper

Axle

7000/18000

Tire(RADIAL TYRE)

11.00-20,11.00R20, 12.00-20,12.00R20
