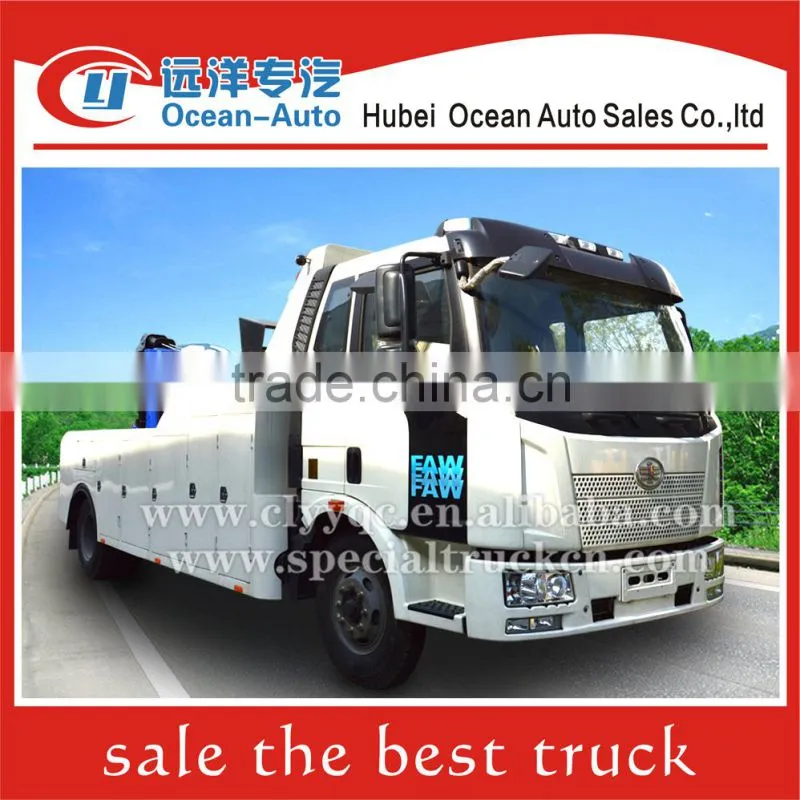

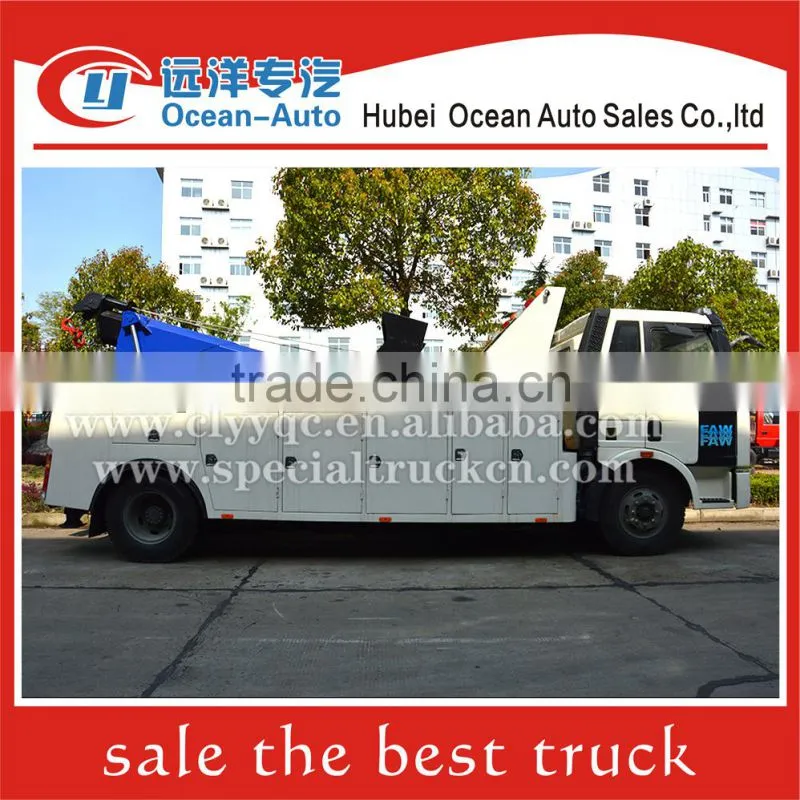

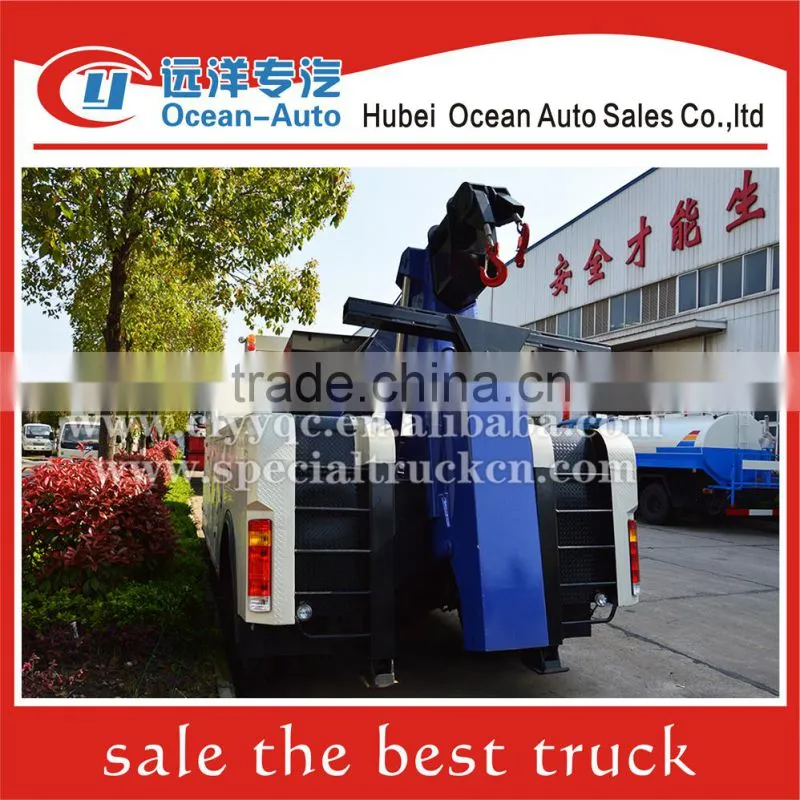

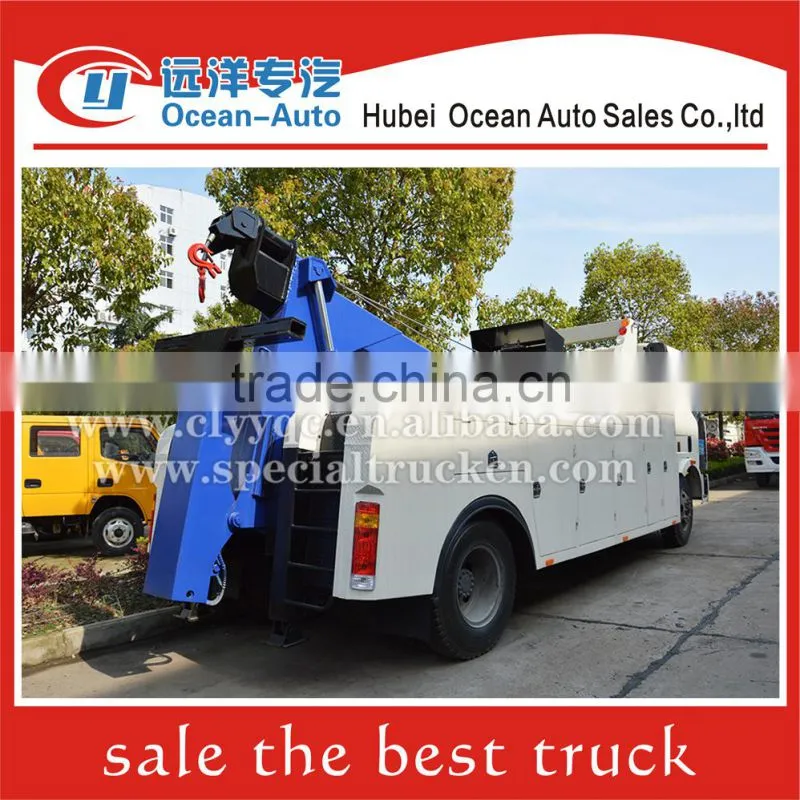

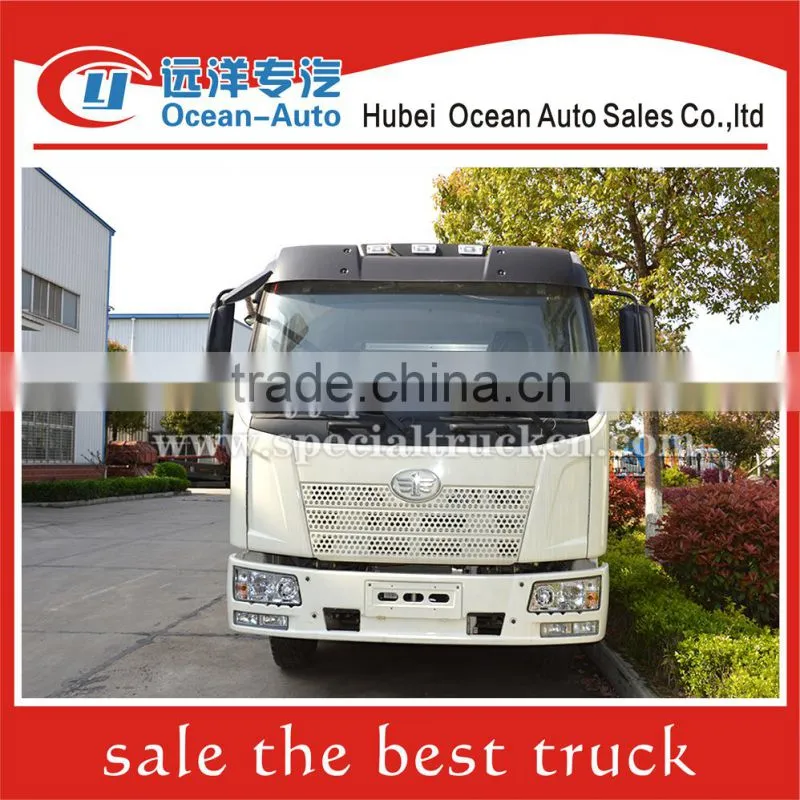

FAW 4x2 EURO 4 Wrecker Towing Truck for Sale

Main specification

Product model and name

JDF5160TQZC4  wrecker towing truck

Gross weight(Kg)

15795

Drive type

4X2

Curb weight(Kg)

11800

Overall dimension(mm)

8285X2495X3050

Approach/departure angle(°)

18/17

Cab seats

3

Axle No.

2

Front/rear hang(mm)

1400/1585

Axle load(Kg)

5800/9995

Wheelbase(mm)

5300

Max speed(Km/h)

95

Chassis specification

Chassis model

CA1160P62K1L4A2E4

Manufacturer

China FAW Group Co.,Ltd

Brand name

FAW

Dimension(mm)

8250×2349×2705

Tyre specification

9.00R20

Tyre No.

6

Steel spring number

7/10+3

Front track base(mm)

1800

Fuel type

Diesel

Rear track base(mm)

1800

Emission standard

Euro 4

Transmission

6 forward gear,1 reverse gear(manual)

Cab

J6M flat top, Luxurious interior trim and seats, sleeper with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

BF6M2012-18E4R

China FAW Group Co.,Ltd

6060

139(190HP)

Performance

Lifting system

Max lifting capacity(kg)

8000

Fully extended max lifting capacity(kg)

5000

Effective length of the bracket arm(mm)

1170 to 2420

Bracket arm flexible stroke(mm)

1250

Hoisting system

Max hoisting capacity(kg)

12000

Farthest hoisting capacity(kg)

5750

Max hoisting height(mm)

4830

Winch

QTY(piece)

2

Rated traction for each(kN)

100

Steel wire rope diameter(mm)

16

Steel wire rope length(m)

30

Instruction

The wrecker truck is equipped with lifting, pulling and hoisting etc. on the basis of special purpose chassis.It has the function of lifting, pulling, hoisting , lift platform and load transportation and others.It is mainly used for road fault vehicles,city peccancy vehicles and emergency rescue etc.The wrecker truck is widely used in highway,the traffic police, airport, wharf, auto repair industry and highway departments etc.It can be used to clean up the accident, fault, violation vehicles etc .timely and quickly.

1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need.

2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
