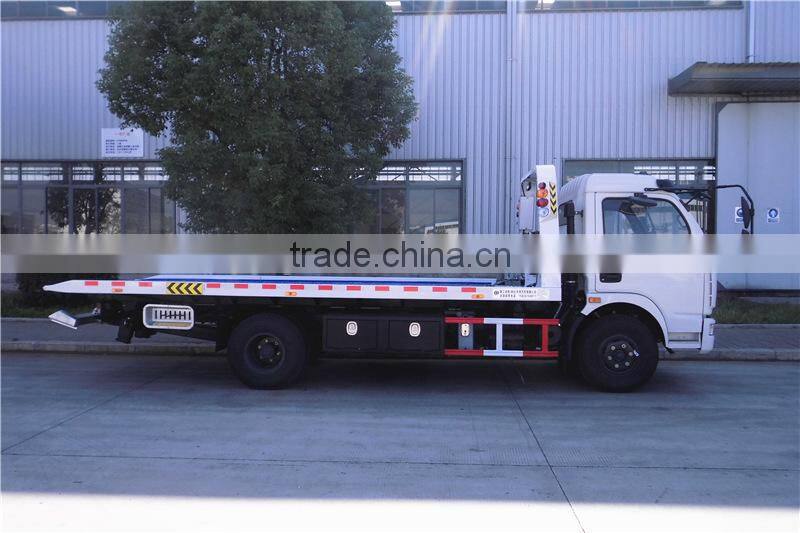

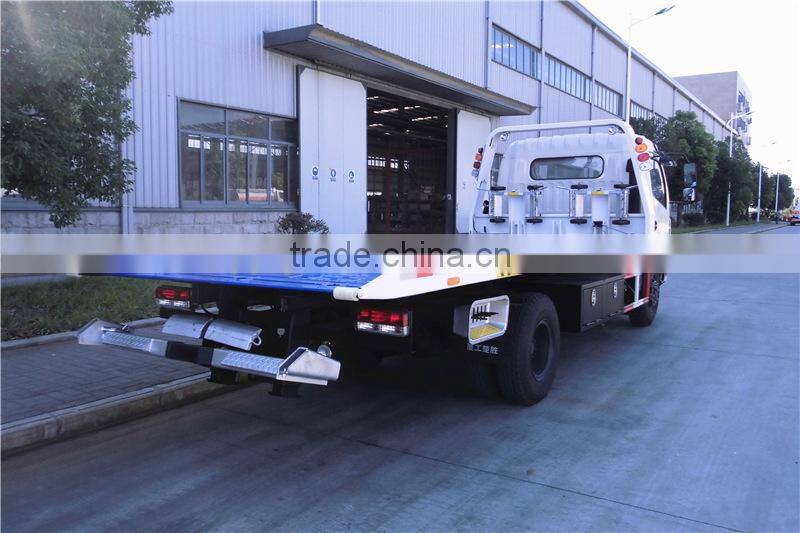

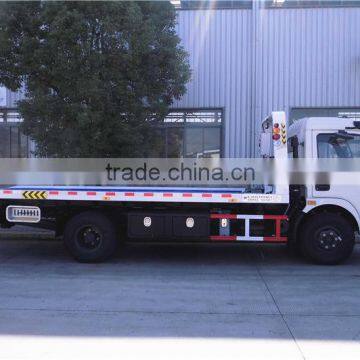

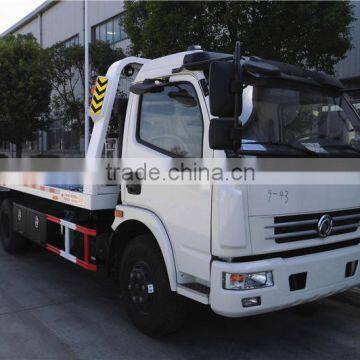

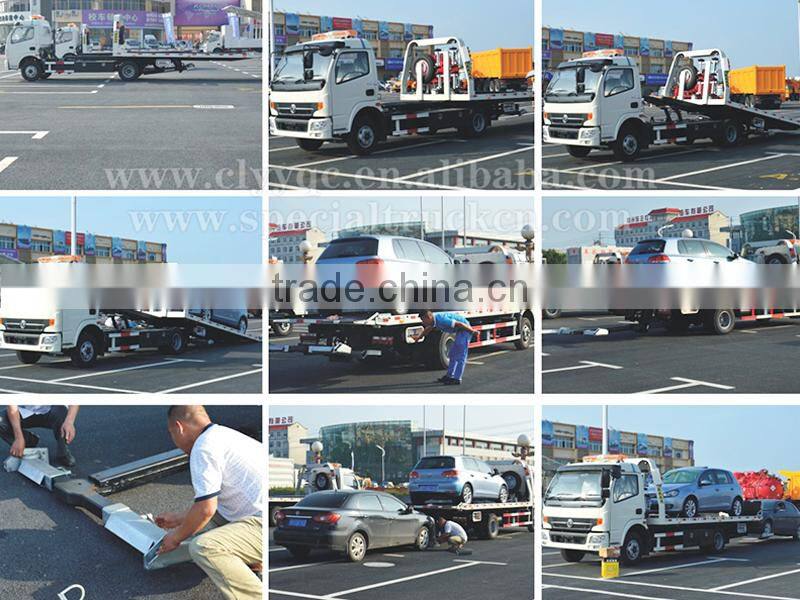

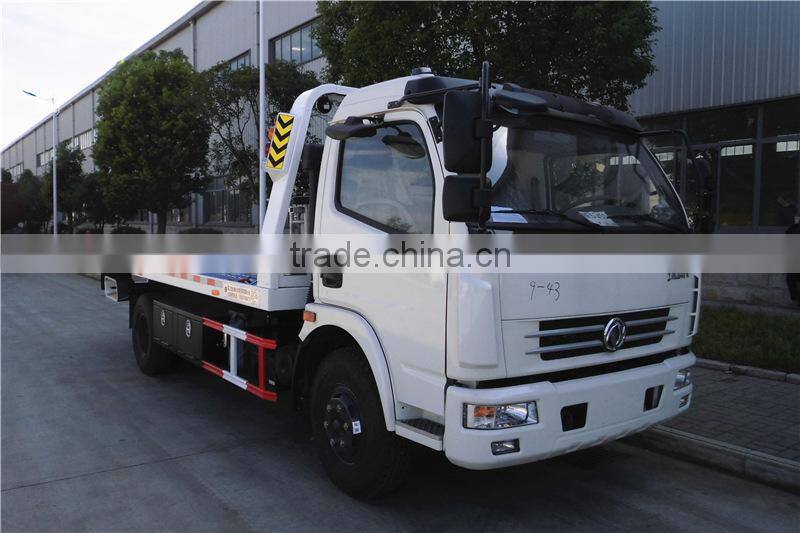

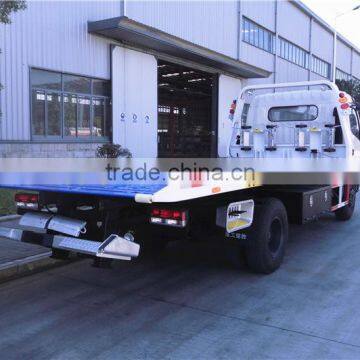

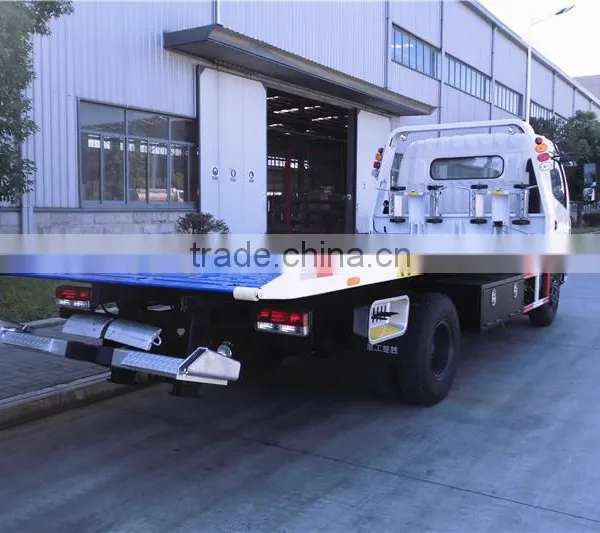

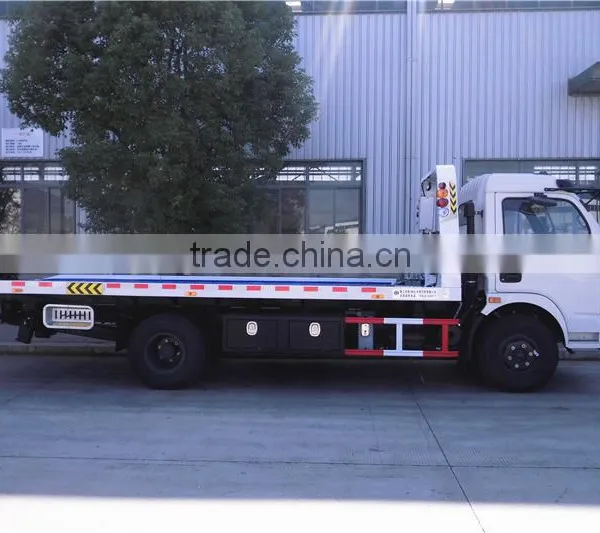

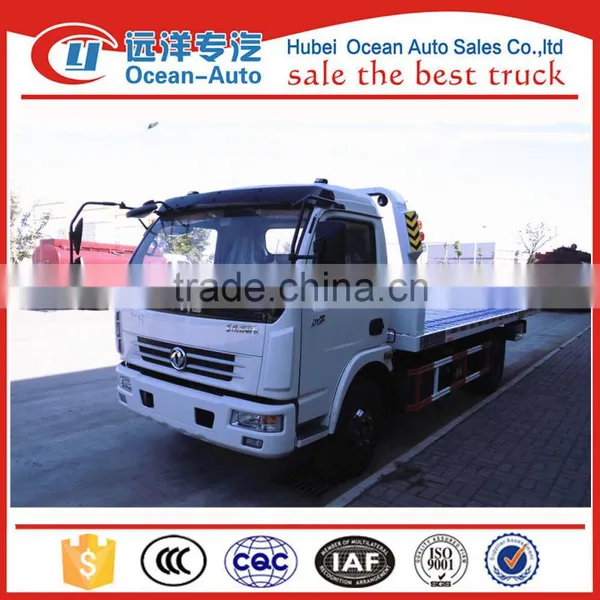

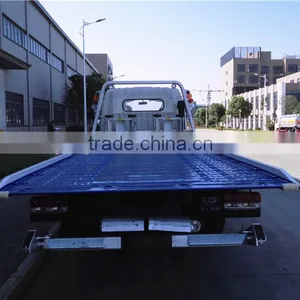

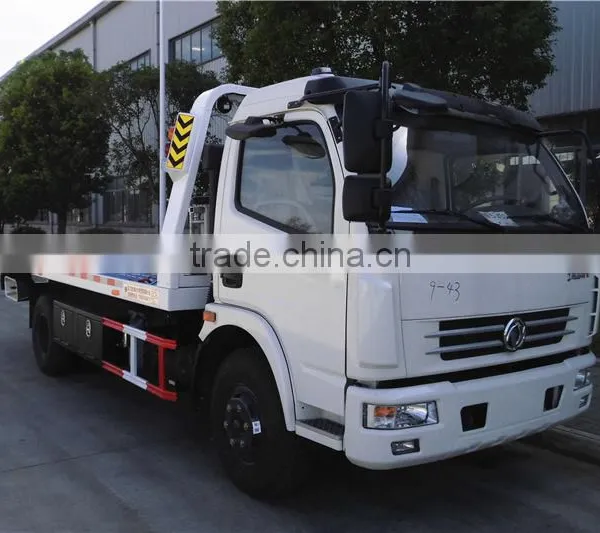

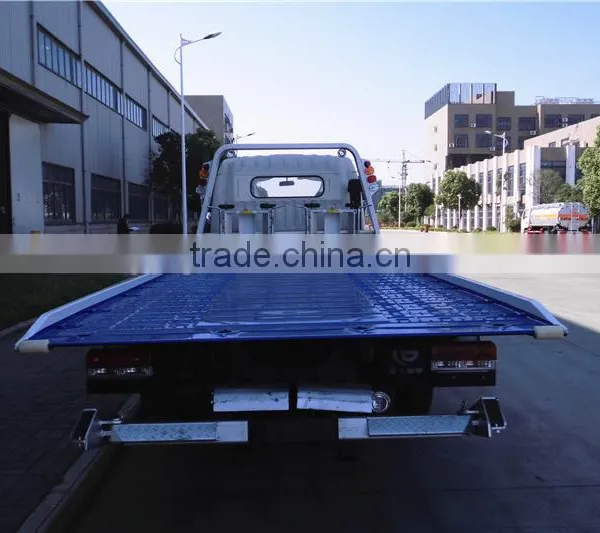

Dongfeng RHD 4TON Road Wrecker Truck

Main specification

Product model and name

JDF5071TQZ DLK Flat Wrecker truck

Gross weight(Kg)

7490

Drive type

4X2

Curb weight(Kg)

5495

Overall dimension(mm)

7420×2320×2540

Approach/departure angle(°)

20/12

Cab seats

3

Axle No.

2

Front/rear hang(mm)

1180/2440

Axle load(Kg)

3090/4400

Wheelbase(mm)

3800

Max speed(Km/h)

95

Horsepower

120HP

Chassis specification

Chassis model

EQ1070TJ9AD3

Manufacturer

Dongfeng Motor Co., Ltd

Brand name

Dongfeng

Dimension(mm)

6695×2285×2350

Tyre specification

7.50R16

Tyre No.

6

Steel spring number

11/9+7,8/10+7

Front track base(mm)

1835,1750

Fuel type

Diesel

Rear track base(mm)

1640,1586

Emission standard

Euro 3

Transmission

5 forward gear, 1reverse gear

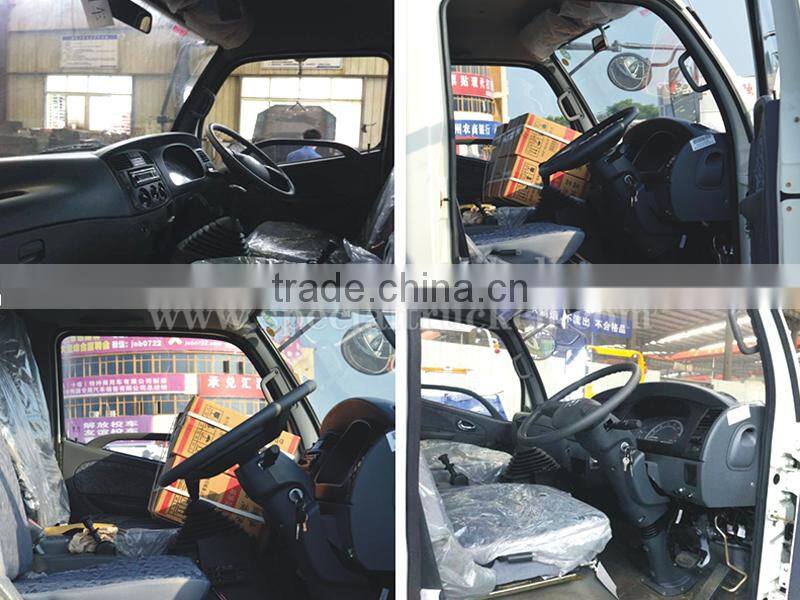

Cab

White red or other colors as your requests.

Luxurious interior trim with dashboard and air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

CY4102-E3C

Dongfeng Chaoyang Chaochai Power Co.,Ltd

3856

91(120HP)

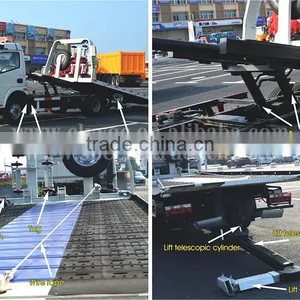

Performance

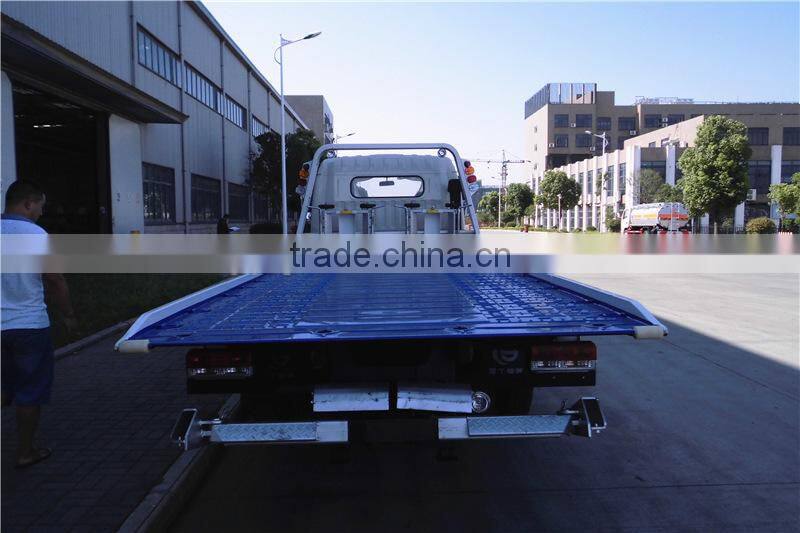

Flat length(mm)

5600

Flat width(mm)

2300

Max flatbed carrying capacity(Kg)

4000

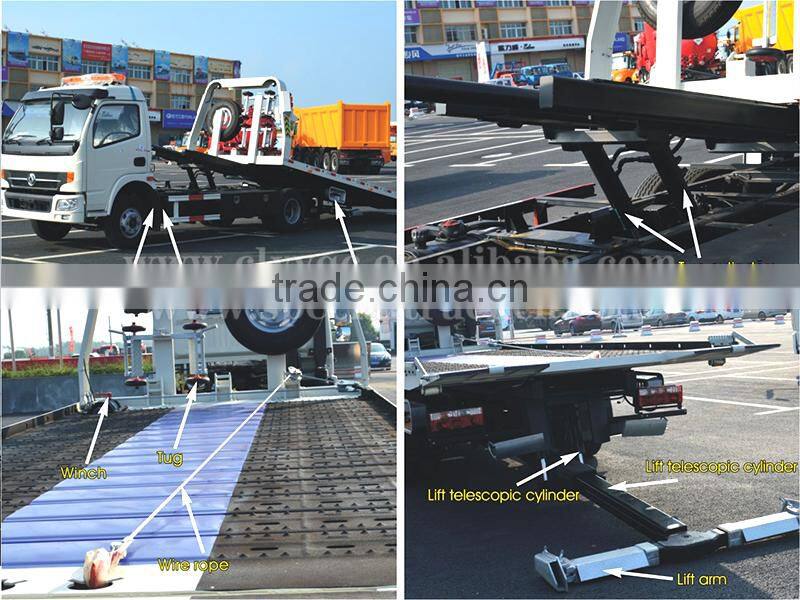

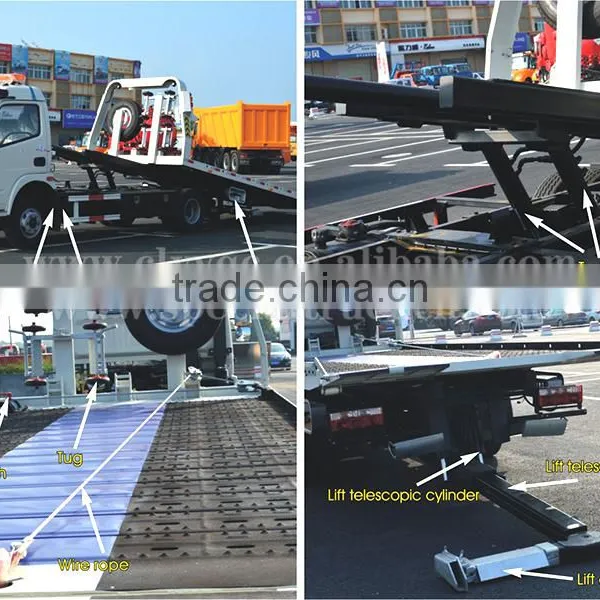

Max lift weight(Kg)

3000

Vehicle accessories

Training wheels, Steel wire rope, bandage, Alarm lamp, Tyre Covers, Jack, spare tyre ,drivers’ tools
