Beiben euro4 8X4 tow wrecker truck for sale
Main specification | |||||||||
Product model and name | CSC5310TQZNDZ tow wrecker truck | ||||||||
Gross weight(Kg) | 31000 | Drive type |
| ||||||
Curb weight(Kg) | 29370 | Overall dimension(mm) | 11150×2500×3500 | ||||||
Approach/departure angle(°) | 23/21 | Cab seats | 2 | ||||||
Axle No. | 4 | Front/rear hang(mm) | 1515/1935 | ||||||
Axle load(Kg) | 6500/6500/18000 | Wheelbase(mm) | 1950+4300+1450 | ||||||
Max speed(Km/h) | 90 |
|
| ||||||
Chassis specification | |||||||||
Chassis model | ND13104D43J7 | Manufacturer | Beiben Heavy Duty Truck Group Co.,Ltd | ||||||
Brand name | Beiben | Dimension(mm) | 11930×2500×3250 | ||||||
Tyre specification | 12.00R20 16PR | Tyre No. | 12 | ||||||
Steel spring number | 12/12/13 | Front track base(mm) | 2045/2045 | ||||||
Fuel type | Diesel | Rear track base(mm) | 1872/1872 | ||||||
Emission standard | Euro 4 | Transmission | 12 forward gear,1 reverse gear(manual) | ||||||
Cab | V3 New style luxurious cab, electric window regulator, central control door lock, PXD-B dashboard with air condition. | ||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||||
WP10.336E40 | Weichai Power Co.,Ltd | 9726 | 247(336HP) | ||||||
Performance | |||||||||
Lifting system | Max lifting capacity(kg) | 40000 | |||||||
Fully extended max lifting capacity(kg) | 7310 | ||||||||
Effective length of the bracket arm(mm) | 1460 to 2950 | ||||||||
Bracket arm flexible stroke(mm) | 1850 | ||||||||
Hoisting system | Max hoisting capacity(kg) | 45000 | |||||||
Farthest hoisting capacity(kg) | 9000 | ||||||||
Max hoisting height(mm) | 6400 | ||||||||
Winch | QTY(piece) | 2 | |||||||
Rated traction for each(kN) | 100 | ||||||||
Steel wire rope diameter(mm) | 18 | ||||||||
Steel wire rope length(m) | 45 | ||||||||
Instruction | |||||||||
The wrecker truck is equipped with lifting, pulling and hoisting etc. on the basis of special purpose chassis.It has the function of lifting, pulling, hoisting , lift platform and load transportation and others.It is mainly used for road fault vehicles,city peccancy vehicles and emergency rescue etc.The wrecker truck is widely used in highway,the traffic police, airport, wharf, auto repair industry and highway departments etc.It can be used to clean up the accident, fault, violation vehicles etc .timely and quickly. | |||||||||

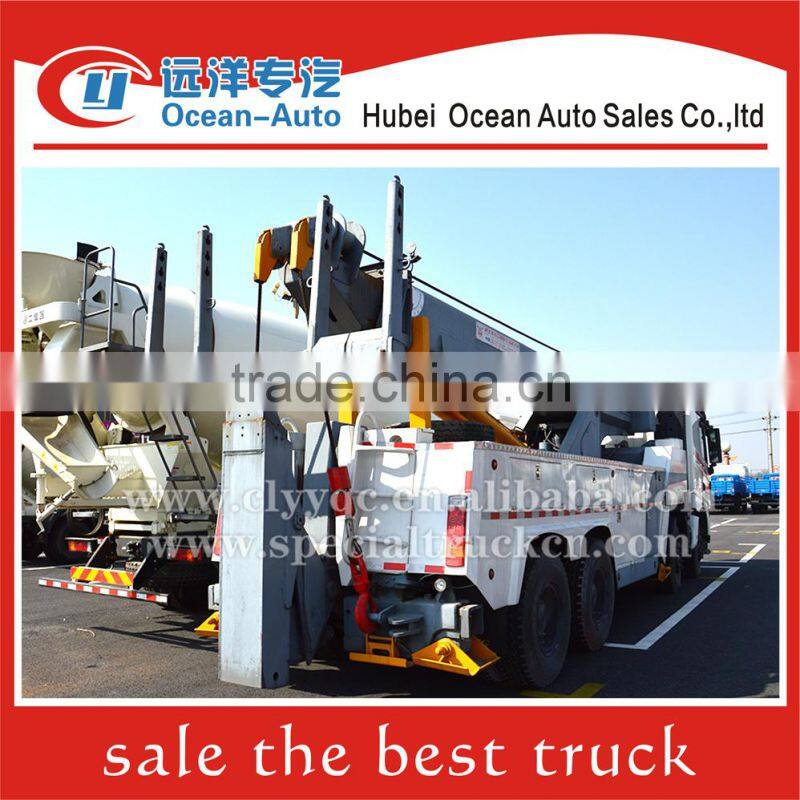

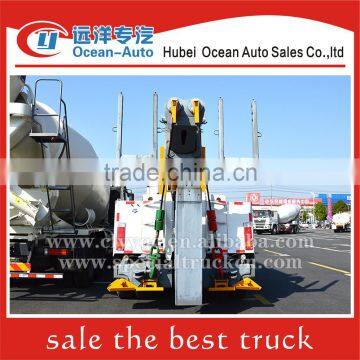

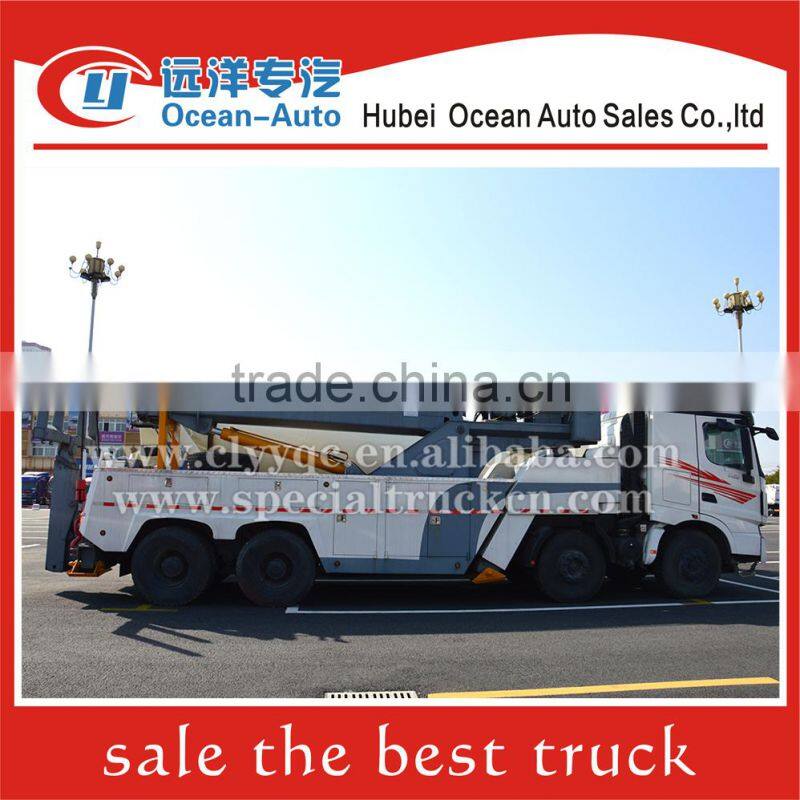

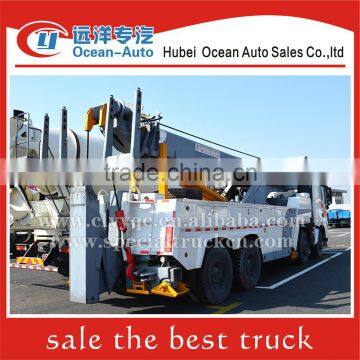

Beiben Euro4 8X4 tow wrecker truck imag
Tow wrecker truck exported to Panama city
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.After-sales warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need. 2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request. | ||||||||
