JAC 10cbm 10000 liters water transport tanker truck for sale
Main specification | |||||||||||
Product model and name |
DTA5160GSSL4 water transport tanker truck for sale |
||||||||||
Gross weight(Kg) |
15950 |
Drive type |
4X2 |
||||||||
Payload(Kg) |
10000 |
Overall dimension(mm) |
8320X2495X3080 |
||||||||
Curb weight(Kg) |
5755 |
Cab seats |
3 |
||||||||
Approach/departure angle(°) |
18/13 |
Front/rear hang(mm) |
1530/2290 |
||||||||
Axle No. |
2 |
Wheelbase(mm) |
4500 |
||||||||
Axle load(Kg) |
5950/10000 |
Max speed(Km/h) |
98 |
||||||||
Chassis specification | |||||||||||
Chassis model |
HFC1166K1R1ZF |
Manufacturer |
Anhui Jianghuai Auto Co.,Ltd |
||||||||
Brand name |
JAC |
Dimension(mm) |
7030X2495X3610 |
||||||||
Tyre specification |
9.00R20 |
Tyre No. |
6 |
||||||||
Steel spring number |
9/9+7 |
Front track base(mm) |
1830 |
||||||||
Fuel type |
Diesel |
Rear track base(mm) |
1810 |
||||||||
Emission standard |
Euro 4 |
Transmission |
6 forward gear,1 reverse gear |
||||||||
Cab |
Half height top cab with sleeper. luxurious interior trim with seats, power steering, Air condition is optional |
||||||||||
Engine model |
Engine manufacturer |
Displacement(ml) |
Power(Kw) |
||||||||
YC6J180-42 |
Guangxi Yuchai Machinery Co.,Ltd |
6500 |
132 |
||||||||
Performance | |||||||||||
Tank volume(m³) |
10 to 15(10000 to 15000liter) |
Tank material |
Carbon steel Q235 or stainless steel |
||||||||
Water pump model |
80QZF-60/90N |
Water pump flow(m³/h) |
60 |
||||||||
Watering width(M) |
≥14 |
Water cannon range (M) |
≥28 |
||||||||
Feature and Application | |||||||||||
|
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M. 4).Equipped with fire coupling, flow valves, filter screen and water level gauge. 5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc. | |||||||||||

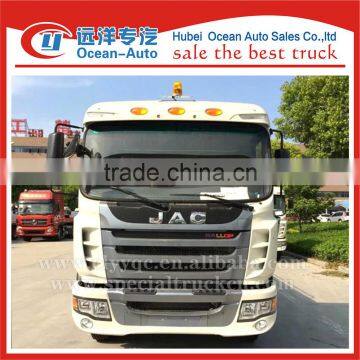

JAC 10CBM 10000liters water transport tanker truck image
Detailed parts of water transport tanker truck
Water transport tanker truck volume from small to big image
Packaging &Shipping
|
1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need. 2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request. | ||||||||
Customer visiting
Our services
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.After-sales warranty to solve our clients’ worries when purchasing | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
