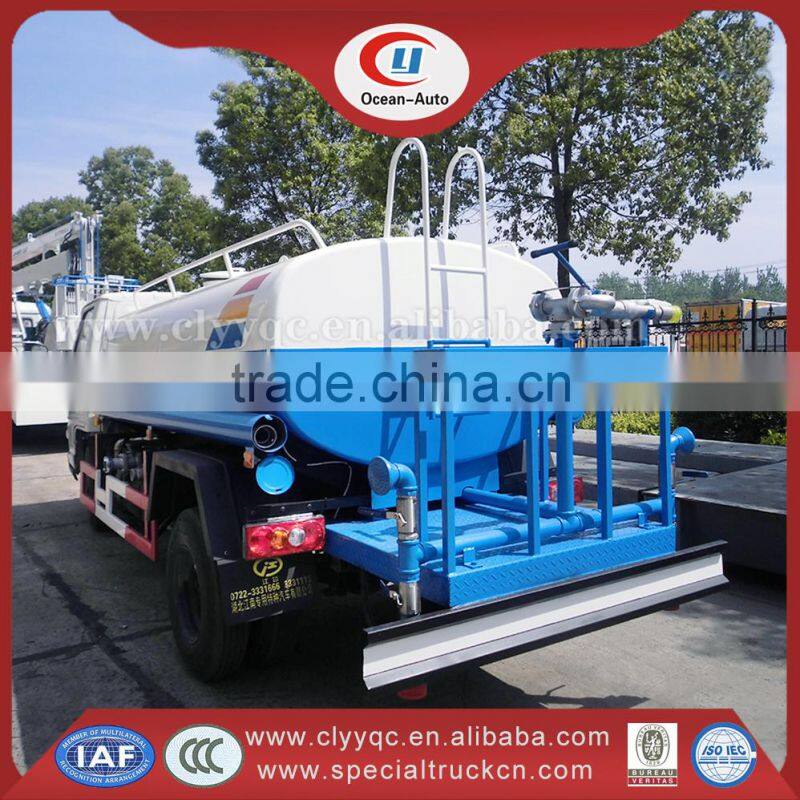

JMC diesel fuel 5ton water tanks trucks prices

Main specification

Product model and name

CLQ5061GSS4JX water tanks trucks prices

Gross weight(Kg)

5880

Drive type

4X2

Payload(Kg)

3400

Overall dimension(mm)

5955×1980×2300

Curb weight(Kg)

2350

Cab seats

3

Approach/departure angle(°)

27/20

Front/rear hang(mm)

1065/1530

Axle No.

2

Wheelbase(mm)

3360

Axle load(Kg)

2265/3615

Max speed(Km/h)

100

Chassis specification

Chassis model

JX1061TG24

Manufacturer

JMC Motors Co.,Ltd

Brand name

JMC

Dimension(mm)

5865×1880×2020

Tyre specification

7.00R16

Tyre No.

6

Steel spring number

7/5+5

Front track base(mm)

1385

Fuel type

Diesel

Rear track base(mm)

1425

Emission standard

Euro 4

Transmission

5 forward gear,1 reverse gear

Cab

Single row and luxurious interior trim with seats, power steering and air condition

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

JX493ZLQ4

JMC Motors Co.,Ltd

2771

80

Performance

Tank volume(m³)

4 or 5(4000 or 5000liters)

Tank material

Carbon steel Q235

Water pump model

65QZ40/45

Water pump flow(m³/h)

40

Watering width(M)

≥14

Water cannon range (M)

≥28

Feature and Application

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
