Dongfeng 8x4 truck fuel tank from hubei factory with 30cbm capacity

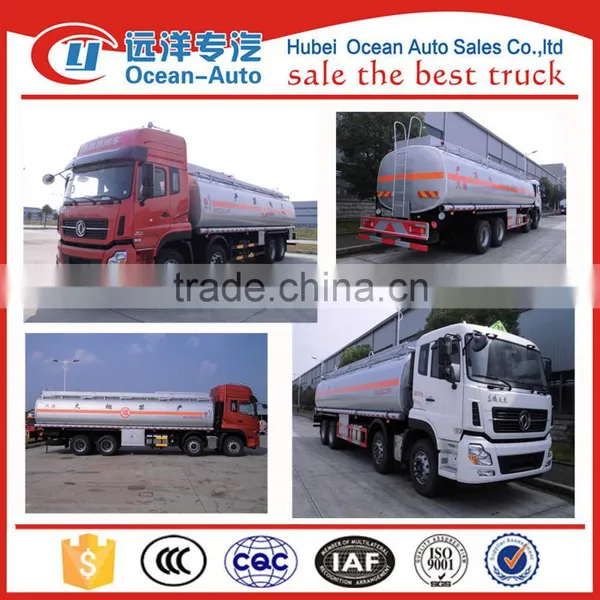

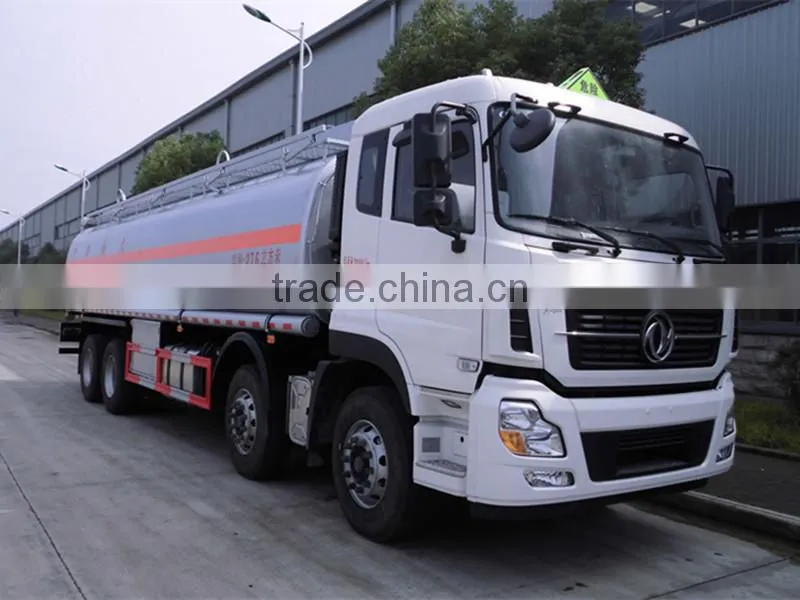

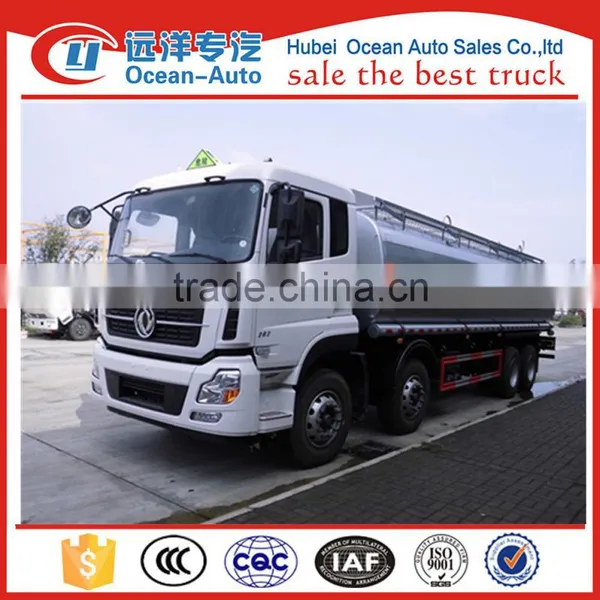

Dongfeng 8x4 truck fuel tank from hubei factory with 30cbm capacity ----- photo show :
Dongfeng 8x4 truck fuel tank from hubei factory with 30cbm capacity ----- Paramater :
Main specifications | ||||||||
Product model,name |
DFL1311A4 fuel tanker |
|||||||
Gross weight(Kg) |
31000 |
Driving type |
8x4 |
|||||
Payload (Kg) |
17500 |
Overall dimension (mm) |
11990×2500×3300,3690 |
|||||
Curb weight(Kg) |
13305 |
Cab seats (man) |
3 |
|||||
Approach/departure angle (°) |
26/10 |
Front/rear hang(mm) |
1460/3030,1460/2980 |
|||||
Axle No. |
4 |
Wheelbase (mm) |
1950+4250+1300 |
|||||
Axle load(Kg) |
6500/6500/18000(dual spindle) |
Max speed(Km/h) |
80 |
|||||
Chassis specifications | ||||||||
Chassis model |
DFL1311A4 |
Manufacture |
Dongfeng Motor Co.,Ltd |
|||||
Brand name |
Dongfeng |
Overall dimension (mm) |
11475×2500×3030,3600,3690 |
|||||
Tire specification |
295/80R22.5 |
Tires No. |
13 |
|||||
Steel spring number |
8/8/10,3/3/4,9/9/10,9/9/13 |
Front track(mm) |
1940/1940 |
|||||
Fuel type |
diesel |
Rear track(mm) |
1860/1860 |
|||||
Emission standard |
Euro 3 |
Gear box |
12 forward gears and 2 reverse |
|||||
Cab |
D310 Flat top and double cab, gasbag shock the driver seat, single dashboard, with air conditioning |
|||||||
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|||||
L340 30 |
Dongfeng Cummins Engine Co., LTD |
8900 |
250 |
|||||
Performance | ||||||||
Tank capacity(Liter) |
32000 |
|||||||
Tank material |
Q235 carbon steel. |
|||||||
Transport medium |
Petrol or diesel. |
|||||||
Main Characteristic | ||||||||
|
A, with multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc. B, Oil pump is installed to suck or discharge oil, with high suction pressure and speed. C, according to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils. D, according to users’ needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves. | ||||||||
Dongfeng 8x4 truck fuel tank from hubei factory with 30cbm capacity ----- specification :
1. The material of our fuel tanker product is made of 4mm-6mm high-quality carbon steel from Wuhan steel company, according to national
standards for tanker production (also in accordance with European standards of production), abutting joint welding process. Elliptical or square round shape tank.
2. tank is made by butt-welding technical, inside the tanker, there are multi-plates of anti-wave, after tanker frmed, high-pressure gas tank leak
detection, so that the tank has a high strength, stable center of gravity, vehicle is safe and stable and so on.
3. after welding, using shot peening pre-treatment process to avoid corrosion and dust, paint is used advanced technology. Beautiful looks, durable.
4, according to customers’ needs, the pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter and some other functions.
5, according to users’ needs, can be designed as a single compartment or several compartments for store oil, chemicals, drinking water.
6. Depending on the application needs, you can choose to install heating pipes, insulation layer.
Insulation material is generally 50-100mm thickness; filling material can be used rock wool, polyurethane foam, aluminum silicate. Metal surface
insulation is 1.2mm cold plate, stainless steel sub-mirror or matte board, it is 1.0mm thick.
7 according to the needs, at the end or side of the tank, it can be installed 1-3 self-flow valve.
