Specifications
3 alxes 60000 liters LPG transportation semi-trailer truck6mm tank thickness
ISO9001:2008
carbon steel, stainless steel etc.

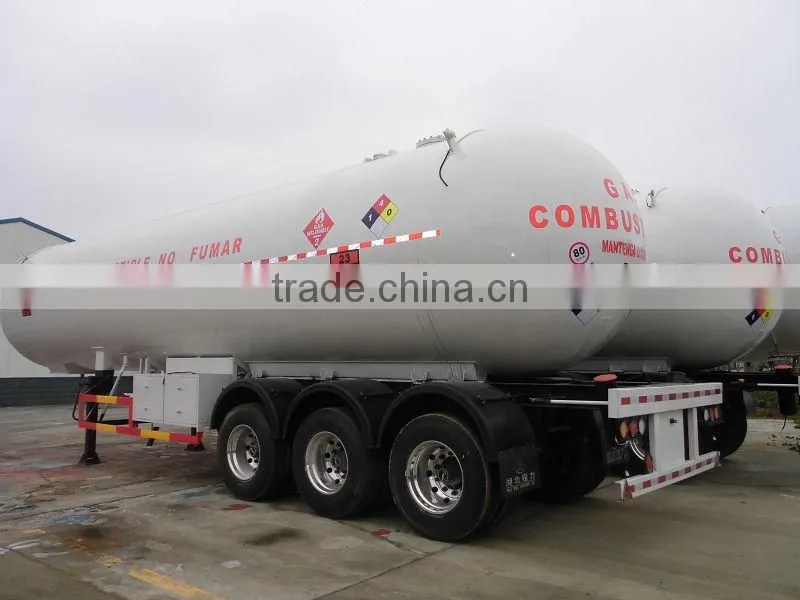

3 alxes 60000 liters LPG transportation semi-trailer truck
6mm tank thickness
ISO9001:2008
carbon steel, stainless steel etc.
Specifications
| Main specifications | |||
| Product model,name | CLW9409GYQ transportation semi-trailer truck(transportation media:propane) | ||
| Total weight(Kg) | 40000 | Tank capacity(m3) | 58.5 |
| Payload (Kg) | 24570 | Overall dimension(mm) | 13000×2500×3977 |
| Curb weight(Kg) | 15430 | Tank size(mm) | inner diameter×wall thickness×length:2470×12×12840 |
| Tank material | Q345R | Design pressure(Mpa) | 1.61 |
| Design temperature(°C) | 50 | Filling capacity per unit(t/m3) | 0.42 |
| Tank corrosion allowance(mm) | 1 | Axle load(Kg) | -/24000(three axles) |
| Approach/departure angle (°) | -/25 | Front/rear hang(mm) | -/1500 |
| Steel spring number | -/7/7/7 | Tractor | 90# |
| Number of axles | 3 | wheelbase(mm) | 7092+1310+1310 |
| Tires No. | 12 | Tire specification | 12R22.5 12PR |
| ABS | yes | Rear track(mm) | 1840/1840/1840 |
| Configuration instructions | Single out the liquid,doulbe side loading and discharge,Double valve boxes,single tool box,safety valve,thermometer,pressure gauge,emergency shut-off valves,fire extinguisher , anti-static grounding tape. | ||

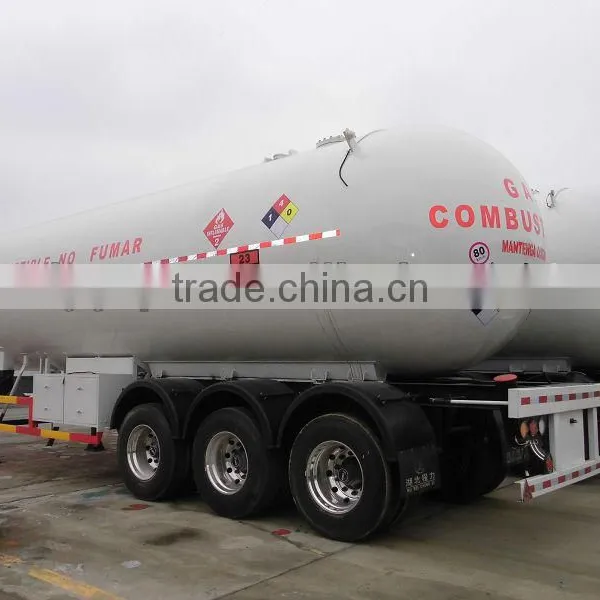

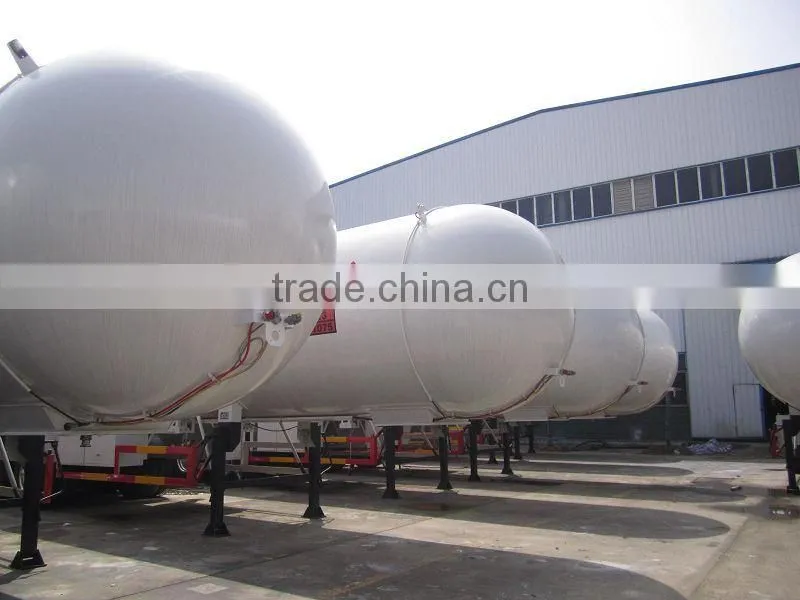

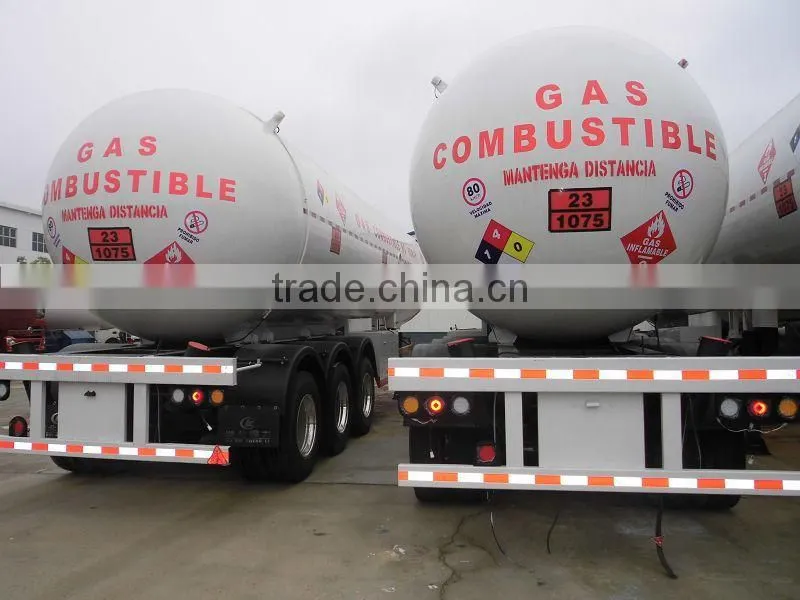

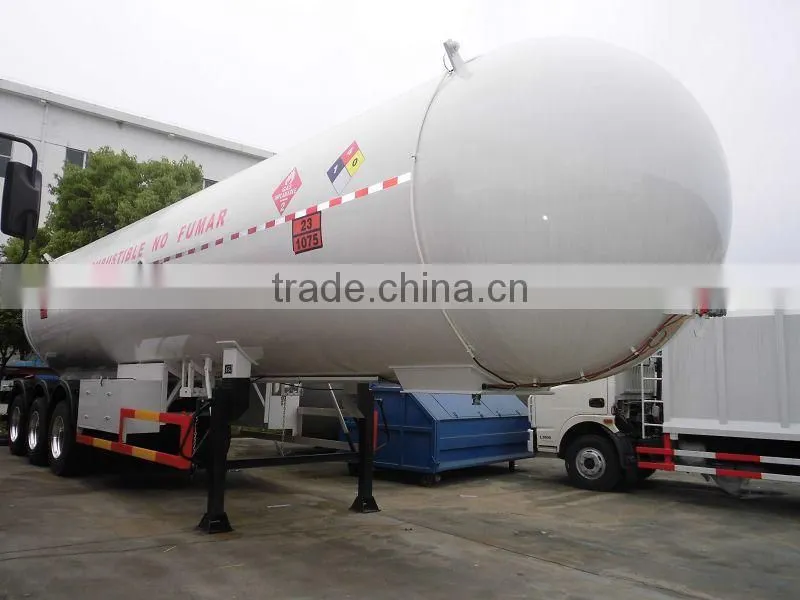

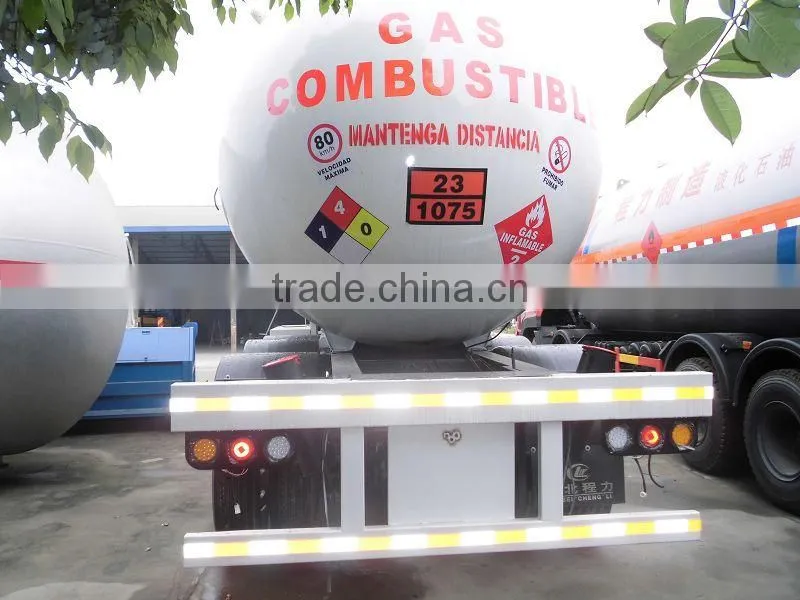

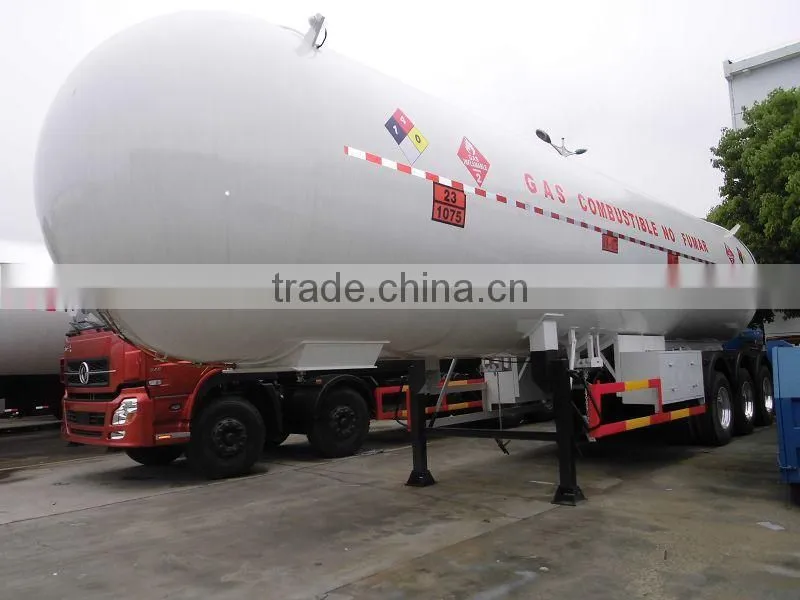

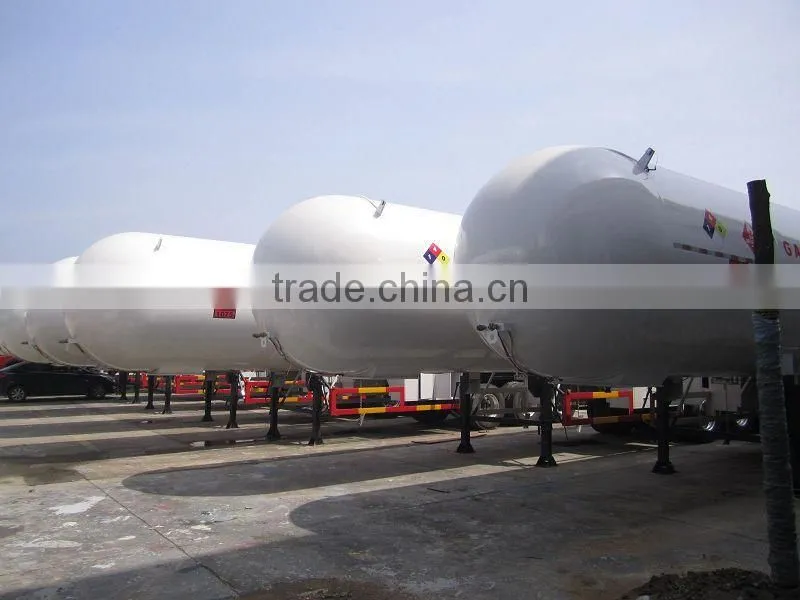

Product pictures:
cetificate
Notes:
A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
Anything unclear, just feel free to contact with me !
Tel:86-13872887006 Emma
Fax:86-722-3819809
Skype: truckcl1
You are welcomed to our facoty to have a visit!
Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China.
