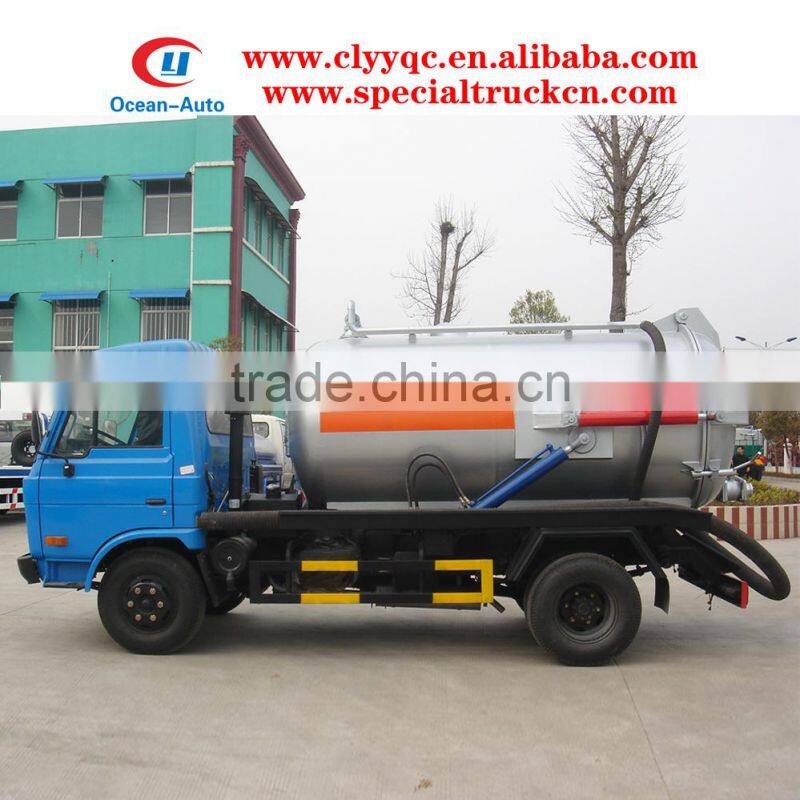

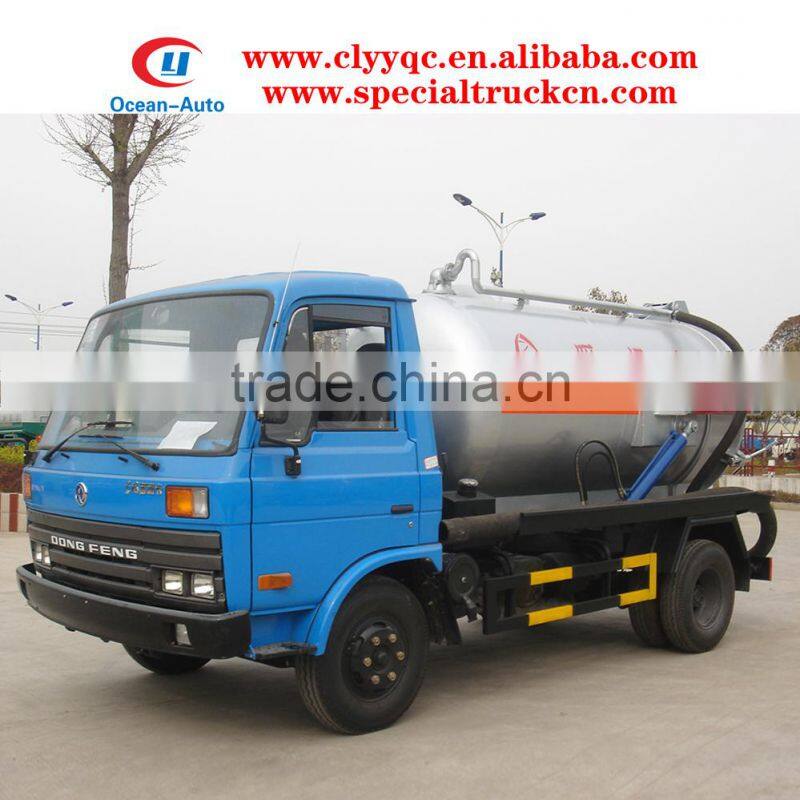

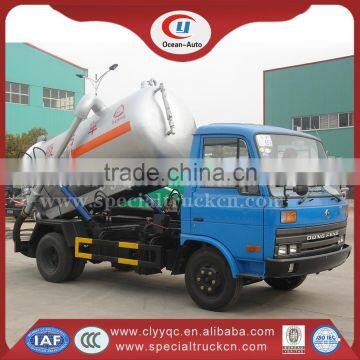

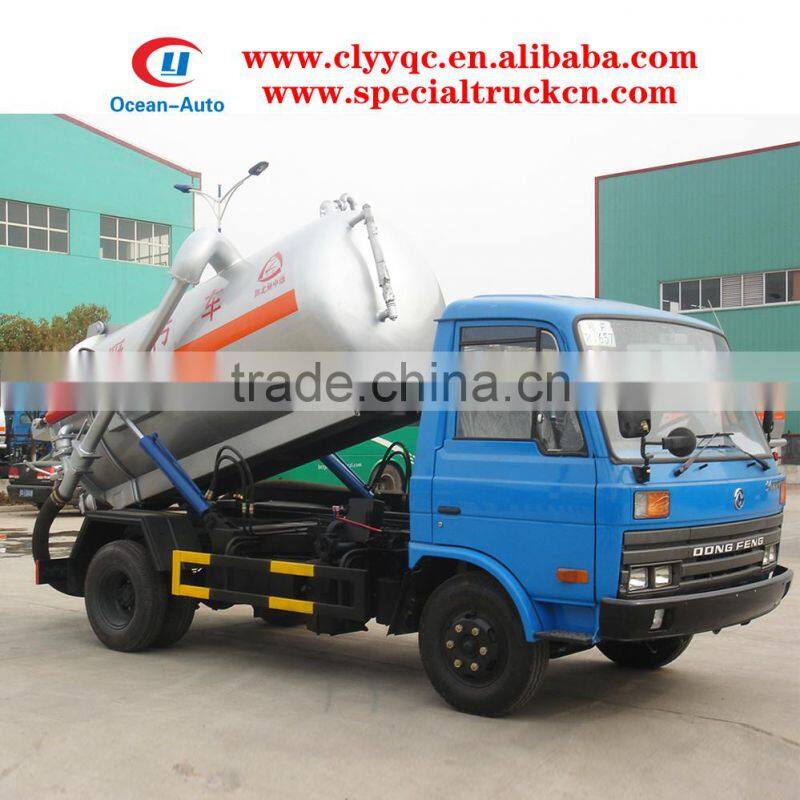

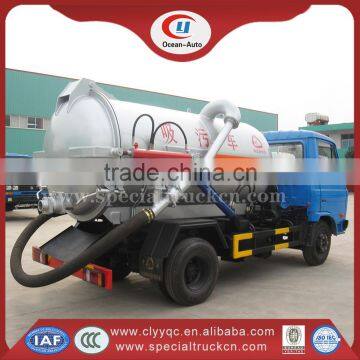

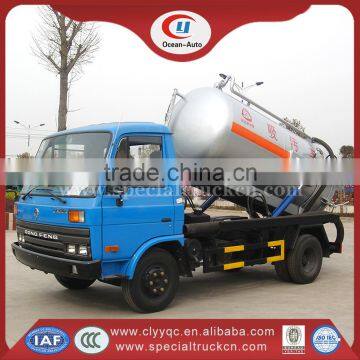

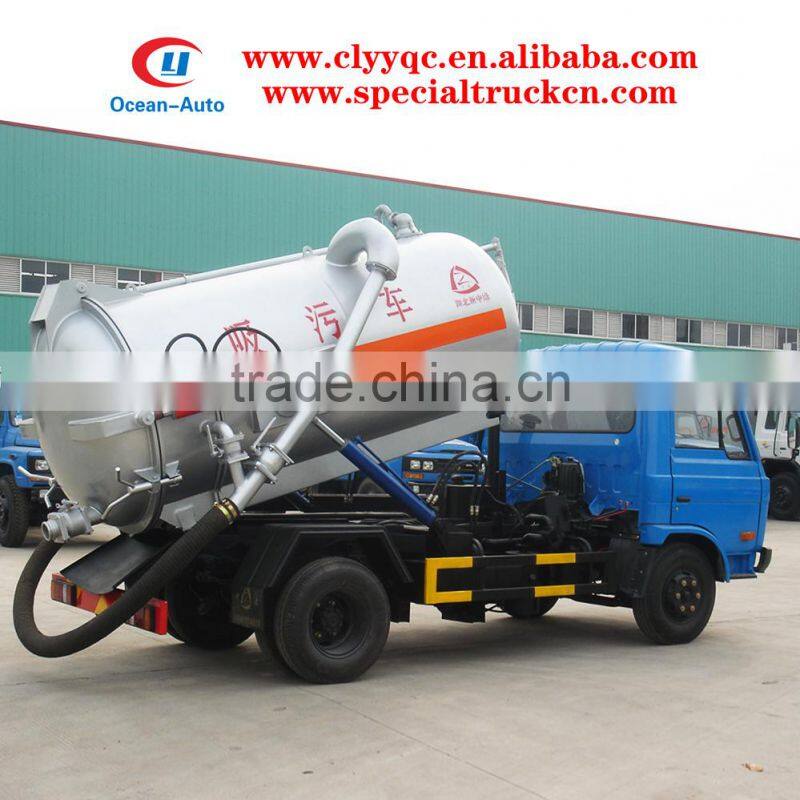

6000L DFAC 4x2 Waster Water Suction Truck Golden Supplier in China

Main specifications

Product model,name

ALA5090GXWE3 Sewage suction truck

Gross weight(Kg)

9400

Driving type

4x2

Payload (Kg)

4700

Overall dimension (mm)

6700×2350x2650

Curb weight(Kg)

4505

Cab seats (man)

3

Approach/departure angle (°)

22/13

Front/rear hang(mm)

1180/1720

Axle No.

2

Wheelbase (mm)

3800

Axle load(Kg)

3460/5940

Max speed(Km/h)

95

Chassis specifications

Chassis model

EQ1090T9ADJ3AC

Manufacture

Dongfeng Automobile Co,.Ltd

Brand name

Dongfeng

Overall dimension (mm)

6695×2180×2350

Tire specification

8.25R16

Tires No.

6

Steel spring number

11/9+7,8/10+7

Front track(mm)

1750

Fuel type

Diesel

Rear track(mm)

1856

Emission standard

Euro III

Gear box

5 gears

Cab

luxurious interior trim and seat, single cab,with A/C.

Engine model

Engine manufacture

Displacement(ml)

Power(Kw)

CY4102-E3C

Dongfeng Chaoyang Chaochai Power Co.,Ltd

3856

91

Tank body

Tank capacity(m³)

6

Tank material

Q235 carbon steel

Main Characteristic

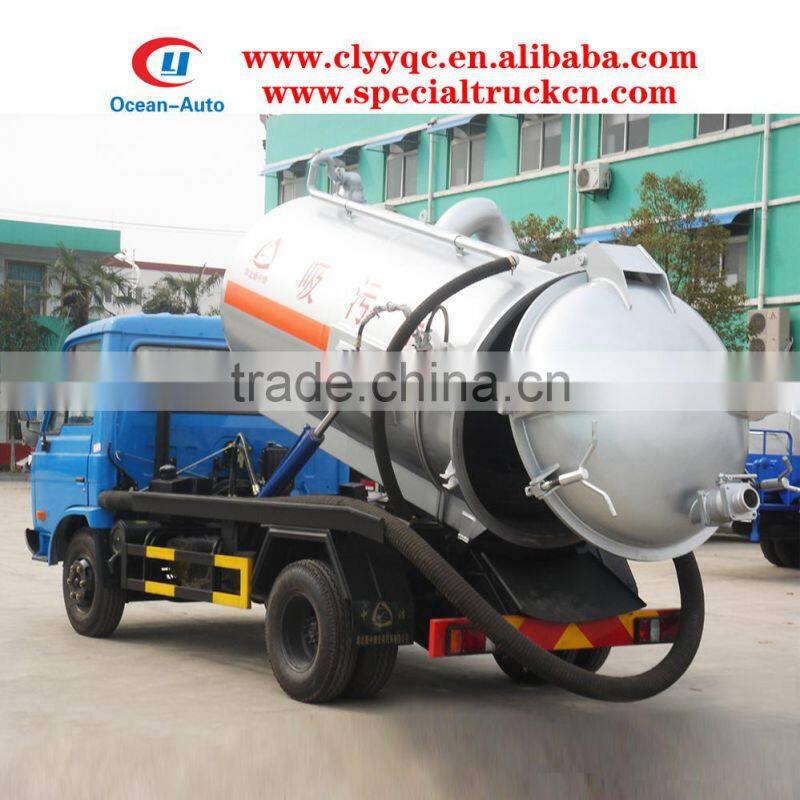

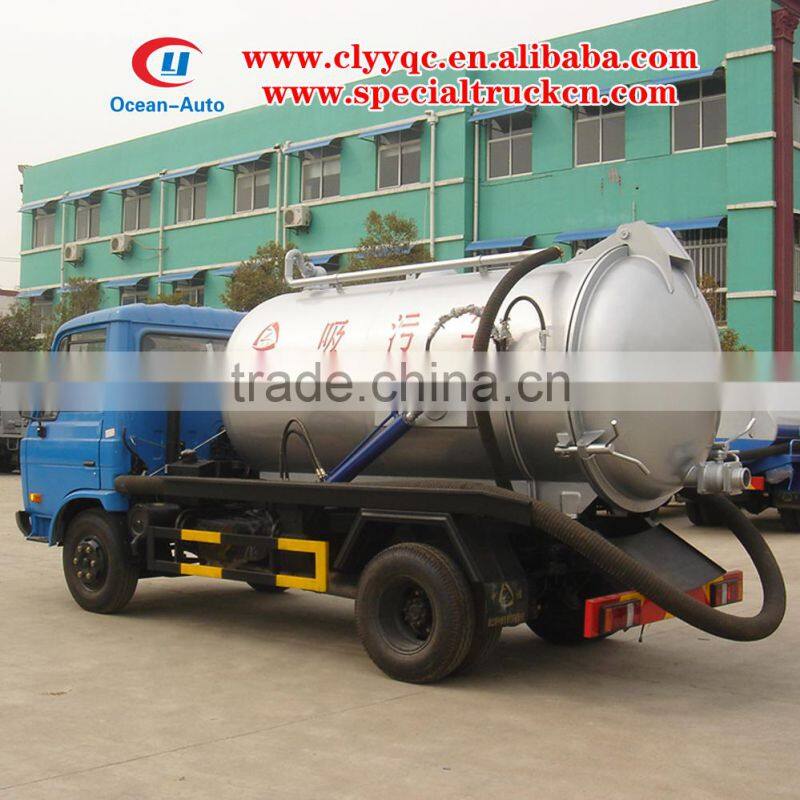

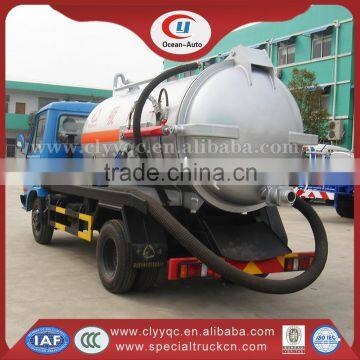

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
