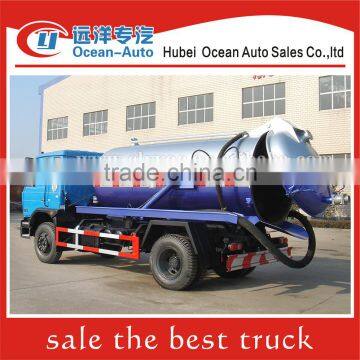

Dongfeng 4x2 vacuum sewage suction vehicle manufacture
Main specifications | |||||||||||
Product model,name | ALA5110GXWE3, Sewage suction truck | ||||||||||
Gross weight(Kg) | 11495 | Driving type | 4x2 | ||||||||
Payload (Kg) | 5300 | Overall dimension (mm) | 7200x2480x3150 | ||||||||
Curb weight(Kg) | 6000 | Cab seats (man) | 3 | ||||||||
Approach/departure angle (°) | 33/12 | Front/rear hang(mm) | 1250/2200 | ||||||||
Axle No. | 2 | Wheelbase (mm) | 3950 | ||||||||
Axle load(Kg) | 3800/7695 | Max speed(Km/h) | 95 | ||||||||
Chassis specifications | |||||||||||
Chassis model | EQ1110GLJ | Manufacture | Dongfeng motor company | ||||||||
Brand name | Dongfeng | Overall dimension (mm) | 7120x2462x2710 | ||||||||
Tire specification | 9.00-20 | Tires No. | 6+1 | ||||||||
Steel spring number | 8/11+8 | Front track(mm) | 1900,1810 | ||||||||
Fuel type | Diesel | Rear track(mm) | 1800 | ||||||||
Emission standard | Euro Ⅲ | Gear box | 6 forward&1reverse | ||||||||
Cab | A luxurious interior and seat, with sleeper, with power steering, optional A/C | ||||||||||
Engine model | Engine manufacture | Displacement(ml) | Power(Kw) | ||||||||
B170 33 | Dongfeng Cummins Engine Co., Ltd. | 5900 | 125 | ||||||||
Tank body | |||||||||||
Tank capacity(m³) | 8 | Tank material | Q235 carbon steel | ||||||||
Main Characteristic | |||||||||||
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank.Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used.Full tank pumping time: ≤ 5min; suction width: ≥ 8m. Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects. | |||||||||||
.
.
.
