JAC high pressure cleaning with sewage suction truck
1.Technical Specification
Main specifications | |||||||||||
Product model,name | HLQ5080GQW, High Pressure Cleaning With Sewage Suction Truck | ||||||||||
Gross weight(Kg) | 8495 | Driving type | 4x2 | ||||||||
Payload (Kg) | 3000 | Overall dimension (mm) | 6860x2040x2800 | ||||||||
Curb weight(Kg) | 5300 | Cab seats (man) | 2 | ||||||||
Approach/departure angle (°) | 24/13 | Front/rear hang(mm) | 1085/1910 | ||||||||
Axle No. | 2 | Wheelbase (mm) | 3815 | ||||||||
Axle load(Kg) | 3060/5435 | Max speed(Km/h) | 90 | ||||||||
Chassis specifications | |||||||||||
Chassis model | HFC1081K2F | Manufacture | Anhui Jianghuai Automobile Co.,Ltd. | ||||||||
Brand name | JAC | Overall dimension (mm) | 6810x1995x2216 | ||||||||
Tire specification | 8.25-16 14PR | Tires No. | 6 | ||||||||
Steel spring number | 9/12,9/6+6 | Front track(mm) | 1665 | ||||||||
Fuel type | Diesel | Rear track(mm) | 1525 | ||||||||
Emission standard | Euro Ⅲ | Gear box | 6 forward&1reverse | ||||||||
Cab | Single row, luxurious interiors and seats, cab flip forward, with the direction of power, the optional air conditioning | ||||||||||
Engine model | Engine manufacture | Displacement(ml) | Power(Kw) | ||||||||
ISF3.8s4141 | Beijing Foton Cummins Engine Co., Ltd. | 3760 | 105 | ||||||||
Tank body | |||||||||||
Cleaning Tank capacity(m³) | 3.5 | Sewage tank capacity(m³) | 3.5 | ||||||||
Main Characteristic | |||||||||||
The truck is the function of the high pressure cleaning and sewage suction models and a new type of sanitation special vehicles, constitute by the second class chassis, take power device, fresh water, sewage pollution cans, high pressure pumps, vacuum pump, the hydraulic control device, mechanical ground device, high pressure flushing pipeline, vacuum suction sewage pipes, sewer system. High pressure water pump adopts imported Italian, vacuum pump adopt domestic famous brands, sewage tank back cover, can open hydraulic, tanks can be operated by hydraulic lifting upwards, sewage tank directly through the dump was dumped. | |||||||||||

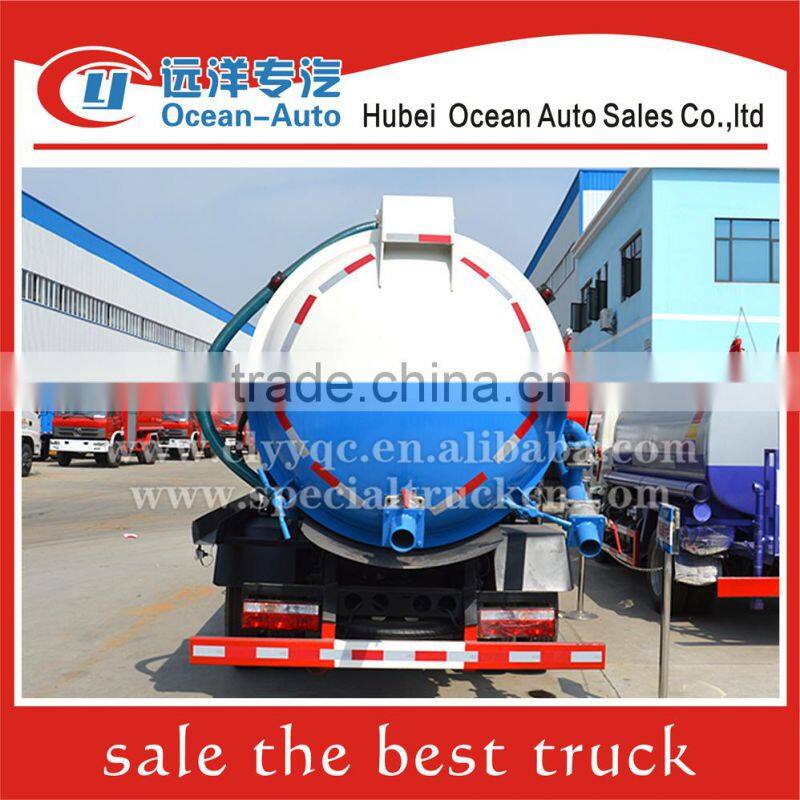

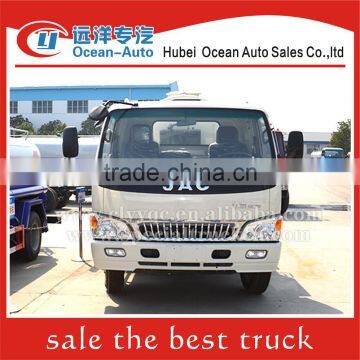

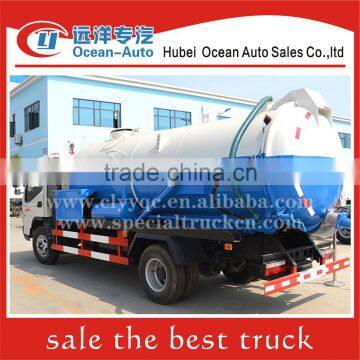

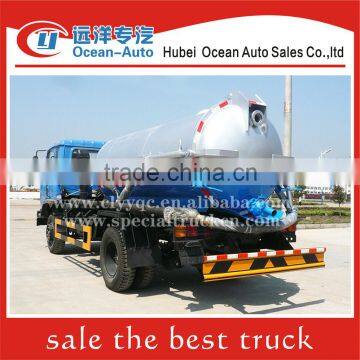

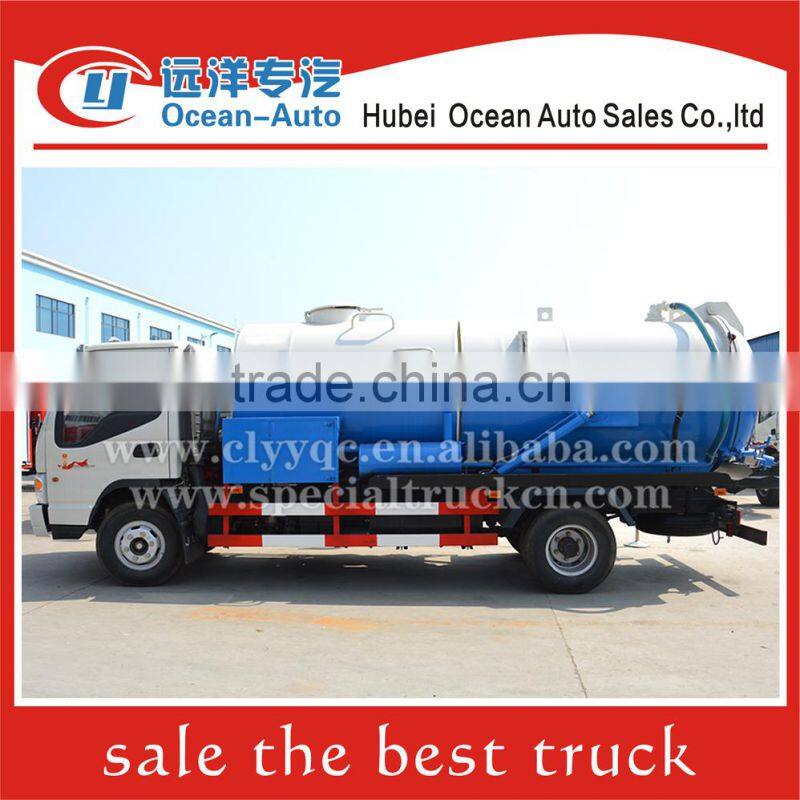

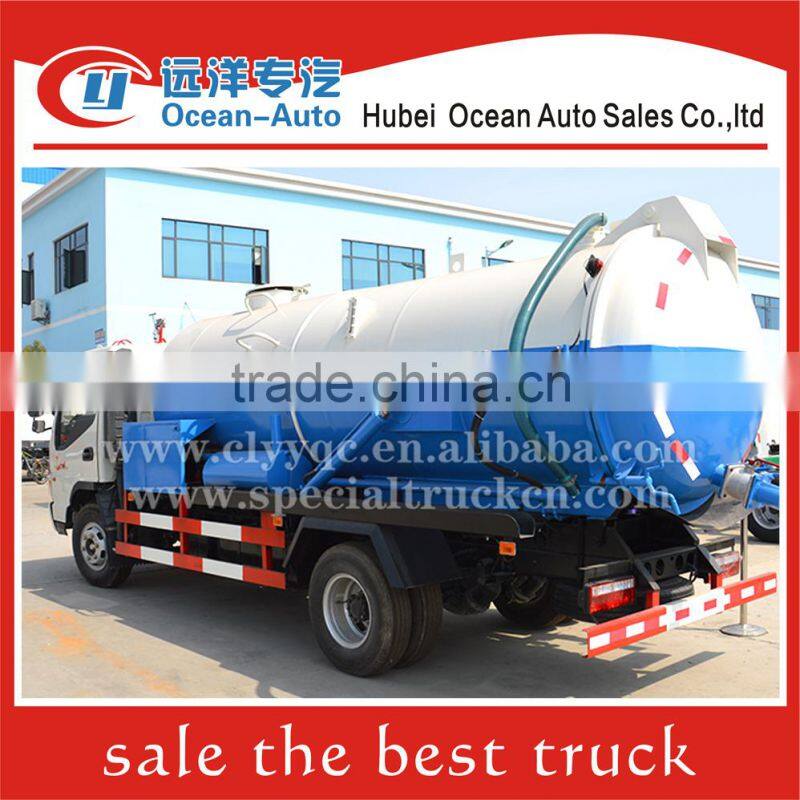

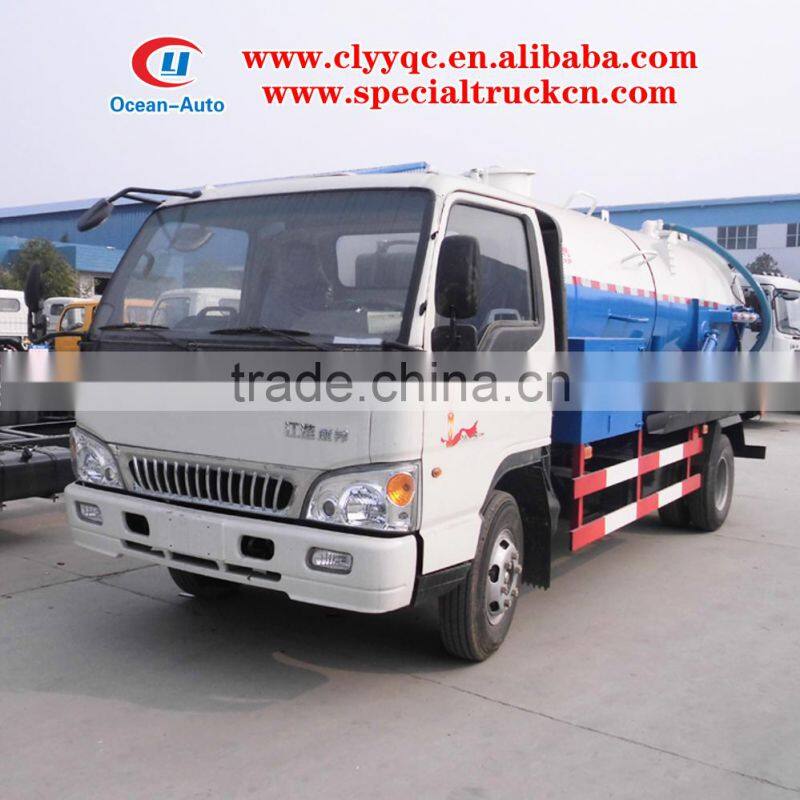

2.Product Show
Service details
If you want to know more about the truck ,our sales team will try our best to provide the information what is your needs. All questions response in 12 hours. We are glad to service for you
