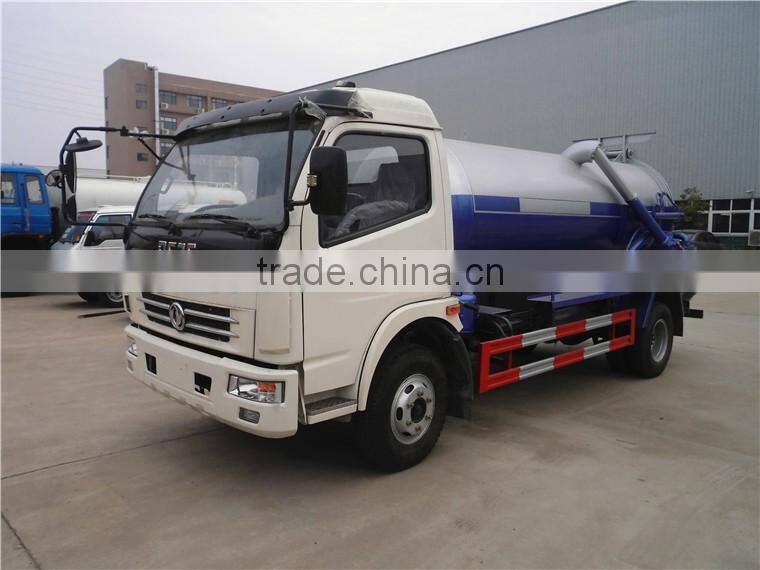

Dongfeng 6cbm Vacuum Sewage Suction Truck for Sale

Main specifications

Product model,name

ALA5090GXWE3  Sewage suction truck

Gross weight(Kg)

9400

Driving type

Payload (Kg)

4700

Overall dimension (mm)

6700×2350×2650

Curb weight(Kg)

4505

Cab seats (man)

3

Approach/departure angle (°)

22/13

Front/rear hang(mm)

1180/1720

Axle No.

2

Wheelbase (mm)

3800

Axle load(Kg)

3460/5940

Max speed(Km/h)

95

Chassis specifications

Chassis model

EQ1090T9ADJ3AC

Manufacture

Dongfeng Automobile Co,.Ltd

Brand name

Dongfeng

Overall dimension (mm)

6695×2285×2480

Tire specification

7.50R16

Tires No.

6

Steel spring number

11/9+7

Front track(mm)

1831

Fuel type

Diesel

Rear track(mm)

1640

Emission standard

Euro Ⅲ

Gear box

5forward gear,1 reverse gear

Cab

Single row, luxurious interior and seat, with power steering, optional air conditioning

Engine  model

Engine manufacture

Displacement(ml)

Power(Kw)

CY4102-E3C

Dongfeng Chaoyang Chaochai Power Co.,Ltd

3856

91

Tank body

Tank capacity(m³)

6

Tank material

Q235 carbon steel

Main Characteristic

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on  both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
