3 alxes 40000 liters milk transportation semi-trailer truck, stainless steel milk tanker truck

Specifications

3 alxes 40000 liters milk transportation semi-trailer truck, stainless steel milk tanker truck
6mm tank thickness
ISO9001:2008

3 alxes 40000 liters milk transportation semi-trailer truck, stainless steel milk tanker truck
6mm tank thickness
ISO9001:2008

tractor can offer



1.The tank liner is made of high quality food grade stainless steel and the inner tank has been fine     polished.

2.Equipped wih PIC cleaning devices.

3.With function of thermal insulution:medium termperature change  ≤1 °C  durning 24 hours.

4.The tank can be divided into several parts according to demand to load different materials.

 Specifications

Main specifications
Product model,name	CLW9400GNY   Milk Transportation Semi-trailer Truck
Total weight(Kg)	40000	Tank capacity(m3)	40.7
Payload (Kg)	31800	Overall dimension(mm)	12600×2500×3850
Curb weight(Kg)	8200	Steel spring number	-/8/8/8,-/4/4/4
Approach/departure angle (°)	-/12	Front/rear hang(mm)	-/1630
Number of axles	3	wheelbase(mm)	6850+1310+1310
Tires No.	12	Tire specification	11.00-20 12PR,11.00R20
Axle load(Kg)	-/24000(three axles)	Rear track(mm)	1840/1840/1840
instruction	transportation media:milk ,density:0.82 T/CBM,Tank effective  capacity :40.7cbm;tank overall dimension(length/long axis /short axis)(mm):12240/2480/2110(practical size 12080/2320/1950,thickness of insulating layer outside the tank 80mm).

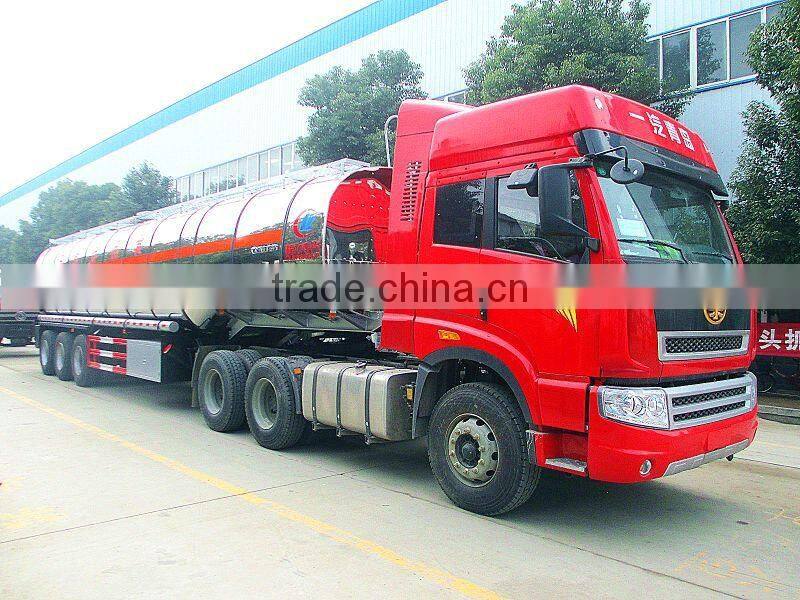

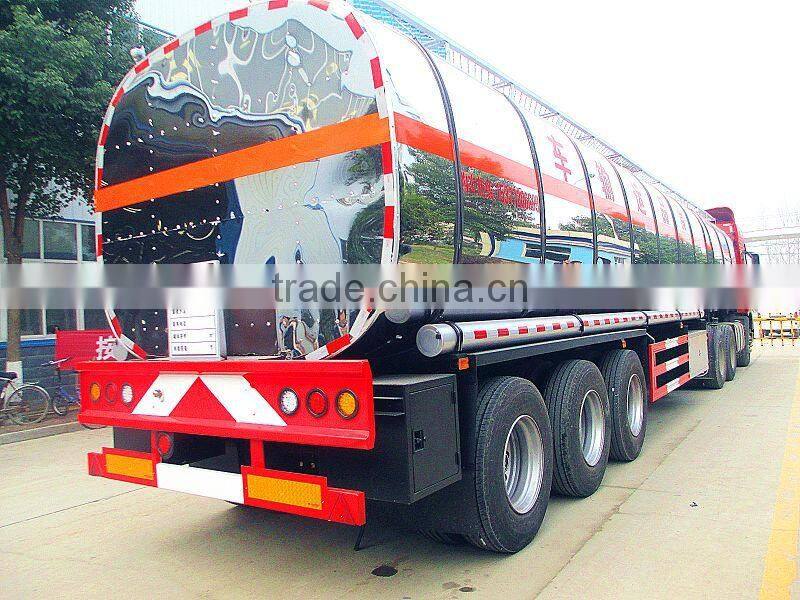

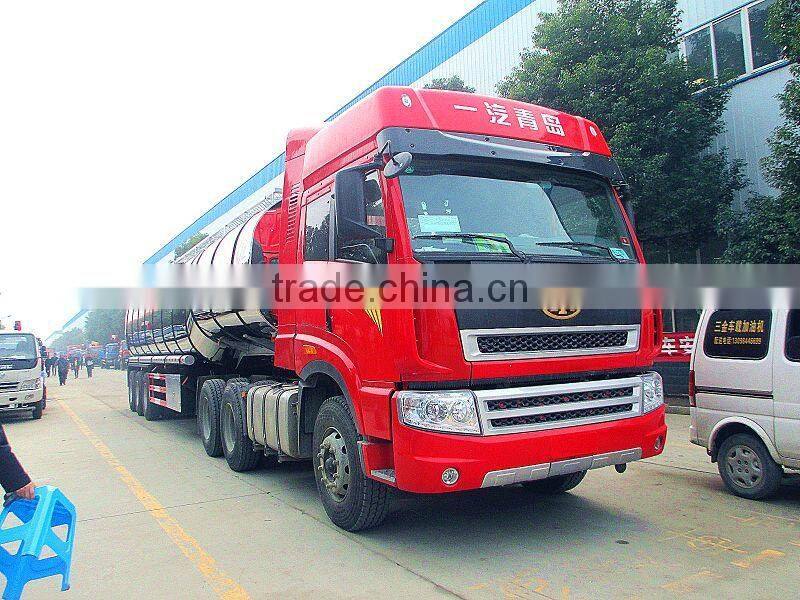

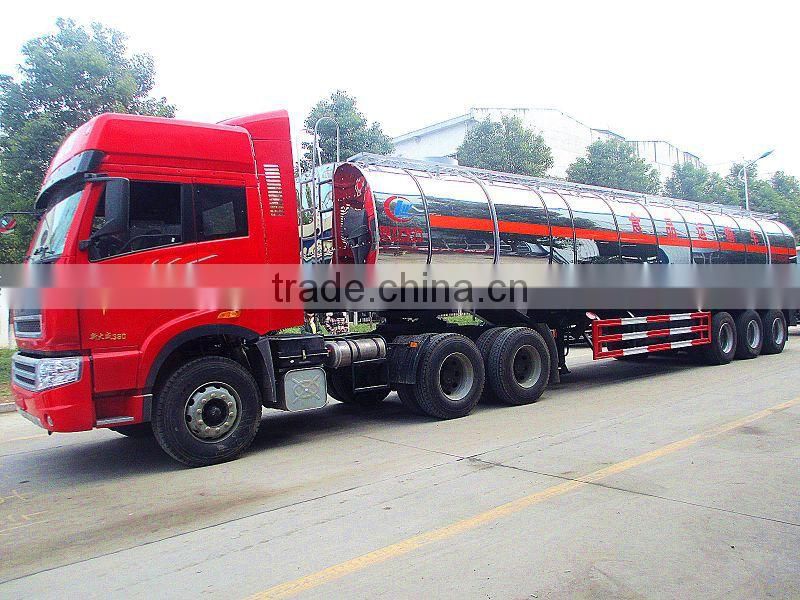

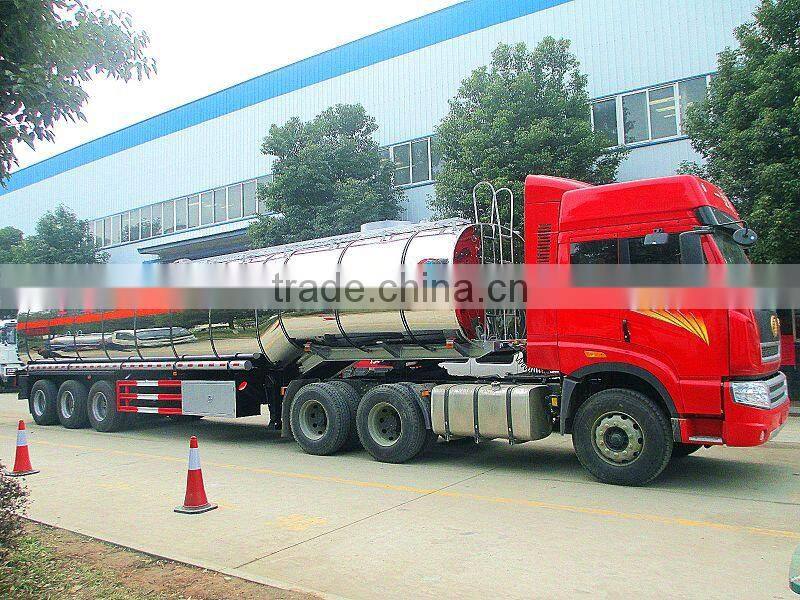

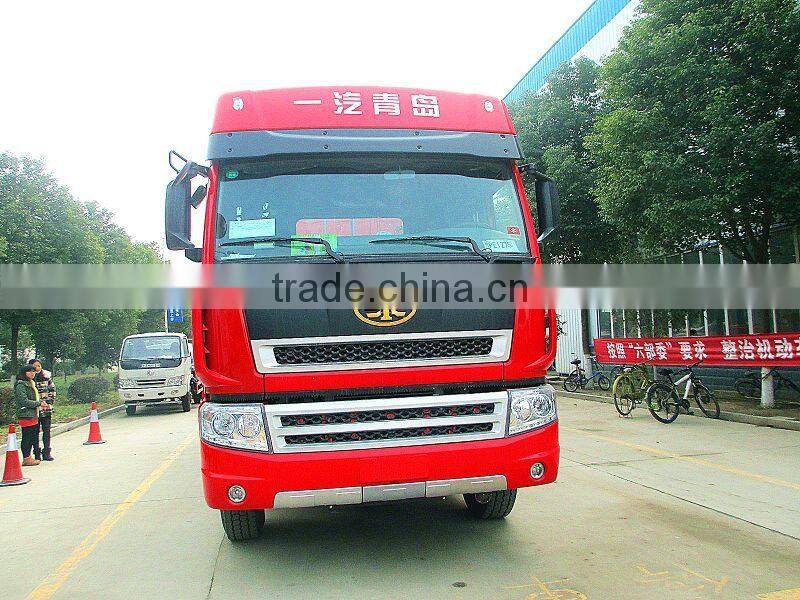

Product pictures:



cetificate

Notes:

A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
