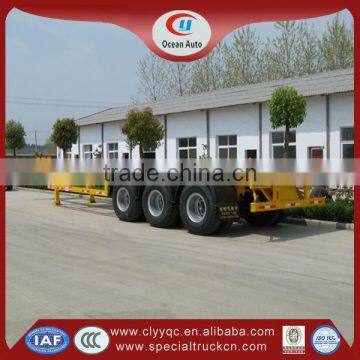

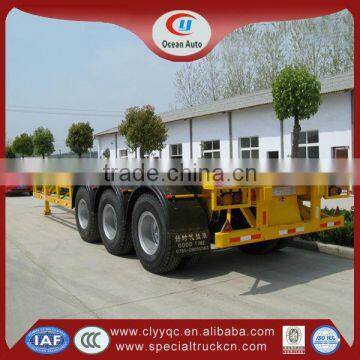

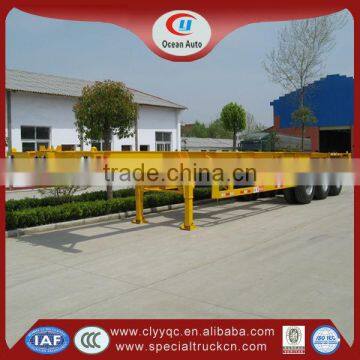

Container semi trailer truck carrier semi truck

Vehicle model

CLW9280TJZG Container semi-trailer

Batch No.

229

Manufacturer

Hubei Chengli Special automobile Co. ,Ltd(china)

Brand name

CLW

Overall dimension(mm)

7500×2500×1510

Total weight(Kg)

27750

Body internal dimension(mm)

××

Rating load(Kg)

24000

Approach/departure angle

-/26

Curb weight(Kg)

3750

Front/rear hang(mm)

-/1100

Max speed(km/h)

Axle number

2

Tyre number

8

Wheelbase

4240+1300

Tyre specification

11.00-20 12PR,11.00-20 14PR,11.00-20 16PR,11.00R20 12PR,11.00R20 14PR

Axle load

-/17990(double axles)

Front wheel distance

Leaf spring number

-/8/8

Rear wheel distance

1840/1840

Remarks

Container semitrailer tractor the saddle bearing surface-load from high to 1310mm, traction pin at the frame height 85mm;Car used to transport the 20-foot container.

Others

Protectivematerial:Q235 carbon steel. Connection: around the side and rear underrun protection are welded connection, rear protective section size (mm): 200 × 50 × 5.the rear protective ground clearance (mm): 520. ABS manufacturers:Haldex International Trading (Shanghai) Co., Ltd., ABS Model:2S/2M.
