Specifications
3 axle chemical semi-trailer truck manufacturer1.30-40tanker capacity
et customers'different requirement.
3 axles chemical semi-trailer truck supplier
1.Technical Features
Vehicle model | CLW9404GHY chemical semi-trailer | Batch No. | 199 |
Manufacturer | Hubei Chengli Special Automobile company limited | Brand name | CLW |
Overall dimension(mm) | 11000×2500×3500 | Total weight (Kg) | 40000 |
Body internal dimension(mm) | ×× | Curb weight(Kg) | 7400 |
Approach/departure angle | -/20 | Max speed(km/h) |
|
Front/rear hang(mm) | -/1410 | Vehicle identification code | LA939VSG×××CLW××× |
Chassis model |
| ||
Engine model | Engine manufacturer | Emission | Power |
|
|
|
|
Fuel type | Diesel | Tyre number | 12 |
Axle number | 3 | Tyre specification | 11.00-20,11.00R20, 12.00-20,12.00R20 |
Wheelbase | 5760+1310+1310 | Front wheel distance | - |
Axle load | -/24000(parallel) | Rear wheel distance | 1840/1840/1840 |
Leaf spring number | -/8/8/8 |
|
|
The material of the tanker is aluminum or Aluminum alloy Transport medium: caproic acid , density: 1050kg/cbms,Effective tanker capacity: 32.59cbms, tanker dimension(mm): 10700×2460×1680

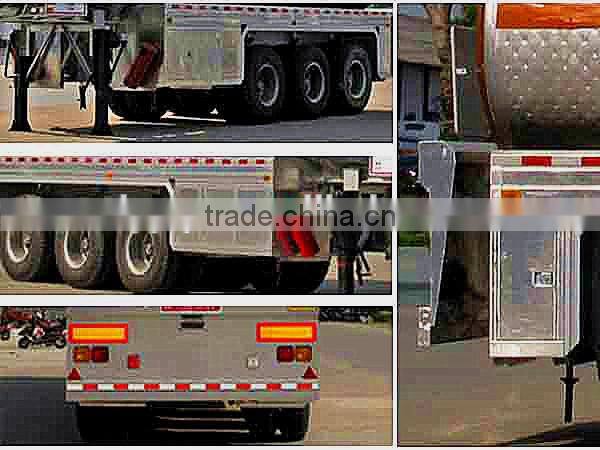

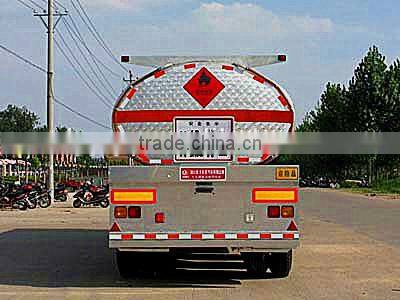

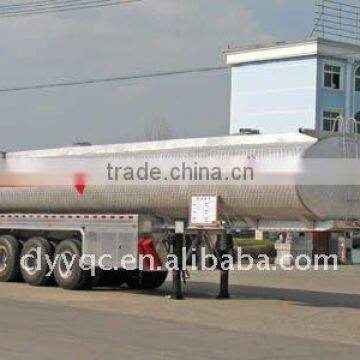

2. Product Image
The picture and parameter mentioned above is only for reference. The Specific product will be produced according to your requirements.
3. Company Scene
4.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment date or 10000klm
For more information,please feel free to contact me!
Sales Manager: Tracy Tian
Skype:chengli.truck
Mobile:0086-13886861936
TEL: +86 0722 3819709
FAX: +86 0722 3819809
Hubei Chengli Ocean Auto Sales Co., Ltd
Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China
Welcome to visit our factory!
