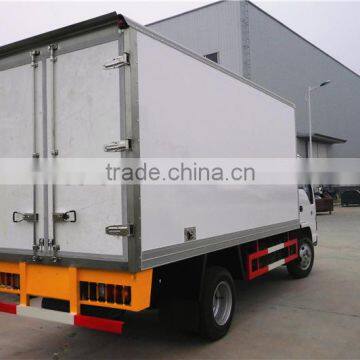

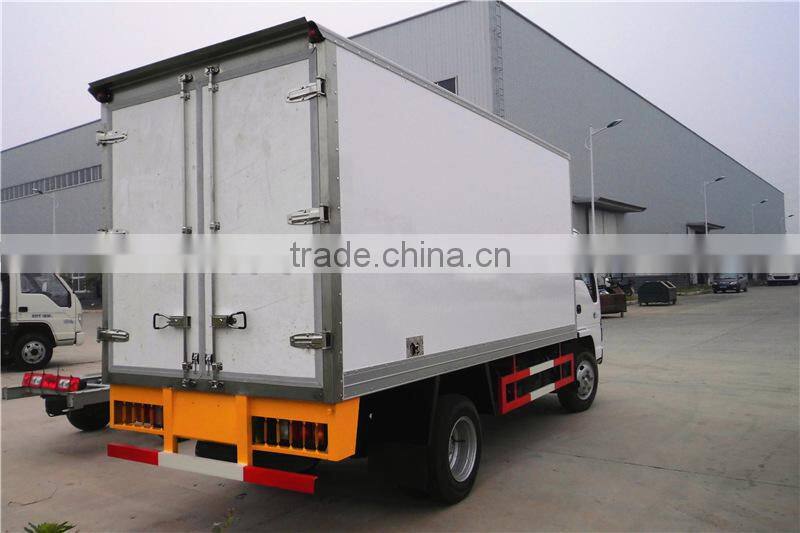

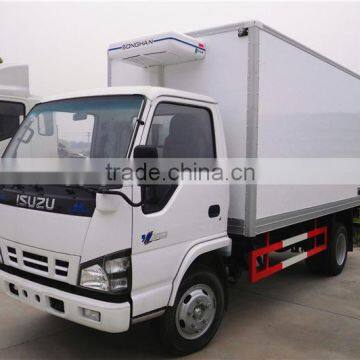

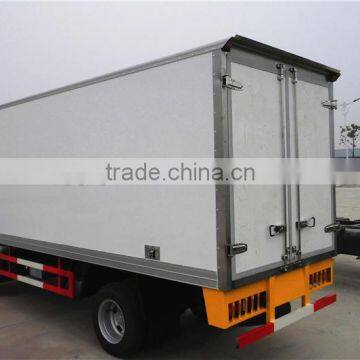

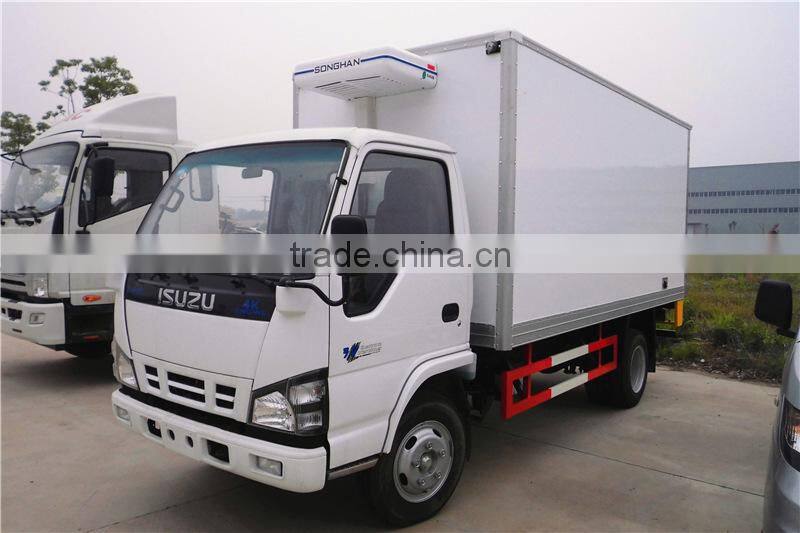

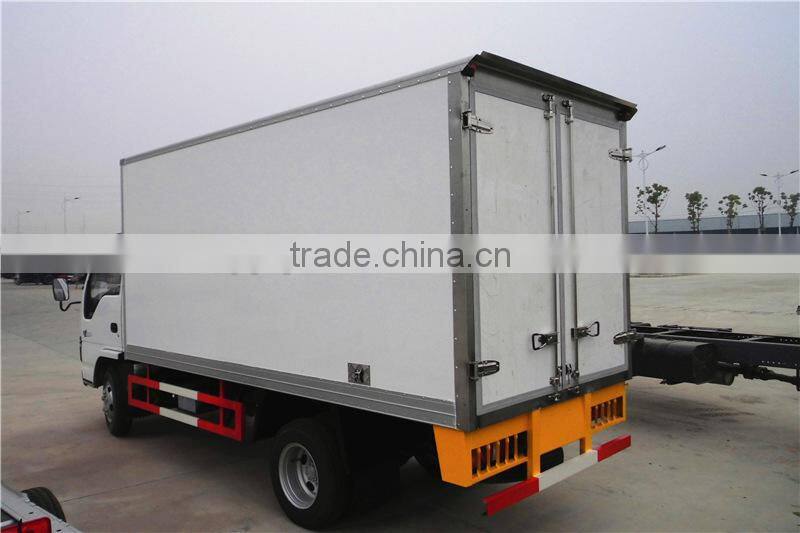

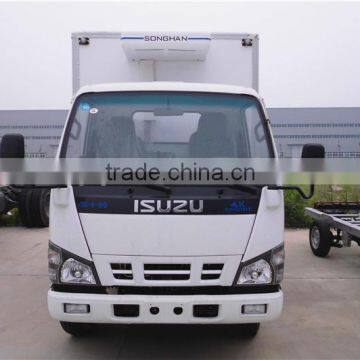

Mini 3tons Japanese Thermo King Refrigerator Truck

Main specification

Product model and name

JDF5060XLCQ4 Refrigerator truck

Gross weight(Kg)

6600

Drive type

4x2

Payload(Kg)

3170

Overall dimension(mm)

6200x2000x2900

Curb weight(Kg)

3300

Cab seats

2

Approach/departure angle(°)

24/14

Front/rear hang(mm)

1015/1825

Axle No.

2

Wheelbase(mm)

3360

Axle load(Kg)

2330/4270

Max speed(Km/h)

105

Chassis specification

Chassis model

QL1070A1HAY

Manufacturer

Qingling Auto Co.,Ltd

Brand name

ISUZU

Dimension(mm)

5900x1880x2160

Tyre specification

7.00-16

Tyre No.

6

Steel spring number

8/6+5

Front track base(mm)

1504

Fuel type

Diesel

Rear track base(mm)

1425

Emission standard

Euro 4

Transmission

5 forward gear,1 reverse gear

Cab

Single row, power steering,air-condition, USB and a radio

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

4KH1-TCG40

Qingling ISUZU Engine Co.,Ltd

2999

88(120hp)

Performance

Van body size(mm)

4350x1800x1800

Load capacity(TON)

3

Lowest refrigeration temperature(℃)

-18 Centigrade

Feature and Application

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
