Home > Transportation > Specialized Vehicle > Refrigerated Truck > 12Ton Dongfeng Refrigerator Unit for Truck Sale

12Ton Dongfeng Refrigerator Unit for Truck Sale

12Ton Dongfeng Refrigerator Unit for Truck Sale photo-1
12Ton Dongfeng Refrigerator Unit for Truck Sale photo-2

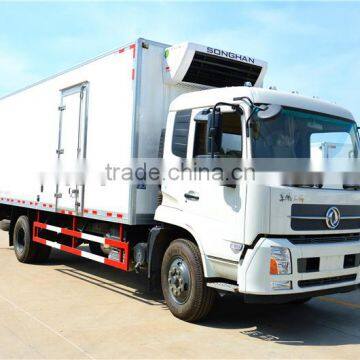

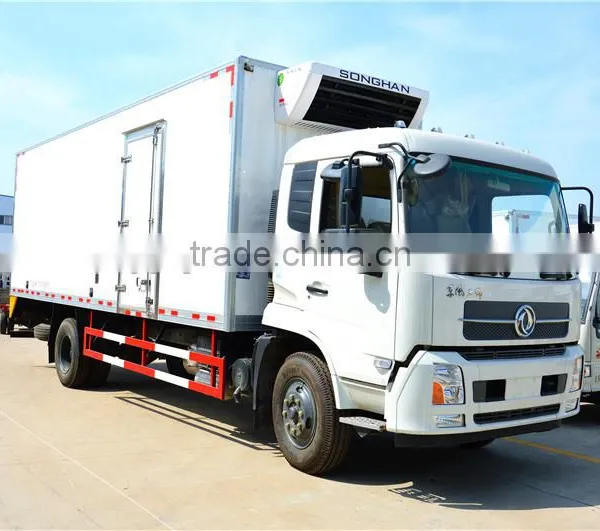

12Ton Dongfeng Refrigerator Unit for Truck Sale photo-3
12Ton Dongfeng Refrigerator Unit for Truck Sale photo-4
12Ton Dongfeng Refrigerator Unit for Truck Sale photo-5
12Ton Dongfeng Refrigerator Unit for Truck Sale photo-6
US$ 25,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dongfeng
Model:
HLQ5120XLC
Place of Origin:
Hubei Province,China
Payment & Shipping
Payment Methods:
Port of Shipment:
Usually Shanghai port or any other ports in China as your request
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Dongfeng
Model HLQ5120XLC
Place of Origin Hubei Province,China
Condition New
Horsepower 150 - 250hp
Emission Standard Euro 3
Fuel Type Diesel
Dimensions (L x W x H) (mm) 8700,9000x2500x3850
Box Dimensions (L x W x H) (mm) 6400X2260X2300
Temperature Range -5 to -18
Gross Vehicle Weight 12495

12Ton Dongfeng refrigerator unit for truck sale

Detailed Parameter



Main specification

Product model and name

DFL1120B  Refrigerator unit

Gross weight(Kg)

12495

Drive type

4x2

Payload(Kg)

6000

Overall dimension(mm)

8700,9000x2500x3850

Curb weight(Kg)

6300

Cab seats

3

Approach/departure angle(°)

20/13

Front/rear hang(mm)

1430/2570

Axle No.

2

Wheelbase(mm)

5000

Axle load(Kg)

4300/8195

Max speed(Km/h)

90

Chassis specification

Chassis model

DFL1120B

Manufacturer

Dongfeng Auto Co.,Ltd

Brand name

Dongfeng

Dimension(mm)

8790,8290x2370x2760,3400

Tyre specification

9.00R20

Tyre No.

6

Steel spring number

7/9+6,8/10+8

Front track base(mm)

1880

Fuel type

Diesel

Rear track base(mm)

1800

Emission standard

Euro 3

Transmission

6 forward gear,1 reverse gear

Cab

D530 flat head, one and a half row with a flat ceiling in the cab, electricwindow regulator,Remote Control Lock, PXD-B dashboard with an air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

B170 33

Dongfeng Cummins Engine Co.,Ltd

5900

125(170hp)

Performance

Van body size(mm)

6400X2260X2300

Load capacity(TON)

10-12

Lowest refrigeration temperature(℃)

-5 to -18 Centigrade

Feature and Application

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.

Product Overview

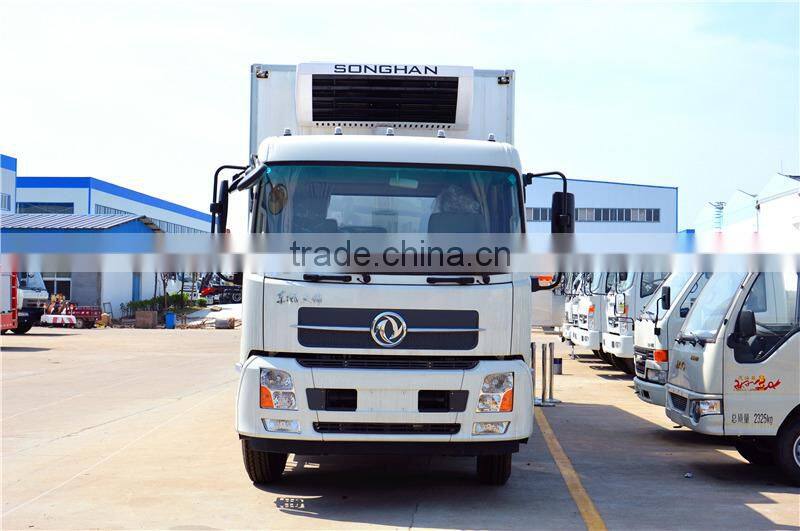

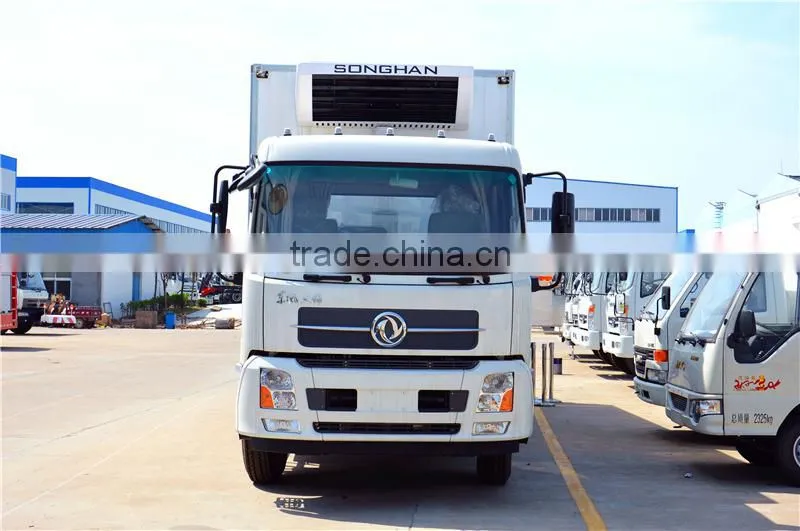

12Ton Dongfeng refrigerator unit for truck sale

12Ton Dongfeng refrigerator unit for truck sale

12Ton Dongfeng refrigerator unit for truck sale12Ton Dongfeng refrigerator unit for truck sale12Ton Dongfeng refrigerator unit for truck sale12Ton Dongfeng refrigerator unit for truck sale

Shipping show

12Ton Dongfeng refrigerator unit for truck sale12Ton Dongfeng refrigerator unit for truck sale12Ton Dongfeng refrigerator unit for truck sale

Packaging &Shipping

1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need.

2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.

Company Information

12Ton Dongfeng refrigerator unit for truck sale12Ton Dongfeng refrigerator unit for truck sale12Ton Dongfeng refrigerator unit for truck sale

Customer Visiting

12Ton Dongfeng refrigerator unit for truck sale

Our Certificates

12Ton Dongfeng refrigerator unit for truck sale

Our Services
A.Delivery time
Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY.
B.Terms of payment
30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
C.After-sales warranty to solve our clients’ worries when purchasing
The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life.
