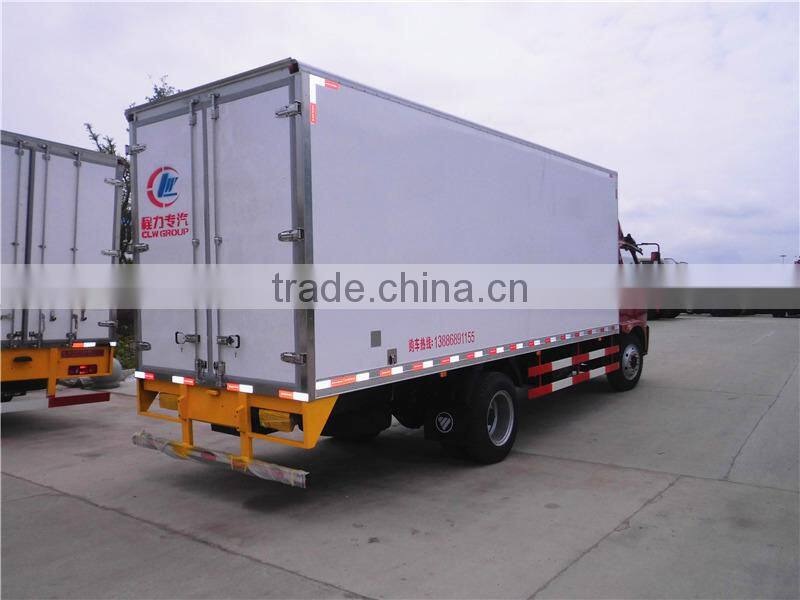

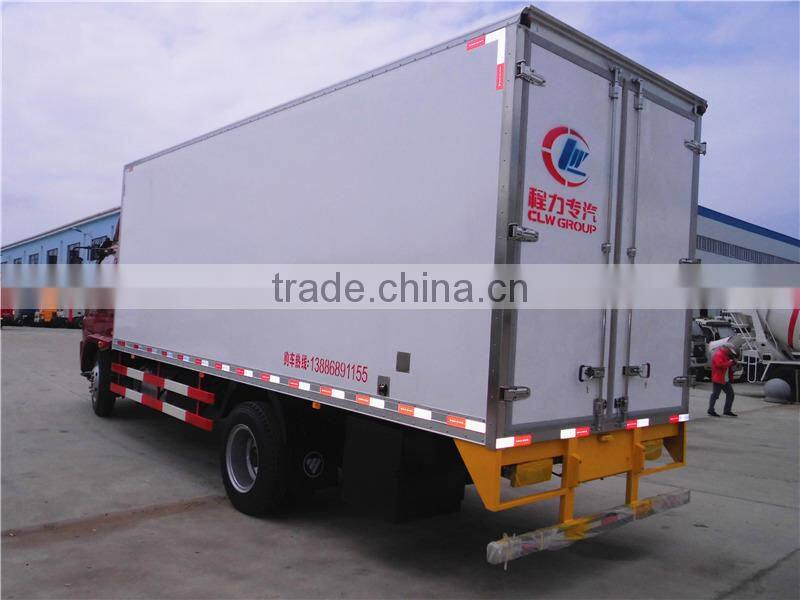

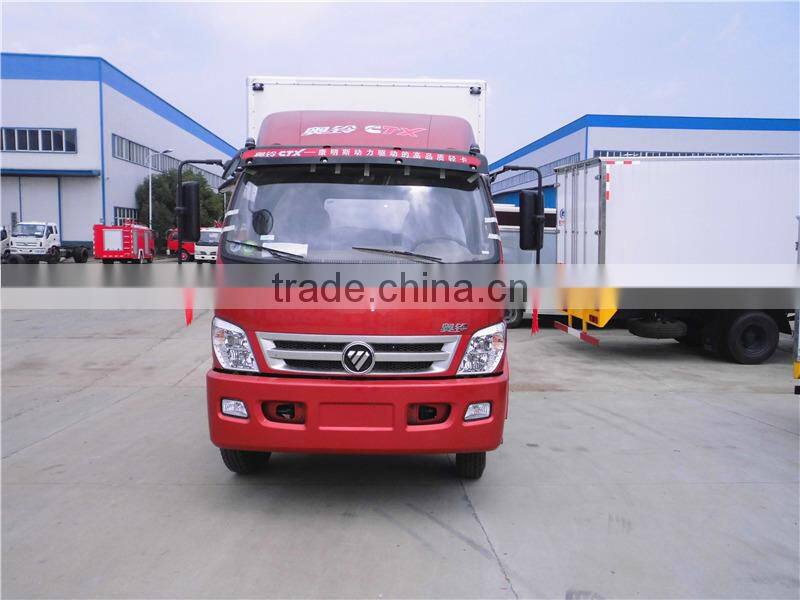

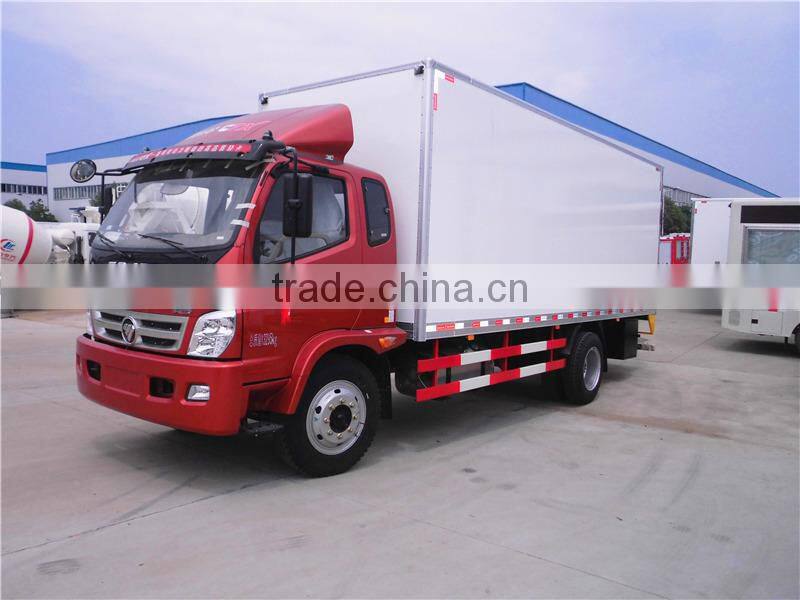

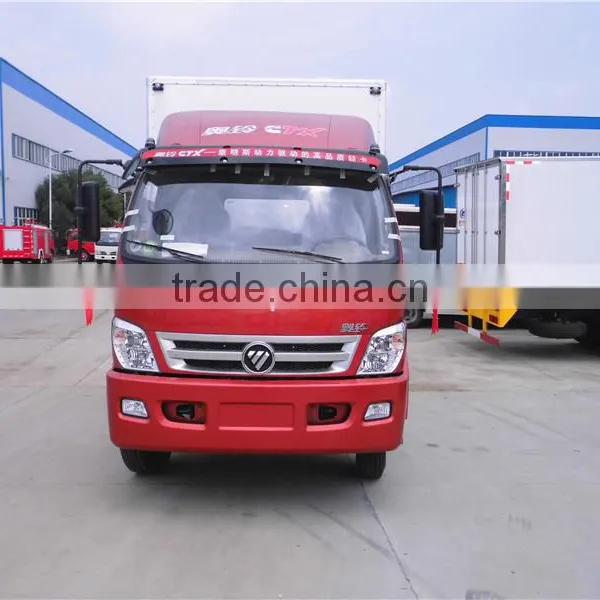

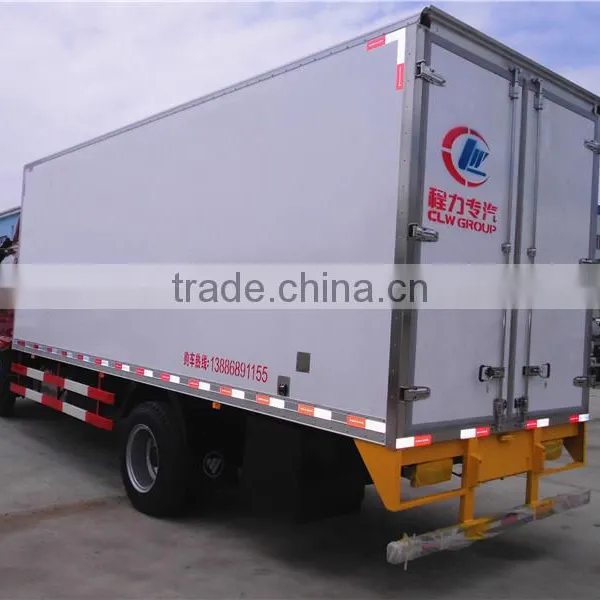

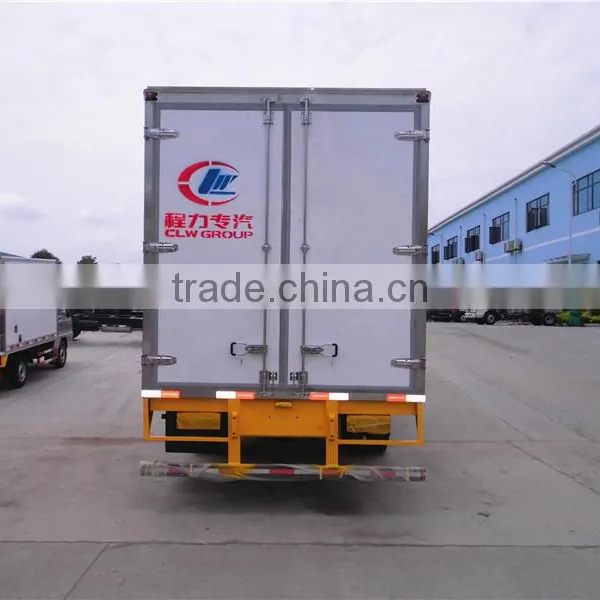

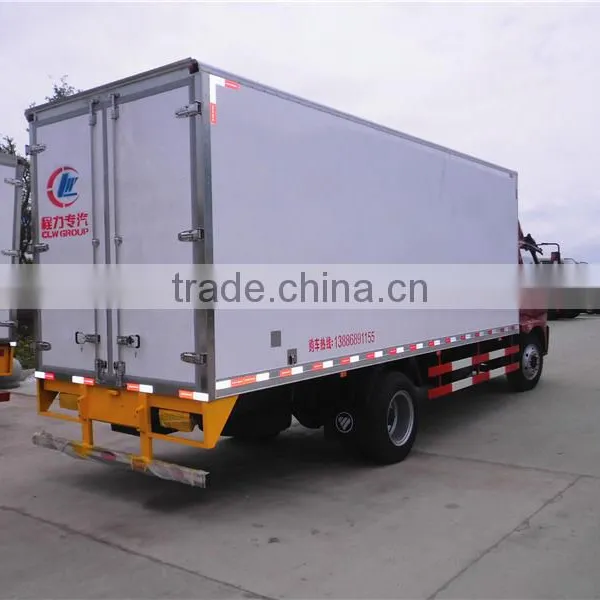

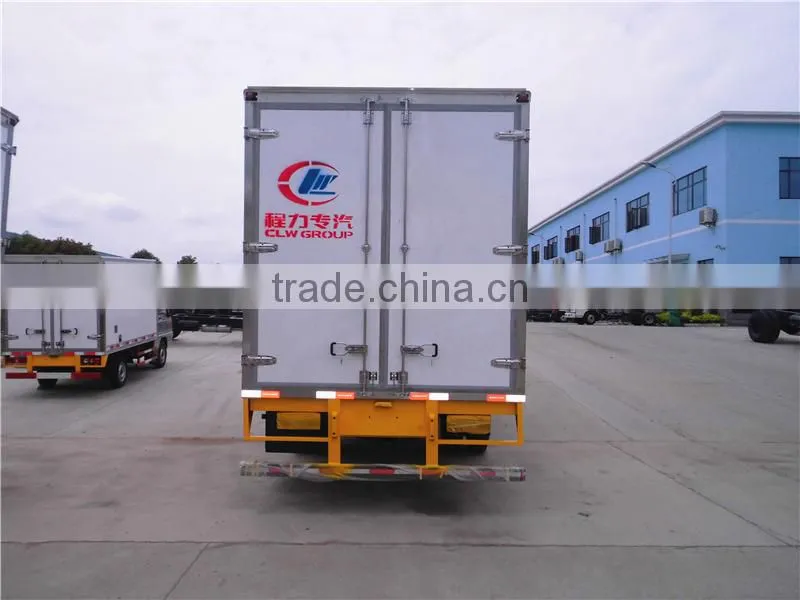

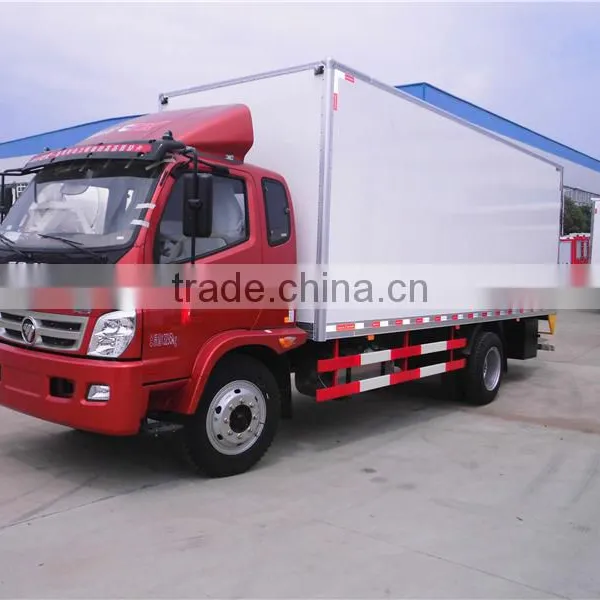

FOTON OLLIN 8TON Reefer Truck

Main specification

Product model and name

BJ5099XLC-FA reefer truck

Gross weight(Kg)

9495

Drive type

4x2

Payload(Kg)

4310

Overall dimension(mm)

7445x2230x3280,3360

Curb weight(Kg)

4990

Cab seats

3

Approach/departure angle(°)

22/14

Front/rear hang(mm)

1120/2125

Axle No.

2

Wheelbase(mm)

4200

Axle load(Kg)

2850/6645

Max speed(Km/h)

110

Chassis specification

Chassis model

BJ1099VEPED-FB

Manufacturer

Beiqi Foton Auto Co.,Ltd

Brand name

Foton

Dimension(mm)

7125×2140,2310,2190×2320,2380

Tyre specification

8.25R10

Tyre No.

6

Steel spring number

9/11+7

Front track base(mm)

1665,1830,1710

Fuel type

Diesel

Rear track base(mm)

1630,1800,1680

Emission standard

Euro 4

Transmission

6 forward gear,1 reverse gear

Cab

2.05meters high cab in metallic paint with one and a half row, luxurious interiors and seats,power steering,air-condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

ISF3.8s4R154

Beijing Foton Cummins Engine Co.,Ltd

3760

115(156hp)

Performance

Van body size(mm)

5100×1970×1900

Load capacity(TON)

5-6

Lowest refrigeration temperature(℃)

-18 Centigrade

Feature and Application

The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.

1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need.

2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
