Specifications
JMC small refrigerated truck for sale,high quality and low priceloading weight:2t /5cbm
Lowest temperature :-18T
110ph
JMC small refrigerated truck for sale,high quality and low price
factory direct sale,best price
loading weight:2t /5cbm
Lowest temperature :-18T
110ph ,engine model:JX493ZLQ4
meat hook is optional new design, super refrigeration, low temperature, less oil consumption
FEATURE&FUNCTION :
1.The refrigerator truck panels are made by advanced foam generation crafts and sandwich crafts: the panels are made by one-time hot-press process with the excellent FRP as the inner and the outer wall-plate, PU as the refrigerator material. So the refrigerator van has the characteristics of good refrigeration function, beautiful outlooks, and good strength.
2.We adopt refrigeration unit according to your temperature requirement on the box. The refrigeration unit uses the famous brand products of Carrier and Thermo King and it can adjust the temperature automatically, realizing the combination of the motive power and refrigeration. (KV300-10, KV500-10 without electric standby).

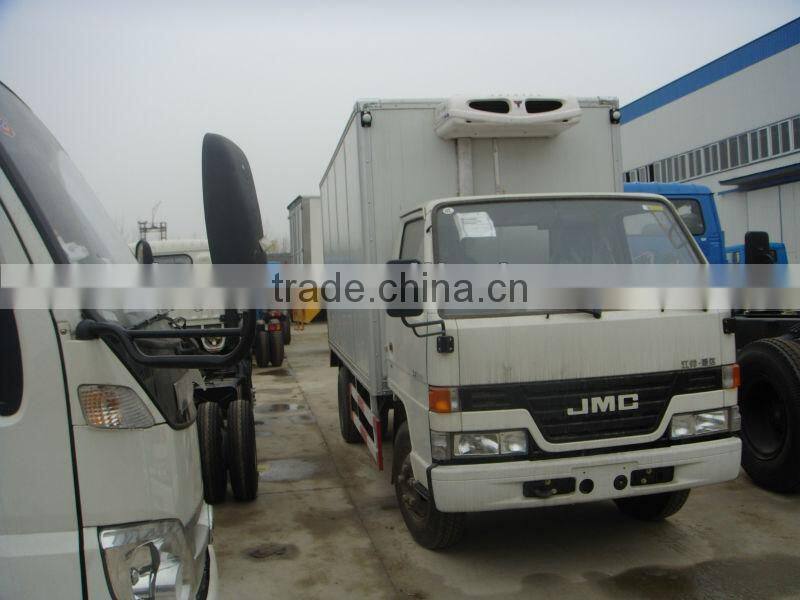

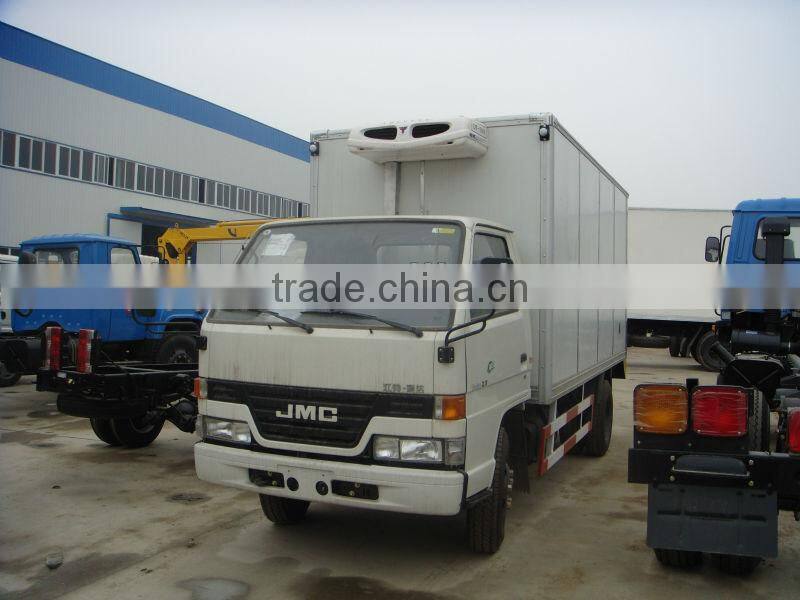

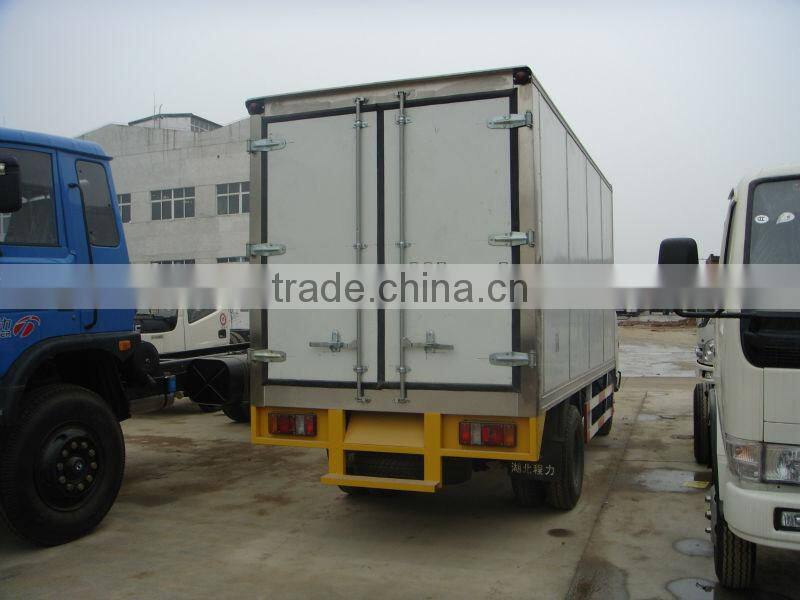

product image:
refrigerator truck

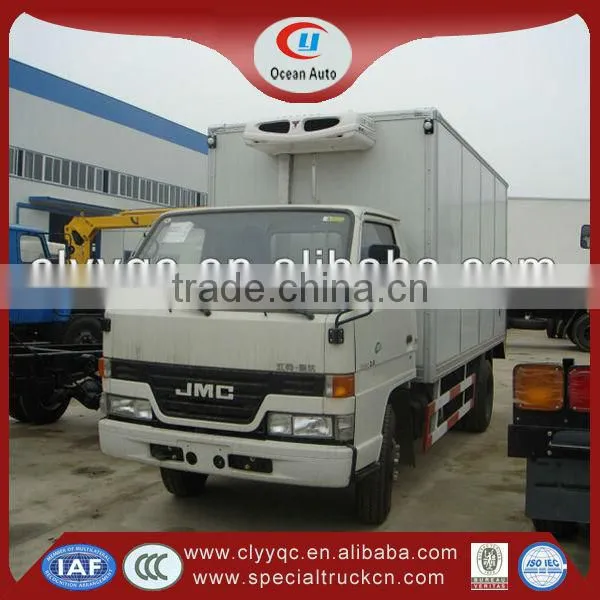

more refrigerated truck made by our factory
Main specifications:
Main specifications | |||||
Product model,name | CLW5040XLCJ4 Refrigerator truck | ||||
Total weight(Kg) | 4495 | Lowest temperature(°C) | -18 | ||
Payload (Kg) | 1495,1430 | Overall dimension (mm) | 5995×1950×2900 | ||
Curb weight(Kg) | 2870 | Box internal dimension(mm) | 4150×1750×1750 | ||
cab seats (man) | 2,3 | Payload utilization factor | 0.56 | ||
Approach/departure angle (°) | 27/14 | Front/rear hang(mm) | 1015/1620 | ||
Axle No. | 2 | Wheelbase(mm) | 3360 | ||
Axle load(Kg) | 1725/2770 | Max speed(Km/h) | 90 | ||
Chassis specifications | |||||
Chassis model | JX1040TGB24 | Chassis category | the truck classis (class 2) | ||
Brand name | JMC | Manufacture | JMC Motor Co.,ltd | ||
Overall dimension(mm) | 5825×1880×2020 | Tires No. | 6 | ||
Approach/departure angle (°) | 27/18.5 | Tire specification | 7.00R16LT 8PR | ||
Steel spring number | 7/4+5 | Front track(mm) | 1385 | ||
Type of fuel | Diesel | Rear track(mm) | 1425 | ||
Emission standard | GB17691-2005 Euro 4,GB3847-2005 | ||||
Engine model | Engine manufacture | Displacement(ml) | Power(Kw) | ||
JX493ZLQ4 | JMC Motor Co.,ltd | 2771 | 80 | ||
Special functions | |||||
Refrigerator truck is one enclosed van truck which used to transport frozen or fresh goods , is equipped with refrigeration unit and polyurethane insulation box body for refrigerated transportation vehicles, commonly used to transport frozen food, dairy products, fruits and vegetables, vaccines, drugs, etc. For special requirements of vehicles, such as meat hooks truck, hook can be mounted to the flesh, the middle, aluminum alloy guide rail, ventilation slots and other options.
| |||||
