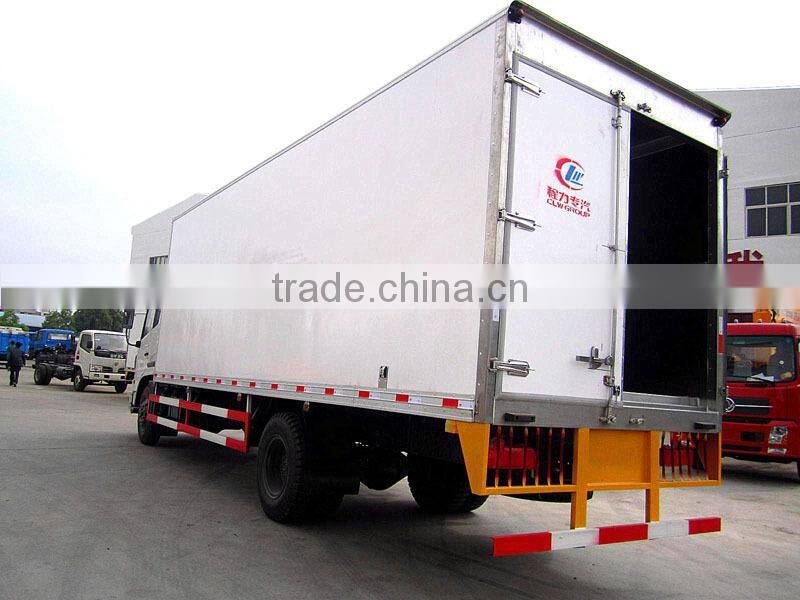

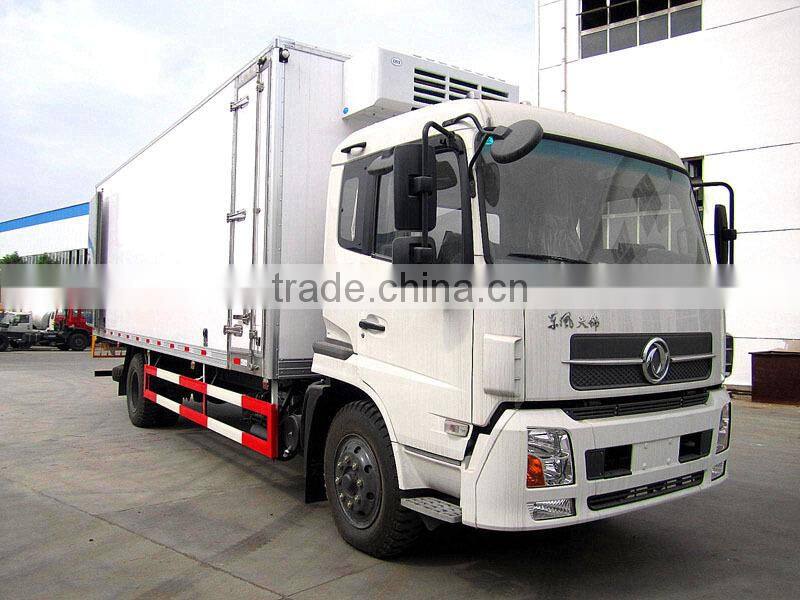

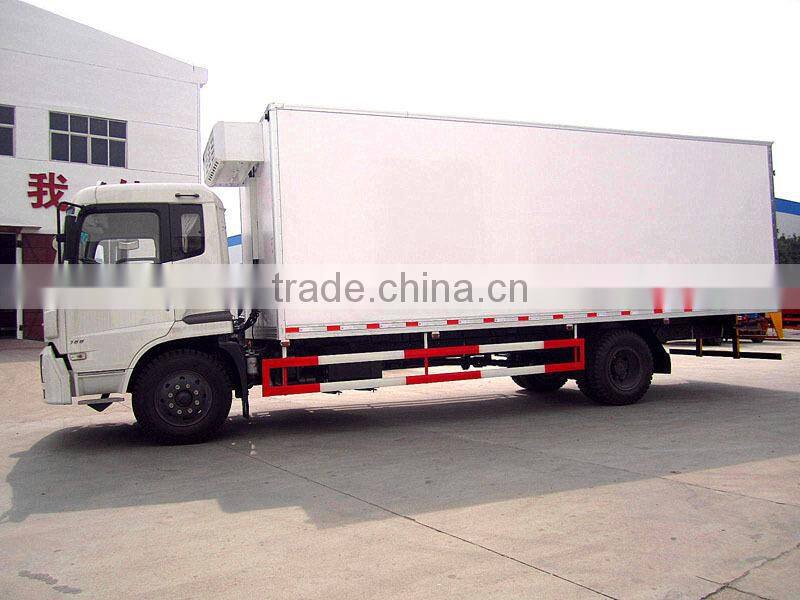

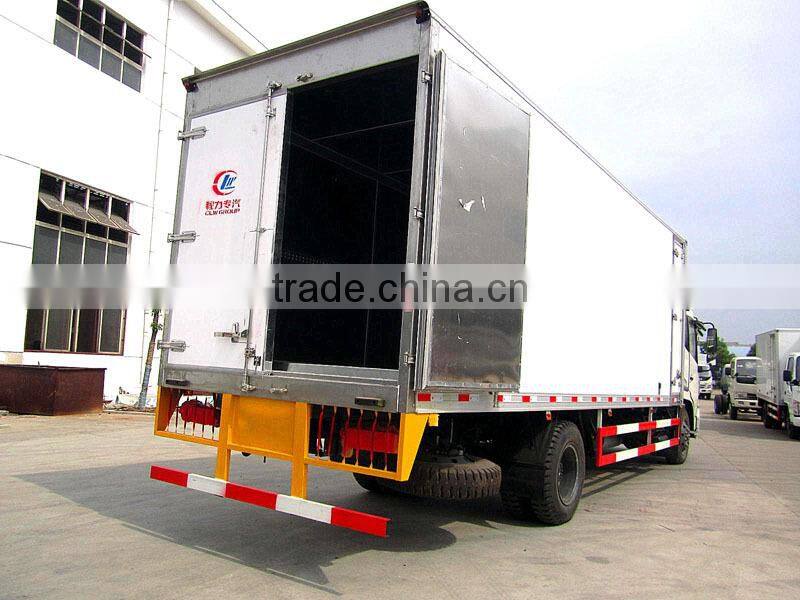

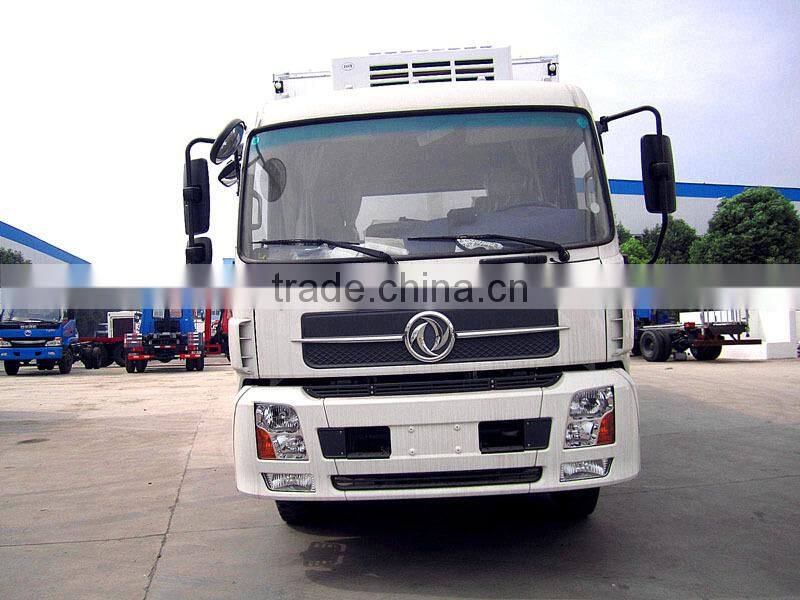

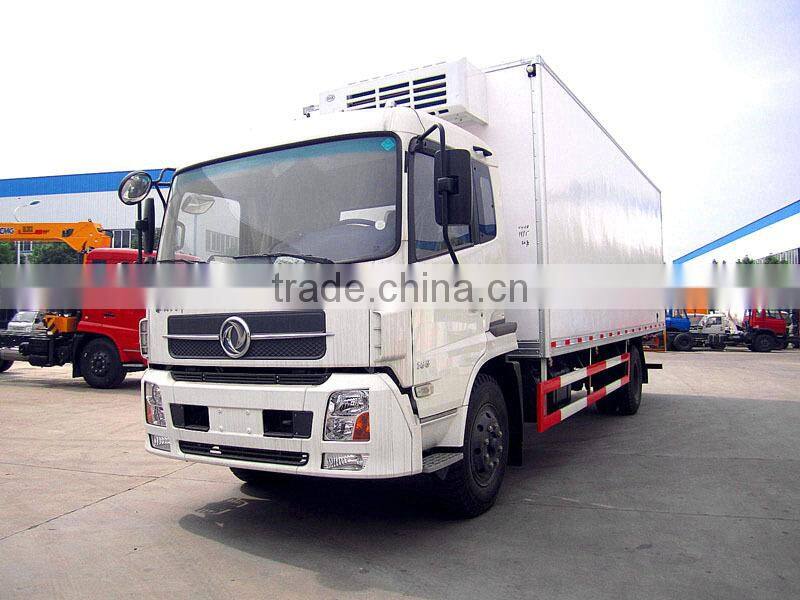

30 CBM Dongfeng Tianjin Refrigerator Truck, Reefer truck for sale

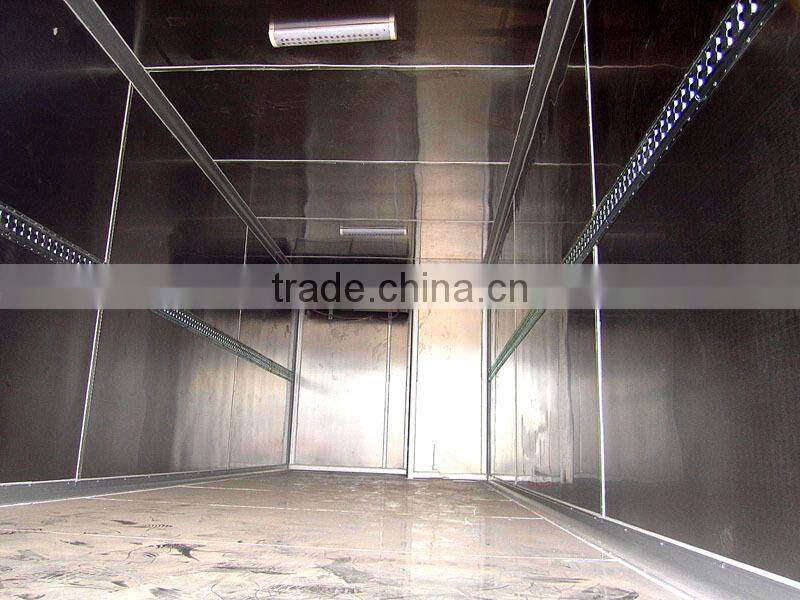

The refrigerator truck panels are made by advanced foam generation crafts and sandwich crafts: the panels are made by one-time hot-press process with the excellent FRP as the inner and the outer wall-plate, PU as the refrigerator material. So the refrigerator van has the characteristics of good refrigeration function, beautiful outlooks, and good strength.
We adopt refrigeration unit according to your temperature requirement on the box. The refrigeration unit uses the famous brand products of Carrier , it can adjust the temperature automatically, realizing the combination of the motive power and refrigeration.
1.Technical Features
I.Main specifications | ||||
Product model,name | JDF5121XLCDFL Refrigerator Truck | |||
Total weight(Kg) | 11900 | Tank body Volume(m3) | 30 | |
Payload (Kg) | 4850 | Overall dimension (mm) | 8550×2500×3850 | |
Curb weight(Kg) | 6855 | Box internal dimension(mm) | 6000×2250×2300 | |
cab seats (man) | 3 | transmission | 6 gears | |
Approach/departure angle (°) | 20/12 | Front/rear hang(mm) | 1430/2420 | |
Number of axles | 2 | Wheelbase(mm) | 5000,4700 | |
Axle load(Kg) | 4400/7500 | Max speed(Km/h) | 90 | |
temperature(°) | -18 ~ -5 | Tank heat preservation | Polyurethane foam | |
II.Chassis specifications | ||||
Chassis Model | DFL1120B | Chassis category | the truck classis (class 2) | |
Brand name | Dongfeng | Manufacture | Dongfeng Motor Company | |
Overall dimension (mm) | 8790,8290×2370×2760 | Tires No. | 6 | |
Approach/departure angle (°) | 20/13 | Tire specification | 9.00-20,9.00R20, | |
Steel spring number | 7/9+6,8/10+8 | Front track(mm) | 1880,1920,1940 | |
Type of fuel | Diesel | Rear track(mm) | 1800,1860 | |
Air conditioner | Yes | Emission standard | GB17691-2005 Euro III | |
Engine model | Engine manufacture | Displacement(ml) | Power(Kw) | |
ISDe180 30 ISDe185 30 ISDe160 30 B170 33 | Dongfeng Engine Co., LTD | 4500 6700 4500 5900 | 132 136 118 125 | |
duct image
Various of Refrigerator truck for sale
The above information is just for your reference. We can manufacture the trucks as per your request.
3.Certification

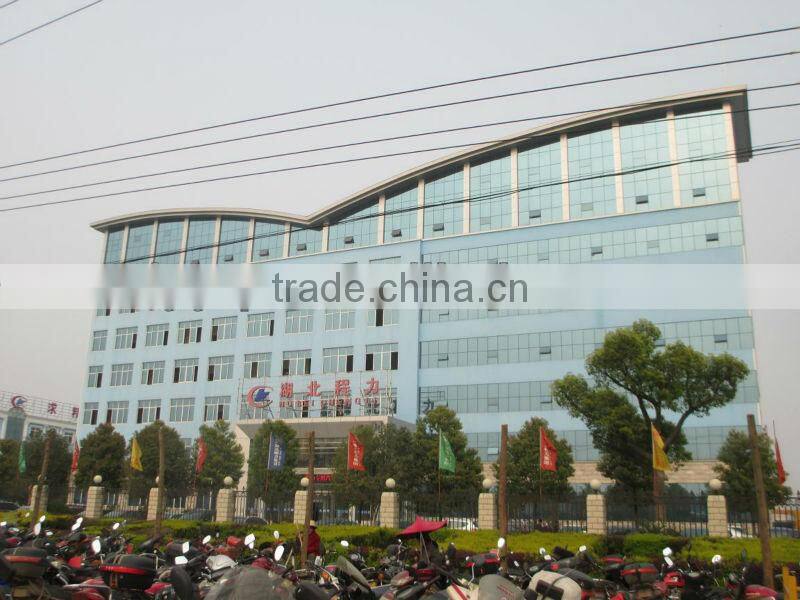

4.About Us
We are a professional manufacture for special automobiles, have export license, and our products have engaged in a large area of the overseas market, having a bussines backgroud of some years, good reputation, all of the products have workable price, excellent quality and prompt delivery.
5.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
6.TIME OF DELIVERY
Within 15-20 working days from the receipt date of deposit payment.
7.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment.
Our contact way
Welcome my friends all over the world to visit our factory warmly!
Hubei Chengli Ocean Auto Sales Co.,Ltd
ADD:Chengli Auto Industrial Park,Suizhou City,Hubei Province,China.
Web.: and clyyqc.en.china.cn
My name: Shirley
Tel: +86-13872869793/+86-722-3819709
Fax: +86-722-3819809
Skype:shirley201212
Whatsapp account: (+86) 15826736977
