DF 15m3 mini refrigerator freeze truck
- 100 Set / Sets per Month
- any port according to your requirement
- T/T
- Best selling SINOTRUK HOWO refrigerator truck for fresh fruits and vegetable transportation
- 20000 capacity poultry babychicks transported van truck for slaughterhouses
- Wuling 5CBM mini ice cream cold room van refrigerator chiller truck
- high quality small cooling/frozen box van truck
- Wuling refrigerator box truck for food transportation
- 1 ton 5 CBM small refrigerated truck
Product Details
Brand Name: | CLW | Model: | CLW5061XLC3 refrigerator truck | Place of Origin: | China HuBei |
Transmission Type: | Manual | Condition: | New | ||
Emission Standard: | Euro 3 | Fuel Type: | Diesel | Dimensions (L x W x H) (mm): | 5995*2020*3000 |
Box Dimensions (L x W x H) (mm): | 4000*1850*1800 | Temperature Range: | -18℃-0℃ | Gross Vehicle Weight: | 6495 |
Product Description
Specifications
DF 15m3 mini refrigerator freeze truck1Factory direct sale
2Certificate ISO9001
3loading 8t 15m3
4Temperature -18~+45
DF 15m3 mini refrigerator freeze truck
factory direct sale,best price
1. Certificate ISO9001
2. loading capacity 8T, 15m3
3.Temperature -18°C~+45°C
4. new design, super refrigeration, low temperature, less oil consumption
FEATURE&FUNCTION :

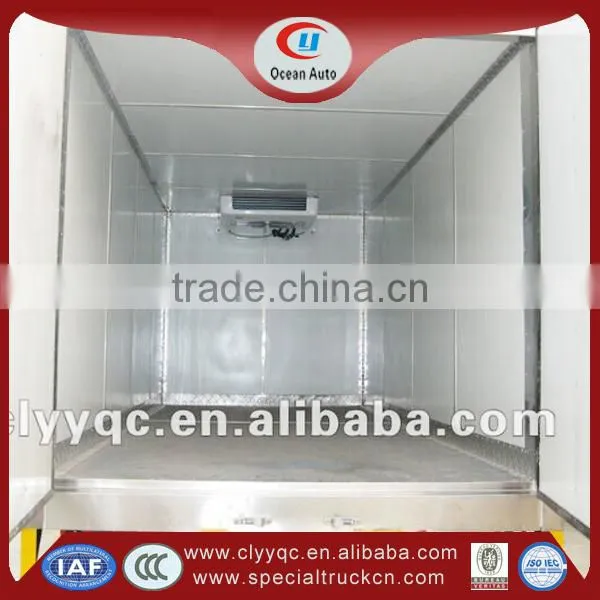

1.The refrigerator truck panels are made by advanced foam generation crafts and sandwich crafts: the panels are made by one-time hot-press process with the excellent FRP as the inner and the outer wall-plate, PU as the refrigerator material. So the refrigerator van has the characteristics of good refrigeration function, beautiful outlooks, and good strength.
2.We adopt refrigeration unit according to your temperature requirement on the box. The refrigeration unit uses the famous brand products of Carrier and Thermo King and it can adjust the temperature automatically, realizing the combination of the motive power and refrigeration. (KV300-10, KV500-10 without electric standby).
Main parameter
tem | parameter | unit | |
Vehicle model | CLW5061XLC3 refrigerator truck |
| |
Chassis model | EQ1060TJ20D3 |
| |
GVW | Appro×6495 | kg | |
Rated load wight | Appro×2865 | ||
Curb wight | Appro×3500 | ||
Overall dimensions | 5995×2020×3000 | mm | |
Compartment dimensions | 4000×1850×1800 | ||
Wheel base | 3300 | ||
F/R track base | 1506/1466 | ||
Approach/departure angle | 19/10 | ° | |
Exhaust/kw | 2659/66 | ml/kw | |
Max speed | 90 | km/h | |
Tire specification | 7.00-16,6.50-16 | Engine type | YC4F90-30 |
Traction system | 4×2 | Number of tires | 6 |
Number of axles | 2 | Electric system | 24v |
Operation control system |
Electrically hydraulic control | Allowable passengers in cab | 2,3 |
Engine | Guangxi Yuchai ,diesel engine Co.,Ltd. | ||
Function | Flat van, maintenance-free maintenance | ||
Production cycle | About 18 workdays |
