Specifications
Flat bed construction machine towing flat bed transport truck1Factory direct sale, best price
2Certificate ISO9001

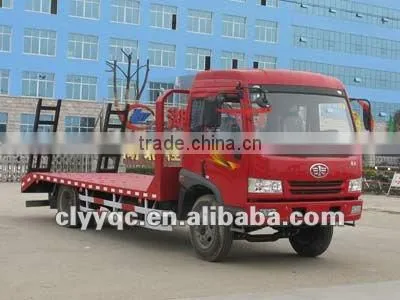

Flat bed construction machine towing flat bed transport truck
factory direct sale,best price
1. Certificate ISO9001
2. Drive Mode:4*2
3.loading capacity 18T
4.new design less oil consumption
FEATURE&FUNCTION :
Flat Transporter used to load flat construction machinery, excavator, forklift, harvesting and other construction machinery transport, car rear with rear ladder, with legs, 6mm thick floor is checkered.

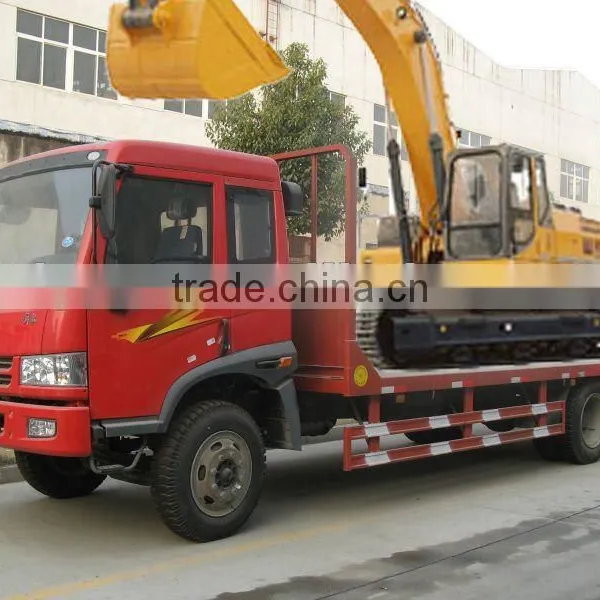

product image:
Main parameter
ITEM | PARAMETER | UNIT | DATA | REMARK |
Whole vehicle | Vehicle model |
| CLW5160TPBC3 |
|
Manufacture date |
| 2011 | According to you | |
Overall dimension | MM | 9000*2500*2800 | According to you | |
GVW | KG | 16000 |
| |
Curb weight | KG | 6805 |
| |
Max Loading capacity | KG | 10000 |
| |
Max Gradablity When full loading | Deg | 35 |
| |
Max speed | Km/h | 90 |
| |
Front/rear hanging | Mm | 1330/2670 |
| |
Close/departure angle | Deg | 18/8 |
| |
Leaf spring | Pcs | 11/7+6 |
| |
Drive wheel |
| 4*2 |
|
Chassis | Chassis model |
| CA1163P9K2L4A3E |
| |
Manufacture |
| FAW Motors Co.,Ltd | |||
Manufacture date |
| 2011 | |||
Wheelbase | mm | 4800.5000 |
| ||
Tire Specification |
| 8.25-20,8.25R20 |
| ||
Nos of tire | Pcs | 6+1 |
| ||
Engine | Engine model | CA4DF3-14E3 | |
Manufacture | FAW Motors Co.,Ltd | ||
Power | 109 |
| |
Engine Horse power | 140 |
| |
Displacement | 4750 |
| |
Emission Standard | EURO III | ||
Engine details more | Direct injection | ||
Watercooled and Turbocharged | |||
Flat bed | Brand | CLW |
Manufacturer | Hubei ChengLi Speical Automobile Co.,Ltd | |
Material | Diamond Plate Carbon steel | |
Thickness of flat(mm) | 5 | |
Ladder | 600x2200 with double springs |
The picture and parameter mentioned above is only for reference. The Specific product will be produced according to your order.
For more information about the delivery, warranty,payment,more specific details , please don't hesitate to contact with us!
