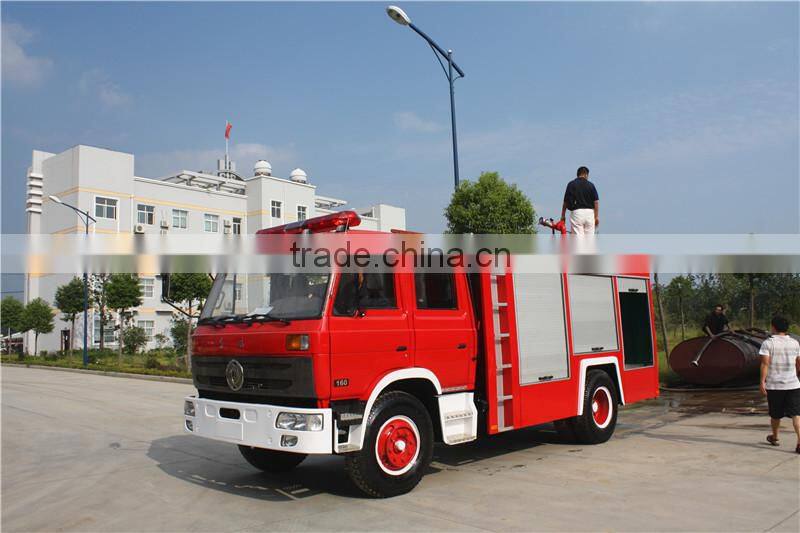

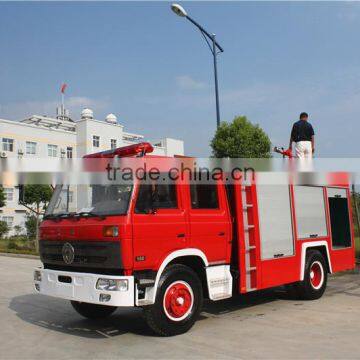

Dongfeng 4000liters mini fire truck
Main specification | |||||||||
Product model and name | 4000L Water tank fire fighting truck | ||||||||
Gross weight(Kg) | 7450 | Drive type | 4X2 | ||||||
Payload(Kg) | 2000 | Overall dimension(mm) | 6850X2285X2930 | ||||||
Curb weight(Kg) | 5000 | Cab seats | 6 | ||||||
Approach/departure angle(°) | 20/13 | Front/rear hang(mm) | 1180/1815 | ||||||
Axle No. | 2 | Wheelbase(mm) | 3950 | ||||||
Axle load(Kg) | 3050/4400 | Max speed(Km/h) | 90 | ||||||
Chassis specification | |||||||||
Chassis model | EQ1108KJ | Manufacturer | Dongfeng Motor Co.,Ltd | ||||||
Brand name | Dongfeng | Dimension(mm) |
| ||||||
Tyre specification | 9.00-20 | Tyre No. | 6 | ||||||
Emission standard | Euro 3 | Transmission | 5 forward gear,1 reverse gear | ||||||
Cab | Four opening doors and whole flat top with crew cab. And all steel frame welded structure with optional air condition. | ||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | Horsepower(HP) | |||||
YC4E160-33 | Guangxi Yuchai Machinery Co.,Ltd | 4260 | 118 | 160 | |||||
Water tank fire fighting truck performance | |||||||||
Water tank volume(L) | 4000 | ||||||||
Fire monitor | Fire monitor model PS30, level rotation by 360º, Max elevation +45º, Max angle of depression -15º, Flow rate:30L/S,Range≥50 m/1.0MPa | ||||||||
Fire pump | Model:CB10/30 Flow rate:30L/S Pressure:1.0MPa | ||||||||
Water tank fire truck Feature | |||||||||
A.The water tank fire fighting truck is mainly made up of the cab,water tank,water pump house,equipment boxes,water pump,and inlet and outlet water system,fire monitor,electronic alarm,alarm lamp etc.parts. B.The entire distribution of truck is divided into three parts.The front part is passenger room.The middle part is pump house.The rear part is the truck body.The front part of car body is water tank,the rear part is equipment box. C.It has the feature of high power,high speed and big carrying liquid capacity etc.It is adopted the extended cab.With seat comfortably and centralized operation,simple maintenance, D.it is widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment. | |||||||||

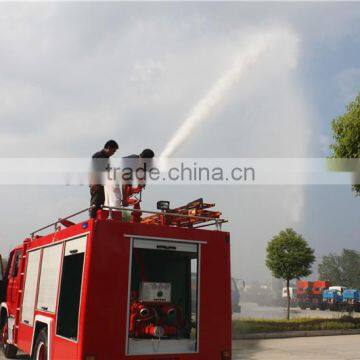

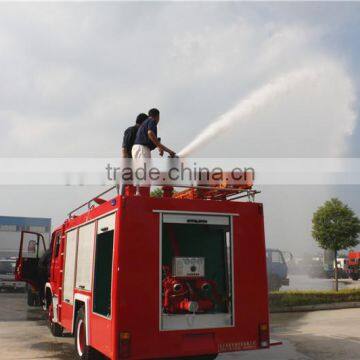

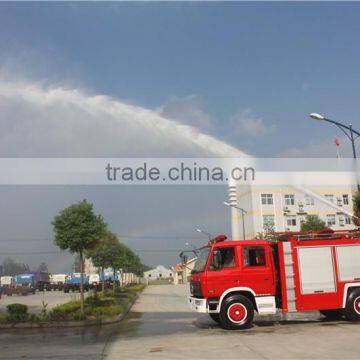

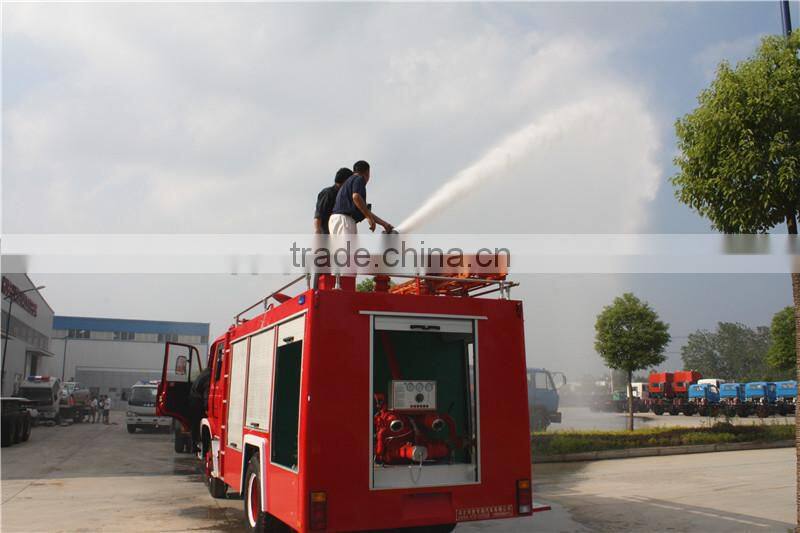

Fire monitor operation image
A plenty of fire trucks exported to oversea market
Factory Devices
1.About the package of our trucks,usually it is nude that covered with wax.And it also can be packed as your need. 2.About the shipping,there are many ways,such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request. | ||||||||
| A.Delivery time | ||||||||
| Usually within 10 to 25 days after getting your deposit. And the accurate time depends on your QTY. | ||||||||
| B.Terms of payment | ||||||||
| 30% of contract amount must be paid by T/T before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment. | ||||||||
| C.After-sales warranty | ||||||||
| The warranty period is one year or 25000KM that drove under normal operation and control since our clients get the trucks. And we can supply maintenance for the whole life. |
