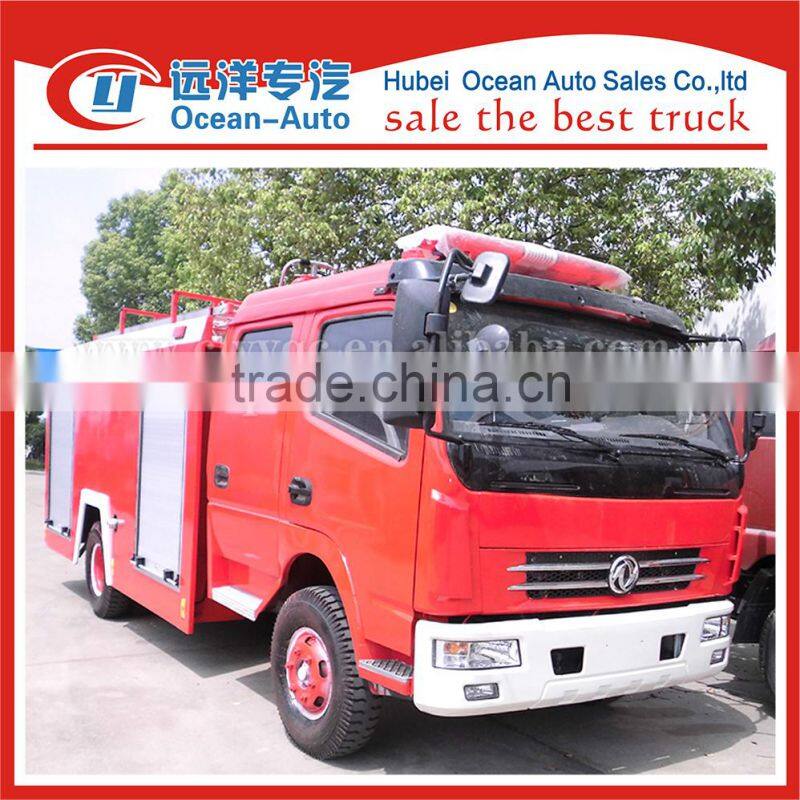

Dongfeng DFAC 4000liter water tank mini fire truck for sale

Main specification

Product model and name

JDF5070GXFSG20/D Water tank fire truck

Gross weight(Kg)

7450

Drive type

4X2

Payload(Kg)

2000

Overall dimension(mm)

6850X2285X2930

Curb weight(Kg)

5000

Cab seats

6

Approach/departure angle(°)

20/13

Front/rear hang(mm)

1180/1815

Axle No.

2

Wheelbase(mm)

3800

Axle load(Kg)

3050/4400

Max speed(Km/h)

90

Chassis specification

Chassis model

EQ1070TJ9AD3

Manufacturer

Dongfeng Motor Co.,Ltd

Brand name

Dongfeng

Dimension(mm)

6695×2285×2350

Tyre specification

7.50R16

Tyre No.

6

Steel spring number

11/9+7

Front track base(mm)

1835,1750

Fuel type

Diesel

Rear track base(mm)

1640,1586

Emission standard

Euro 3

Transmission

5 forward gear,1 reverse gear

Cab

Four opening doors and whole flat top with crew cab,and all steel frame welded structure, hydraulic turnover mechanism with air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

Horsepower(HP)

CY4102-E3C

Dongfeng Chaoyang Chaochai Power Co.,Ltd

3856

88

120

Water tank fire fighting truck performance

Water tank volume(L)

4000

Fire monitor

Fire monitor model PS30, level rotation by 360º,

Max elevation +45º, Max angle of depression -15º,

Flow rate:30L/S,Range≥50m/1.0MPa

Fire pump

Model:CB10/30 Flow rate:30L/S Pressure:1.0MPa

Water tank fire truck Feature

A.The water tank fire fighting truck is mainly made up of the cab,water tank,water pump house,equipment boxes,water pump,and inlet and outlet water system,fire monitor,electronic alarm,alarm lamp etc.parts.

B.The entire distribution of truck is divided into three parts.The front part is passenger room.The middle part is pump house.The rear part is the truck body.The front part of car body is water tank,the rear part is equipment box.

C.It has the feature of high power,high speed and big carrying liquid capacity etc.It is adopted the extended cab.With seat comfortably and centralized operation,simple maintenance,

D.it is widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment.
