mini 2t Water Tank Fire Truck

Specifications

mini 2t Water Tank Fire Truck
1Factory direct sale,bestprice
2Certificate ISO9001
3Capaciy 2m3 water
4New design

mini 2t Water Tank Fire Truck

1.capacity 2m3  water

2. Drive Mode:4*2
3.chassis  Dongfeng truck

4.new design,more solid ,more powerful.



Feature& Fuction

Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially.

For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment.

The fire truck is usually kept in fire bureau, and is driven to the accident location by the fire fighter. Most fire trucks are painted in red, but still some rare places that is painted in yellow. The siren is usually taken as the standard device for the truck.

In fact, fire truck is the common name for the truck that is equipped with various fire fighting devices and tools. It is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.

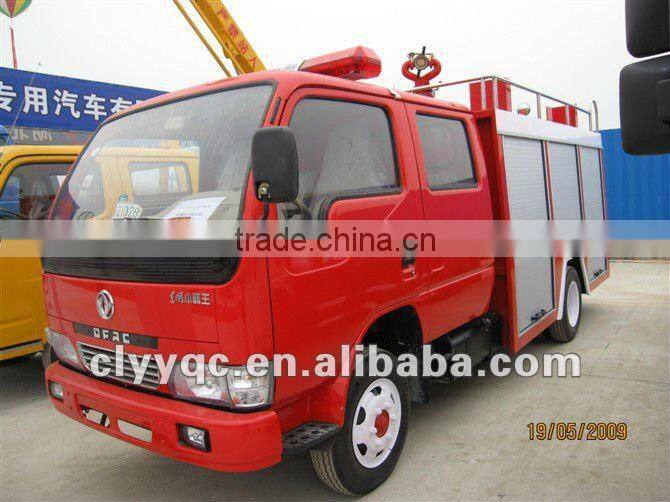

product image:



fire truck

fire truck

fire truck



Main Parameter

Entire Vehicle	Main Parameter	Gross Weight(kg)	5835
		Rated Weight(kg)	2035
		Total Weight(kg)	3500
		Overall Dimension	6140*1885*2660
		(L * W * H)(mm)
Chassis	Chassis Mode	JX1060TSG23
	Engine Parameter	Mode	JX493ZLQ3,JX493ZLQ3A
		Power(kw)	85,75
		Displacemint(ml)	2771, 2771
		Fuel Type	Diesel
	Functional Parameter	Max Speed(km/h)	95	F/R Tread(mm)	1385/1425
		Leaf Spring	7/5+5	F/R Overhang(mm)	1015/1765
		Axle Load(kg)	1940/3895	Approach/Departure angle(°)	27/13
		Tire Size	7.00R16LT,     7.00-16LT	Number of Tires	6
		Wheelbase(mm)	3360	Number of Axles	2
Specialized Device	Tank Parameter	Water Tank	Capacity:2t,                                                                 Dimension(L*W*H)(mm):984×1800×1200

The picture and parameter mentioned above is only for reference. The Specific product will be  produced according to your order.





Certification
