Specifications
4*2 4t Dongfeng Water Tanker Fire Truck1Factory direct sale,bestprice
2Certificate ISO9001
3Capaciy 4000Lwater
4New design
4*2 4t Dongfeng Water Tanker Fire Truck
factory direct sale,best price
1.capacity 4m3 water
2. Drive Mode:4*2
3.chassis Dongfeng truck
4.new design,more solid ,more powerful.
Feature& Fuction
Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially.
For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment.
The fire truck is usually kept in fire bureau, and is driven to the accident location by the fire fighter. Most fire trucks are painted in red, but still some rare places that is painted in yellow. The siren is usually taken as the standard device for the truck.
In fact, fire truck is the common name for the truck that is equipped with various fire fighting devices and tools. It is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.

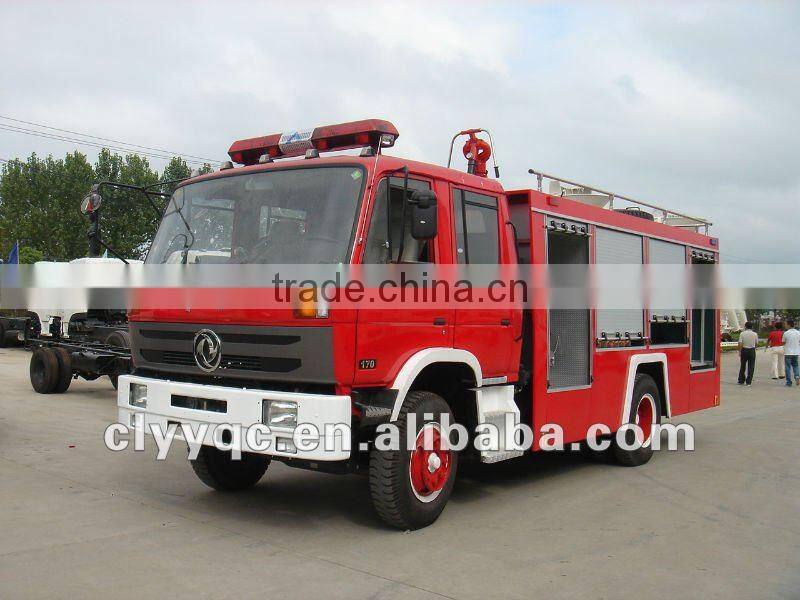

product image:
fire truck
fire truck
fire truck
Main Parameter
| Entire Vehicle | Main Parameter | Gross Weight(kg) | 12500 | ||
| Rated Weight(kg) | 4250 | ||||
| Total Weight(kg) | 7800 | ||||
Overall Dimension (L * W * H)(mm) | 8235×2490×3400 | ||||
| Chassis | Chassis Mode | EQ1126KJ1 | |||
| Engine Parameter | Mode | ISBE185 30, ISDe160 30, ISDe180 30, ISDe185 30, B190 33, EQD180-31 | |||
| Power(kw) | 136, 118, 132,136,140, 132 | ||||
| Displacemint(ml) | 5900, 4500, 4500, 6700, 5900, 6234 | ||||
| Fuel Type | Diesel | ||||
| Functional Parameter | Max Speed(km/h) | 90 | F/R Tread(mm) | 1900/1800 | |
| Leaf Spring | 8/10+7 | F/R Overhang(mm) | 1205/2330 | ||
| Axle Load(kg) | 3900/8600 | Approach/Departure angle(°) | 25/14 | ||
| Tire Size | 9.00-20,9.00R20 | Number of Tires | 6 | ||
| Wheelbase(mm) | 4700, 5000 | Number of Axles | 2 | ||
| Specialized Device | Tank Parameter | Water Tank | Capacity:4.250t, Dimension(L*W*H)(mm):2800*1395*1090 | ||
| Punp | CB10/40, Folwing rate: 40L/s | ||||
| Monitor | PS40, Flowing rate: 40L/s/1.0MPa, Covering range: ≥55m | ||||
The picture and parameter mentioned above is only for reference. The Specific product will be produced according to your order.
Certification
For more information, please don't hesitate to contact with us!
Rokc Hwang
International Trade Manager
Tel.0086-13886861936 0086-0722-3819709 Fax 0086-0722-3819809
Official website international
Hubei Chengli Special Automobile Co.,Ltd
Factory Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China
