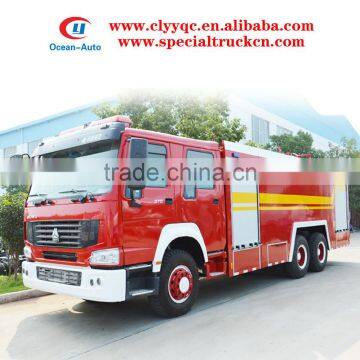

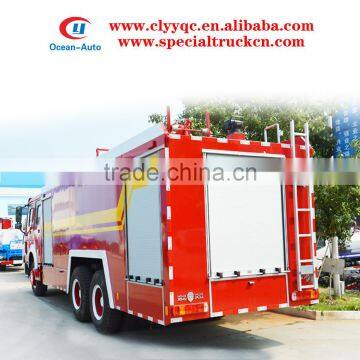

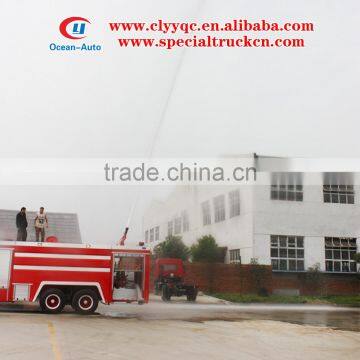

SINOTRUK HOWO 12000 Liter Remote Control Fire Truck Used Fire Truck for Sale

Vehicle Name

Water tank fire truck

Chassis model

ZZ1257M4647C

Mass parameter

(kg)

Payload

12350

Overall dimension(mm)

10025×2500×3600

Curb weight

14800

/

/

Max gross weight

27600

Wheelbase (mm)

4600+1350

Engine parameter

Model

WD615.97E

Type

Diesel

Power/Displacement(kw/ml)

221/9726

Manufacturer

China Heavy Duty Automobile Group Co Ltd

Performance parameter

Max speed(km/h)

85

Tread(mm)

Front track base

2022,2041

Max gradeability (%)

25

Rear track base

1830

Fuel consumption/100KM(L)

28

Hang length(mm)

Front hang

1500

Empty gradient(%)

20

Rear hang

2490

Minimum turning diameter (m)

18

Driving Angle (°)

Approach angle

16

Minimum ground clearance (mm)

248

Departure angle

13

Chassis configuration

HOWO cab HW76, 8 forward gear, 12Ton bridge,11.00 nylon tyre,180L fuel tank.

Special function

Water tank capacity(L)

12000L-15000L

Fire monitor

Fire monitor model PS50,level rotation with 360º,Max elevation+45º,the max angle of depression -15º,the rate of flow 50L/S,range≥60m/1.0MPa.

Fire pump

Model: CB10/60 Rate of flow:60L/S     Pressure:1.0MPa

1

Suction pipe

pc

2

100×2000mm

2

Water filter

pc

1

3

Two watershed

pc

1

4

Catchment

pc

1

5

Fire hose 13type

roll

6

65×20m

Fire hose 13type

roll

4

80×20m

6

Water Hose bandage

pc

4

7

Water Hose hook

pc

4

8

Water hose bridge

pair

2

9

Reducing interface

pc

1

10

Overground hydrant wrench

pc

1

11

Underground fire plug wrench

pc

1

12

Suction pipe wrench

pc

2

13

Dry powder fire extinguisher

pc

1

14

Fire bucket

pc

1

15

DC gun

pc

1

16

Multifunction gun

pc

1

17

Fire shovel

pc

1

18

Crowbar

pc

1

19

Fire axe

pc

1

20

Fire pickaxe

pc

1

21

Fire waist ax

pc

1

22

Basic hand tool

pair

1

Original factory
