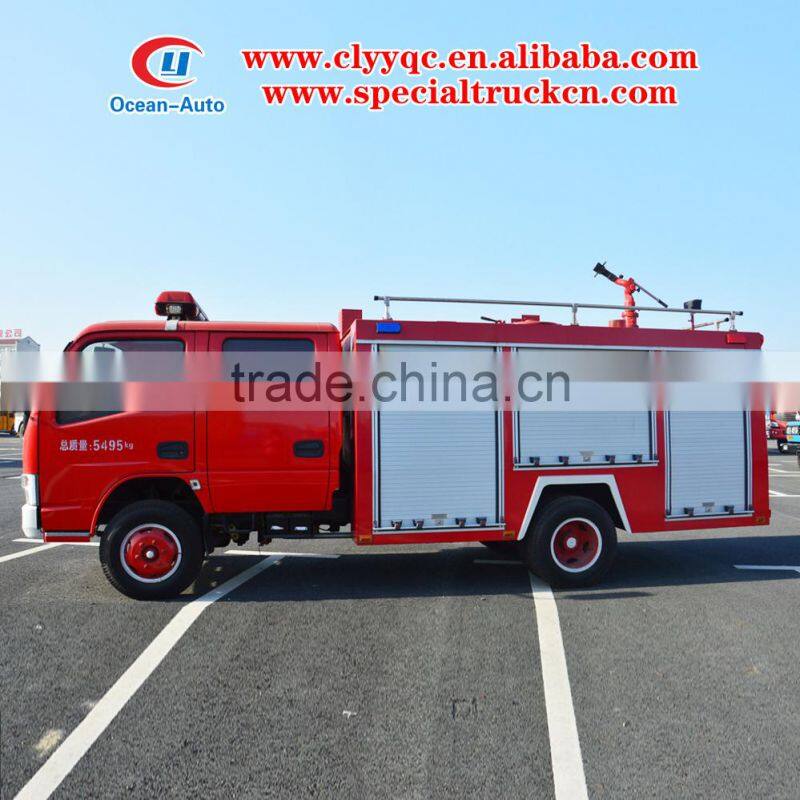

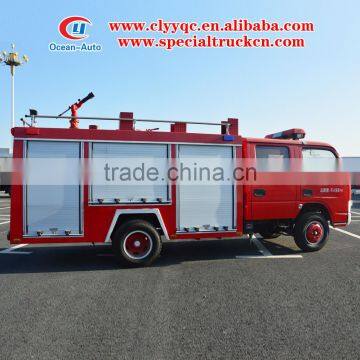

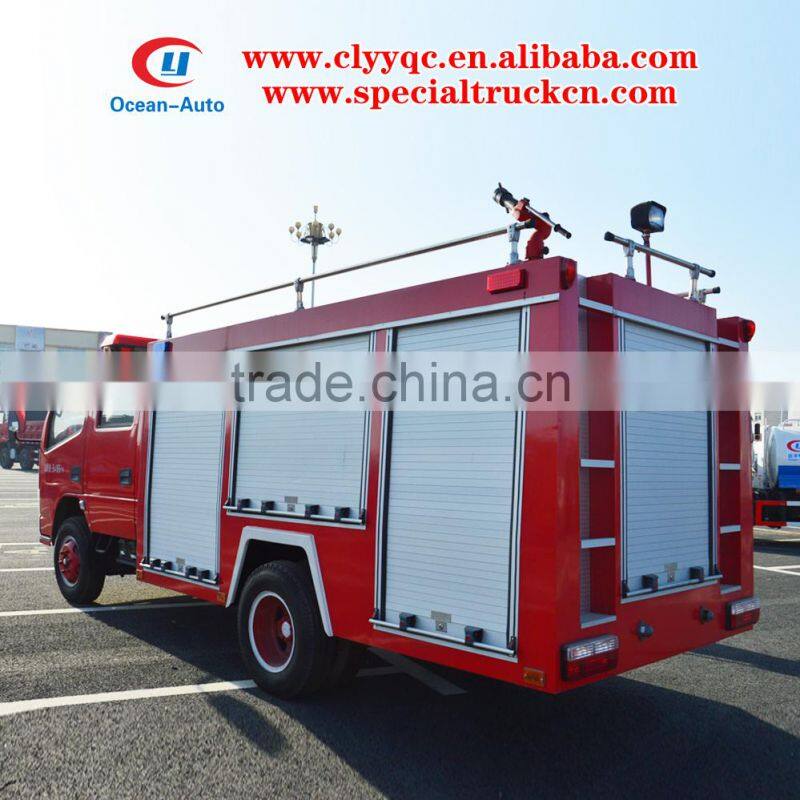

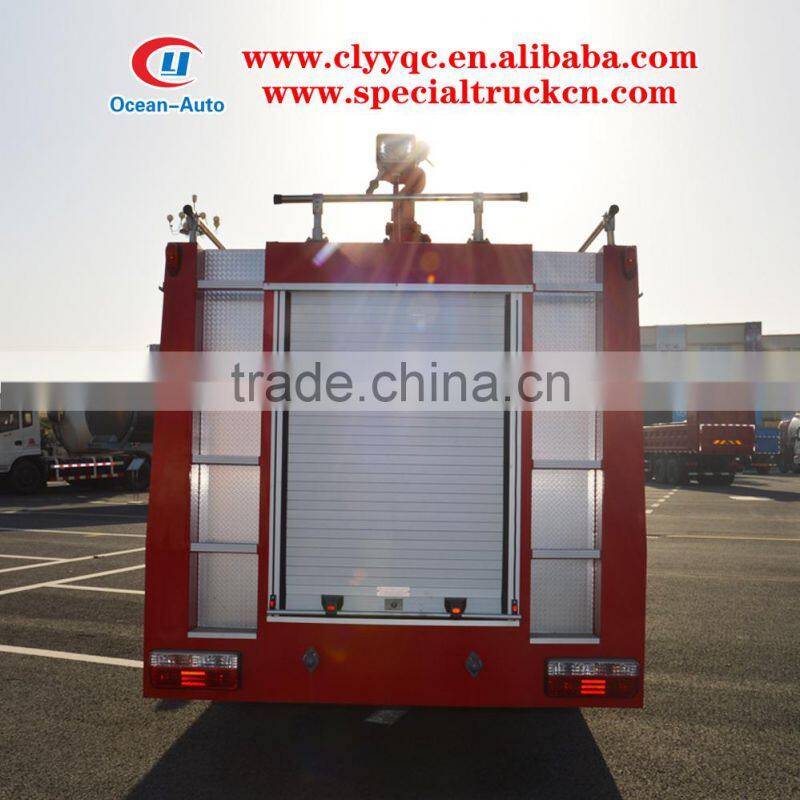

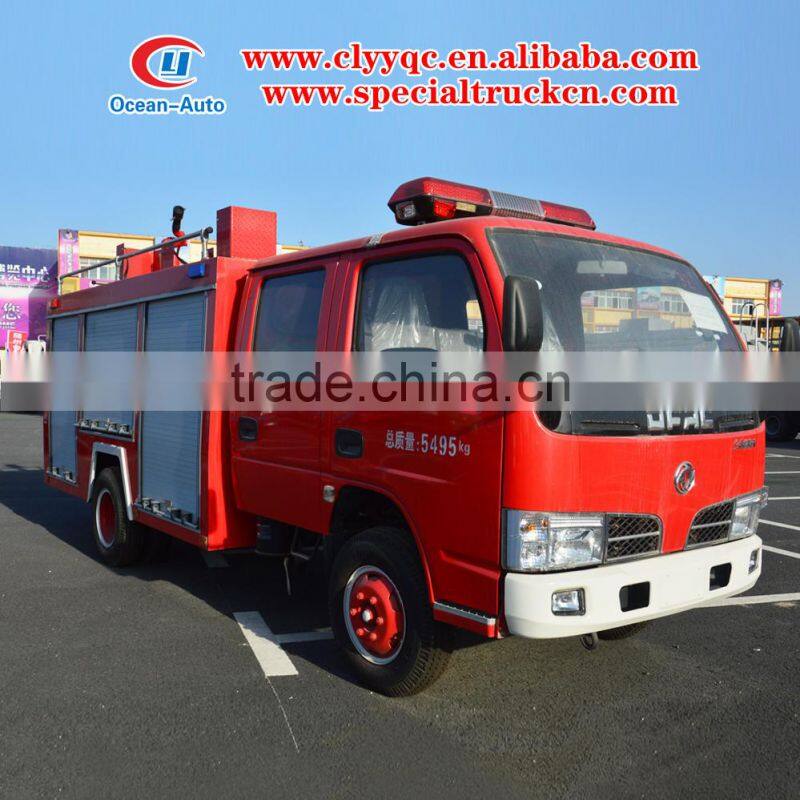

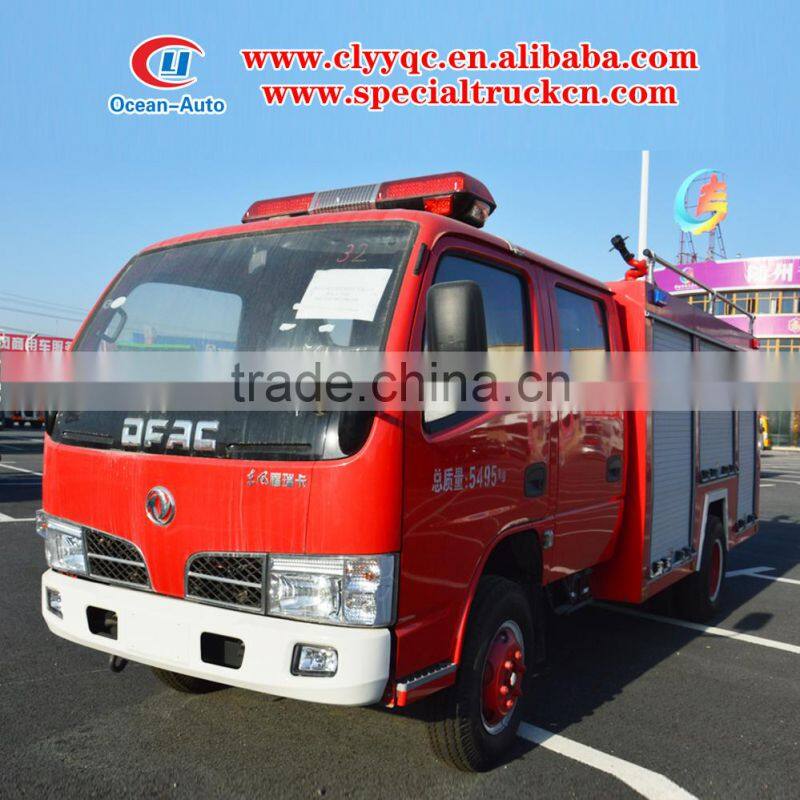

Dongfeng DFAC 2 TON Fire Tank Truck Mini Airport Fire Truck for Sale

Main specification

Product model and name

JDF5050GXFSG10/X Water tank fire fighting truck

Gross weight(Kg)

5495

Drive type

4x2

Payload(Kg)

1250

Overall dimension(mm)

6260x1900x2750

Curb weight(Kg)

3870

Cab seats

6

Approach/departure angle(°)

19/12

Front/rear hang(mm)

1032/1928

Axle No.

2

Wheelbase(mm)

3300

Axle load(Kg)

2470/3025

Max speed(Km/h)

90

Chassis specification

Chassis model

EQ1050NJ20D3

Manufacturer

Dongfeng Motor Co.,Ltd

Brand name

Dongfeng

Dimension(mm)

5845x1760x2130

Tyre specification

7.00-16

Tyre No.

6

Steel spring number

8/9+5,6/8+4

Front track base(mm)

1404,1506

Fuel type

Diesel

Rear track base(mm)

1458,1466

Emission standard

Euro 3

Transmission

5 forward gear,1 reverse gear

Cab

Four opening doors and whole flat cab with double row,whole steel frame and welding structure with optional air condition.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

Horsepower(HP)

CY4102-C3F

Dongfeng Chaoyang Chaochai Power Co.,Ltd

3856

70

95

Water tank fire fighting truck performance

Water tank volume(L)

2000 to 2500 (2 to 2.5 CBM)

Fire monitor

Fire monitor model PS20, level rotation by 360º,

Max elevation +45º, Max angle of depression -15º,

Range≥40m/1.0MPa

Fire pump

Model:CB10/20 Flow rate: 20L/S  Pressure:1.0MPa

Water tank fire truck Feature

A.The water tank fire fighting truck is mainly made up of the cab,water tank,water pump house,equipment boxes,water pump,and inlet and outlet water system,fire monitor,electronic alarm,alarm lamp etc.parts.

B.The entire distribution of truck is divided into three parts.The front part is passenger room.The middle part is pump house.The rear part is the truck body.The front part of car body is water tank,the rear part is equipment box.

C.It has the feature of high power,high speed and big carrying liquid capacity etc.It is adopted the extended cab.With seat comfortably and centralized operation,simple maintenance,

D.it is widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment.
