Sinotruk Howo 10CBM New Concrete Mixers Trucks

Name: Sinotruk Howo 10CBM New Concrete Mixers Trucks
Brand: SINOTRUK
SKU: 140781970
Availability: InStock

Hubei Ocean Special Automobile Co., Ltd.

US$ 49,000 - 52,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

SINOTRUK

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hubei, China

Brand Name SINOTRUK

Model Number ZZ5251GJBN3841C

Weight 25000

Dimension(L*W*H) 8935x2490x3875

Power(W) 247kw

Certification CCC

Warranty 12 Months

After-sales Service Provided Overseas service center available

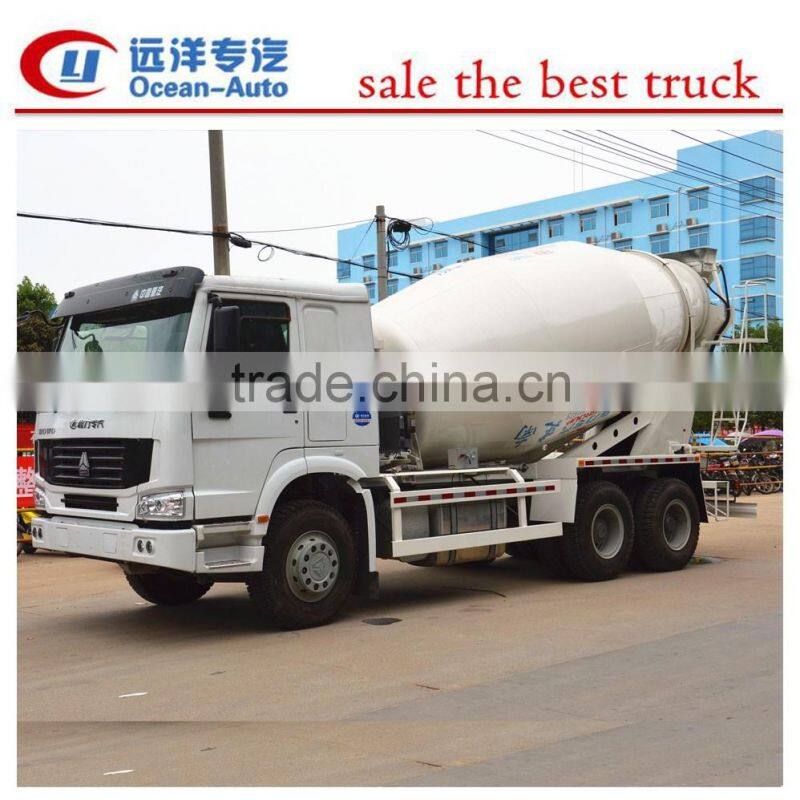

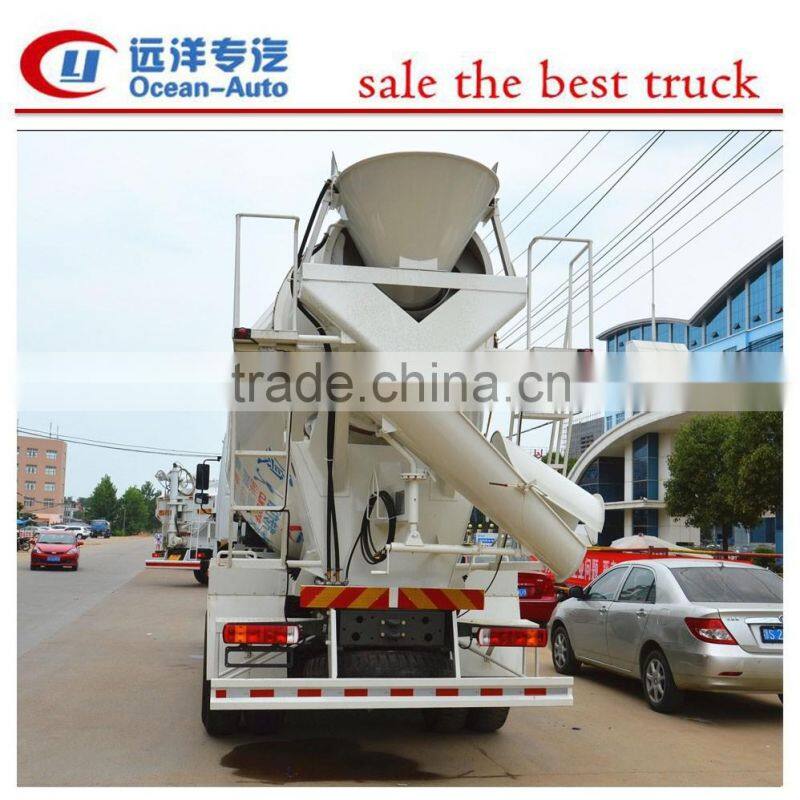

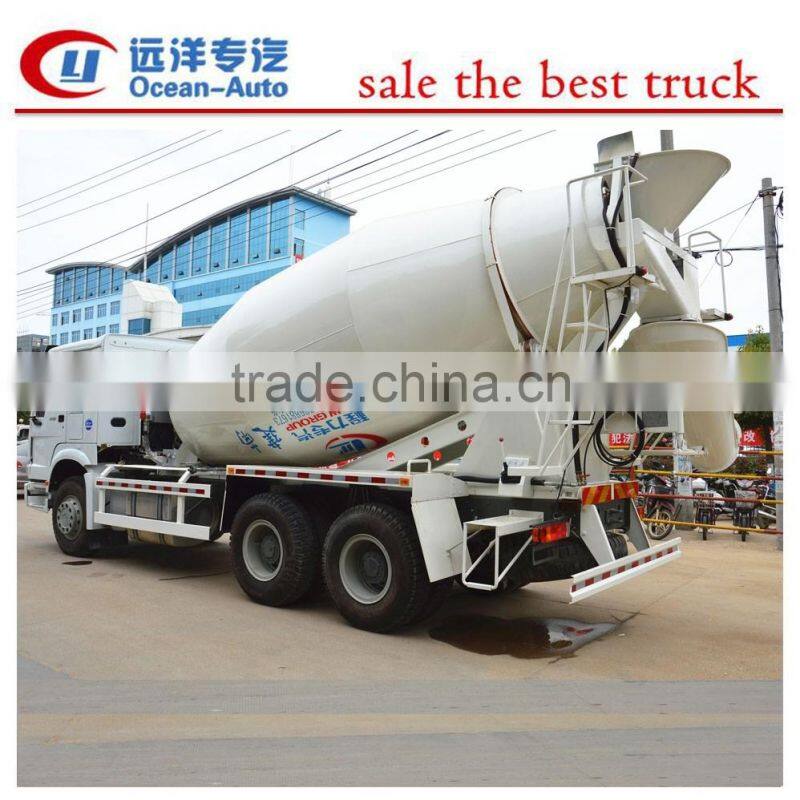

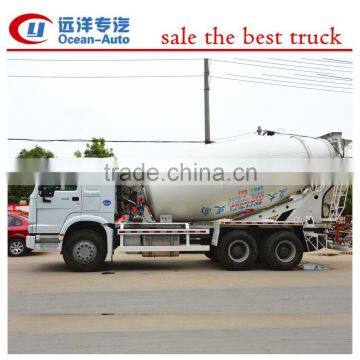

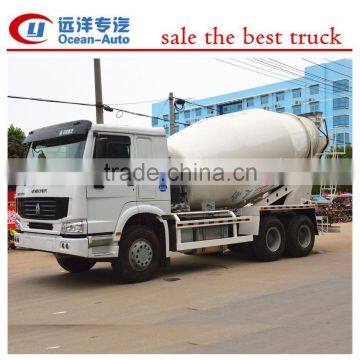

Sinotruk Howo 10CBM New concrete mixers trucks

Howo concrete mixer truck Parameters

Main specifications
Product model,name	ZZ5251GJBN3841C Concrete mixer truck
Gross weight(Kg)	25000		Drive type	6 x 4
Payload(Kg)	11980		Overall demension(mm)	8935x2490x3875
Curb weight(Kg)	12890		Cab seats(man)	2
Approach/departure angle	20.5/22		Front/rear hang(mm)	1320/2515
Number of axles	3		Wheelbase(mm)	4200+1350
Axle load(Kg)	7000/18000		Max speed(Km/h)	74
Chassis specifications
Chassis model	ZZ1251N3841C		Manufacture	China Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd.
Brand name	Star - Steyr		Overall dimension(mm)	7820x2490x3070
Tire specification	12.00R20		Tires No.	10
Steel spring number	12/12,10/12		Front track(mm)	2047
Fuel type	Diesel		Rear track(mm)	1850
Emission standard	Euro III		Transmission	10 forward gear
Cabin	Luxury interior and Instrument bar, with air conditioning and sleeper.
Engine model	Engine manufacutre	Displacement(ml)		Power(kw)
WD615.95E	China National Heavy Duty Truck G roup Co., Ltd.	9726		247
Concrete mixer truck performance
Tank volume(cbm)	10	Material of tank		Q345
Pump	Import	Motor		Import
Reducer	Import	Surplus ratio		less than 1.0 percentage
Water tank volume(L)	350L	The supplied water method		Pneumatic
Concrete mixer truck features
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site.
