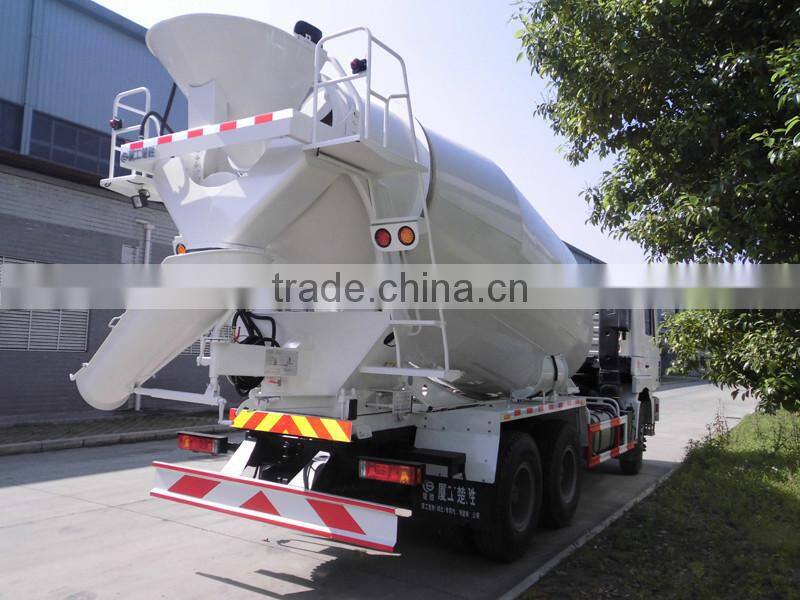

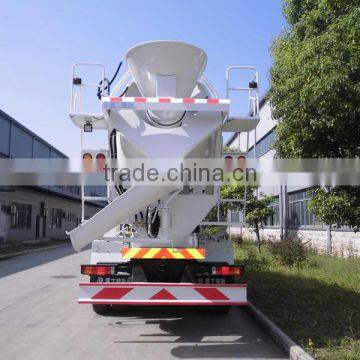

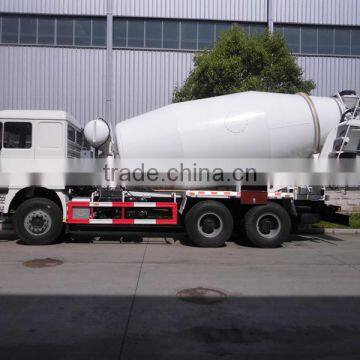

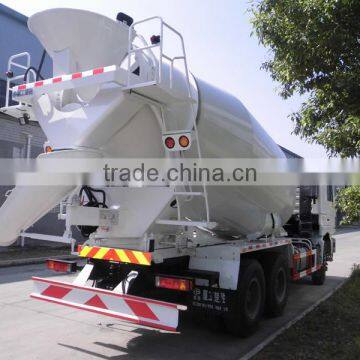

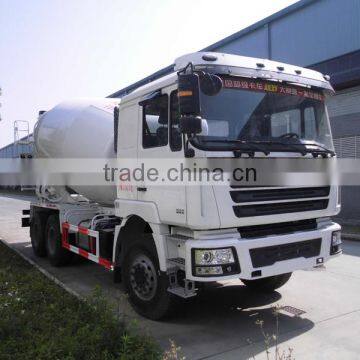

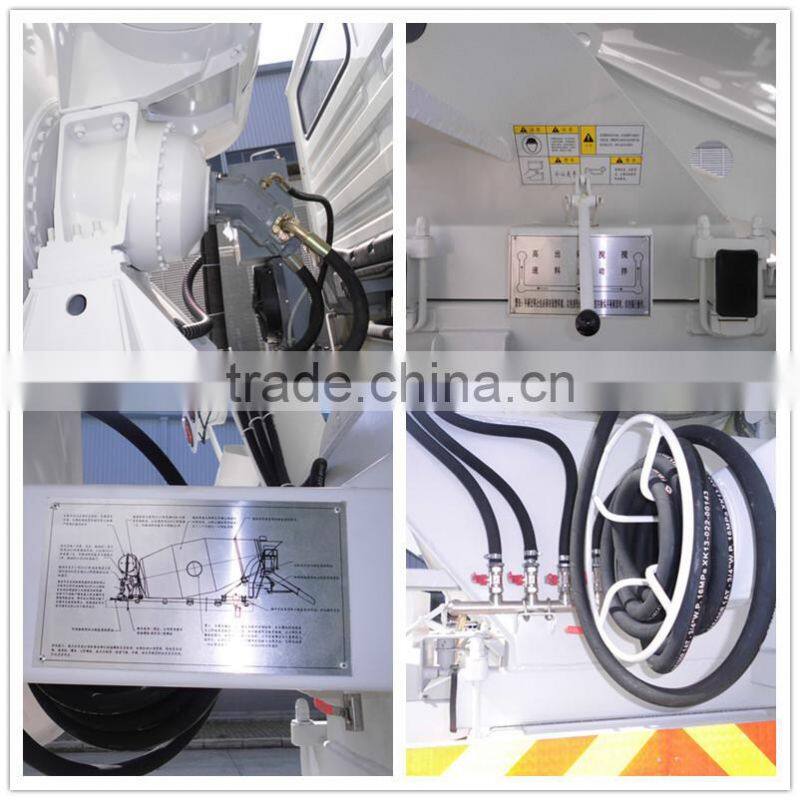

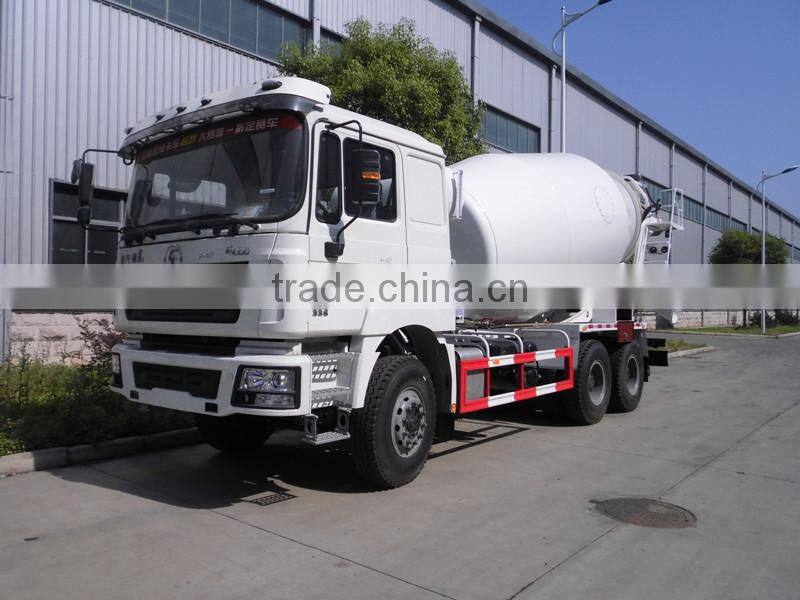

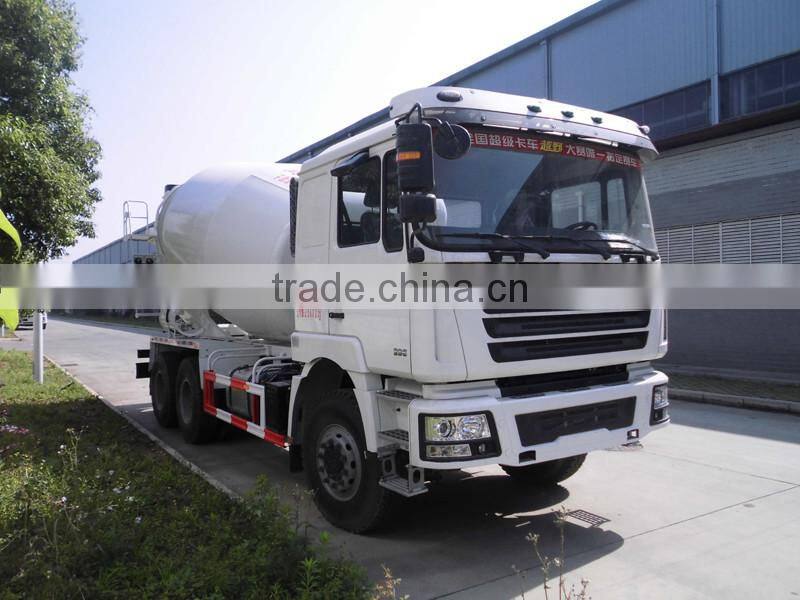

SHACMAN 10 m3 Concrete Mixer
Main specifications | ||||
Product model,name | SX5255GJBDR384 Concrete mixer truck | |||
Gross weight(Kg) | 25000 | Drive type | 6 x 4 | |
Payload(Kg) | 11700 | Overall demension(mm) | 9135×2490×3810 | |
Curb weight(Kg) | 13170 | Cab seats(man) | 2 | |
Approach/departure angle(°) | 20/18 | Front/rear hang(mm) | 1525/2460 | |
Number of axles | 3 | Wheelbase(mm) | 3800+1350 | |
Axle load(Kg) | 7000/18000 | Max speed(Km/h) | 77 | |
Chassis specifications | ||||
Chassis model | SX5255GJBDR384 | Manufacture | Shaanxi Automobile Group Co., Ltd. | |
Brand name | SHACMAN | Overall dimension(mm) | 8450×2490×3250 | |
Tire specification | 12.00R20 | Tires No. | 10 | |
Steel spring number | 9/12,10/12 | Front track(mm) | 1939 | |
Fuel type | Diesel | Rear track(mm) | 1850 | |
Emission standard | Euro 3 | Transmission | 9 forward gear | |
Cabin | Luxury interior and Instrument bar, with air conditioning and sleeper. | |||
Engine model | Engine manufacutre | Displacement(ml) | Power(kw) | |
WP10.340E32 | Weichai Power Co., Ltd | 9726 | 250 | |
Concrete mixer truck performance | ||||
Tank volume(m3) | 10 | Material of tank | Q345 | |
Pump | Import | Motor | Import | |
Reducer | Import | Surplus ratio | ≤1.0% | |
Water tank volume(L) | 350L | The supplied water method | Pneumatic | |
Concrete mixer truck features | ||||
This is mainly used for the modern roads and major construction projects, which is for ensure the quality of the concrete poured by stirring the concrete slowly and continuously during transporting or one the construction site. | ||||
Production equipment introduction
3.Quality
The above goods shall be in accordance with the Manufacturer’s standards and Chinese export standards.
4.TIME OF DELIVERY
Within 15-20 working days from the receipt date of deposit payment.
5.GUARANTEE PERIOD
The guarantee period for all equipment/accessories and spare parts shall be valid 12 months from Shipment date or 25000klm.
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
Tracy Tian
International Sale
Skype:chengli.truck
Mobile:+86-13886861936
TEL: +86 0722 3819709
FAX: +86 0722 3819809
Hubei Chengli Ocean Auto Sales Co., Ltd
Capital of Special Purpose Vehicles, Suizhou City, Hubei Province, China
